Disassembly And Assembly: Notes

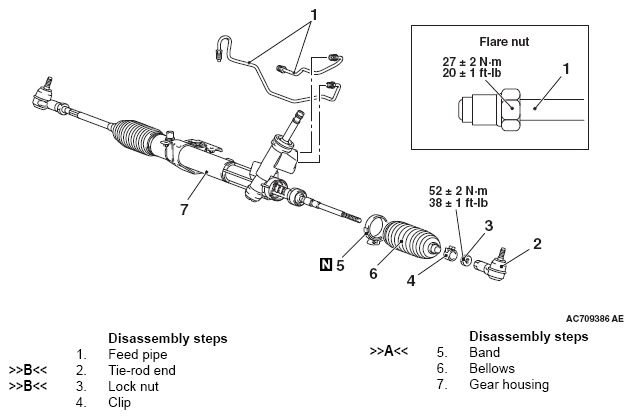

Fig 1: Feed Pipe, Tie-Rod End, Lock Nut, Clip, Band, Bellows And Gear Housing With Torque Specifications
G05905068Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
