Removal And Installation: Notes

CAUTION:

Before removing the steering wheel, driver's air bag module assembly and Knee Air Bag Module refer to SERVICE PRECAUTIONS , DRIVER'S AIR BAG MODULE AND CLOCK SPRING or DRIVER'S AIR BAG MODULE AND CLOCK SPRING <RALLIART> and KNEE AIR BAG MODULE .
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION ). <Vehicles with ASC>

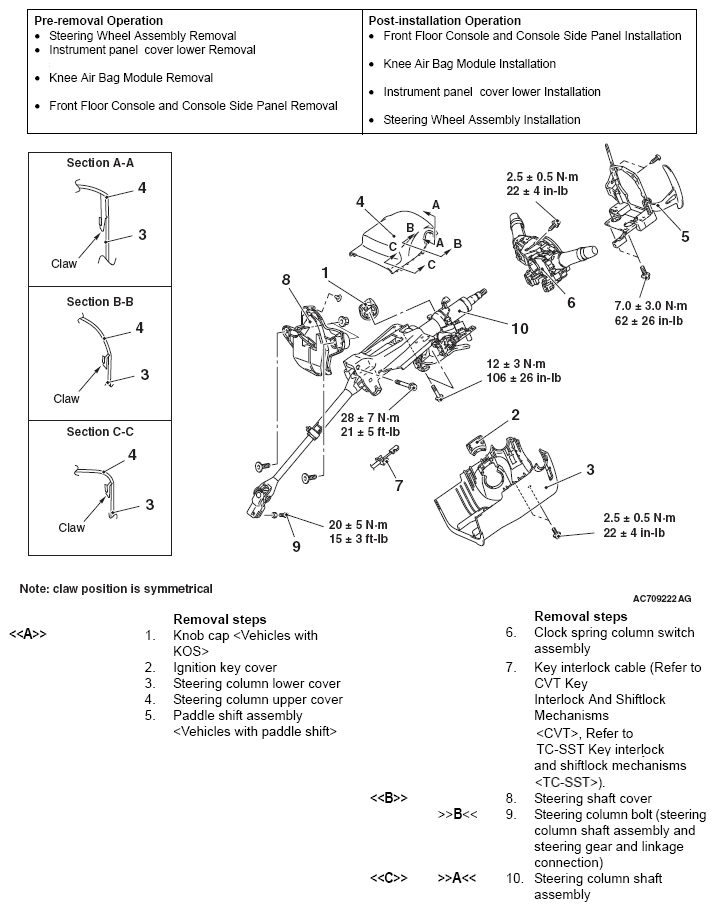

Fig 1: Steering Column Shaft Assembly Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
