Disassembly And Assembly: Notes

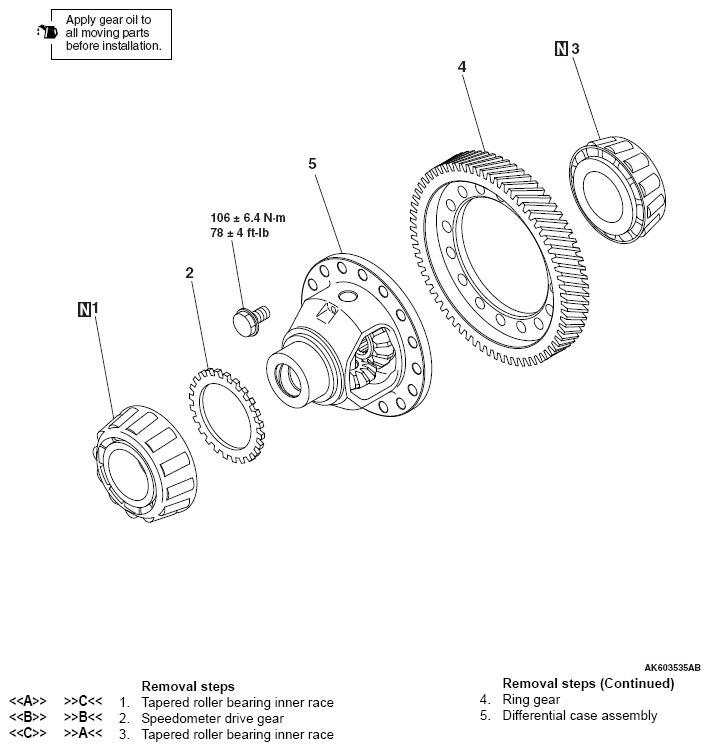

Fig 1: Exploded View Of Differential With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998917: Bearing remover
• MB991395: Crankshaft front oil seal installer
• MB990810: Side bearing puller
• MD999566: Craw
• MD998812: Installer cap
• MB992150: Oil seal installer
• MB990891: Rear suspension bushing base
• MB992138: Bearing installer
