Disassembly And Assembly: Notes

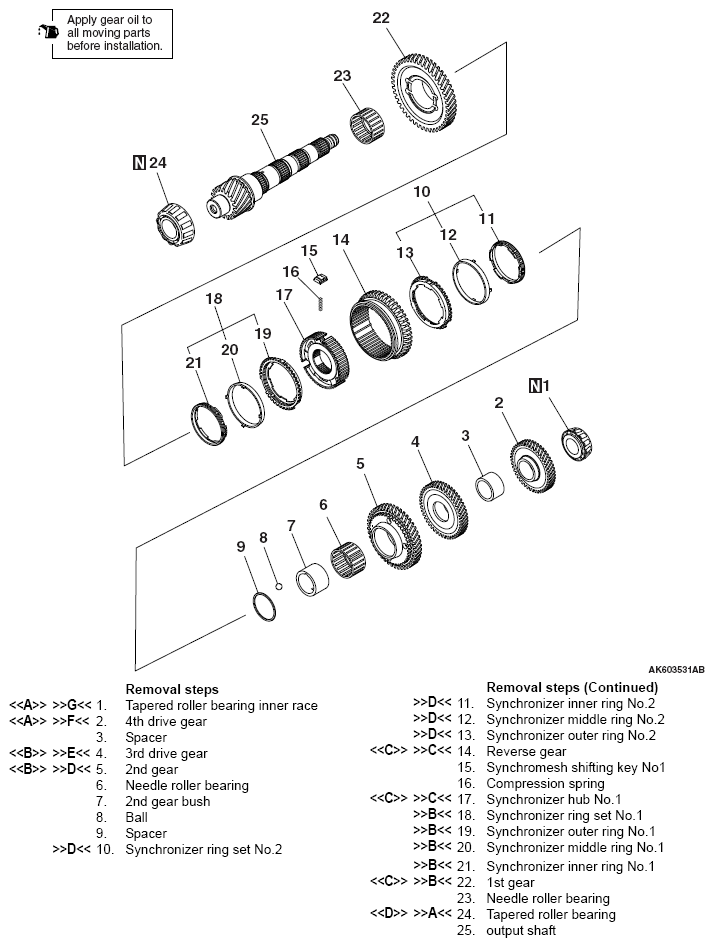

Fig 1: Exploded View Of Output Shaft
G05900814Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
