Removal And Installation: Notes

Fig 1: Identifying Windshield Remove/Install Components (1 Of 2)
G05394844Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

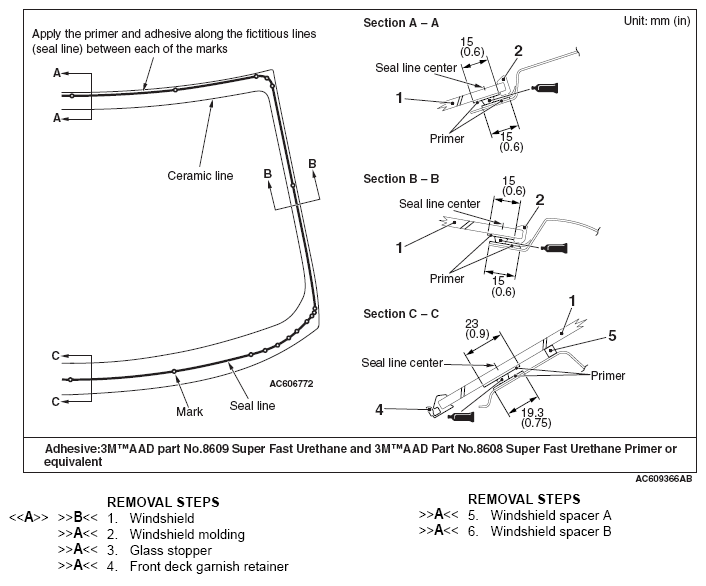

Fig 2: Identifying Windshield Remove/Install Components (2 Of 2)
G05905108Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
