Data List Reference Table
DATA LIST REFERENCE TABLECAUTION
- Driving tests always need two people: one driver and one observer.
- When shifting the selector lever to "D" range apply the brakes should be applied so that the vehicle does not move forward.
NOTE: *: After the inspection is completed, Reconnect the throttle position sensor connector, and then delete the diagnostic trouble code using scan tool MB991958. (Refer to Diagnostic Function - How to Read and Erase Diagnostic Trouble Codes) 2.0L ENGINE Non-turbo> Diagnostic Function, (Refer to Diagnostic Function - How to Read and Erase Diagnostic Trouble Codes.) [2.0L ENGINE Turbo> With Manufacturer's Scan Tool or (Refer to Diagnostic Function - How to Read and Erase Diagnostic Trouble Codes.) [2.4L ENGINE> Diagnostic Function.
Required Special Tool:
- MB991658: Test harness

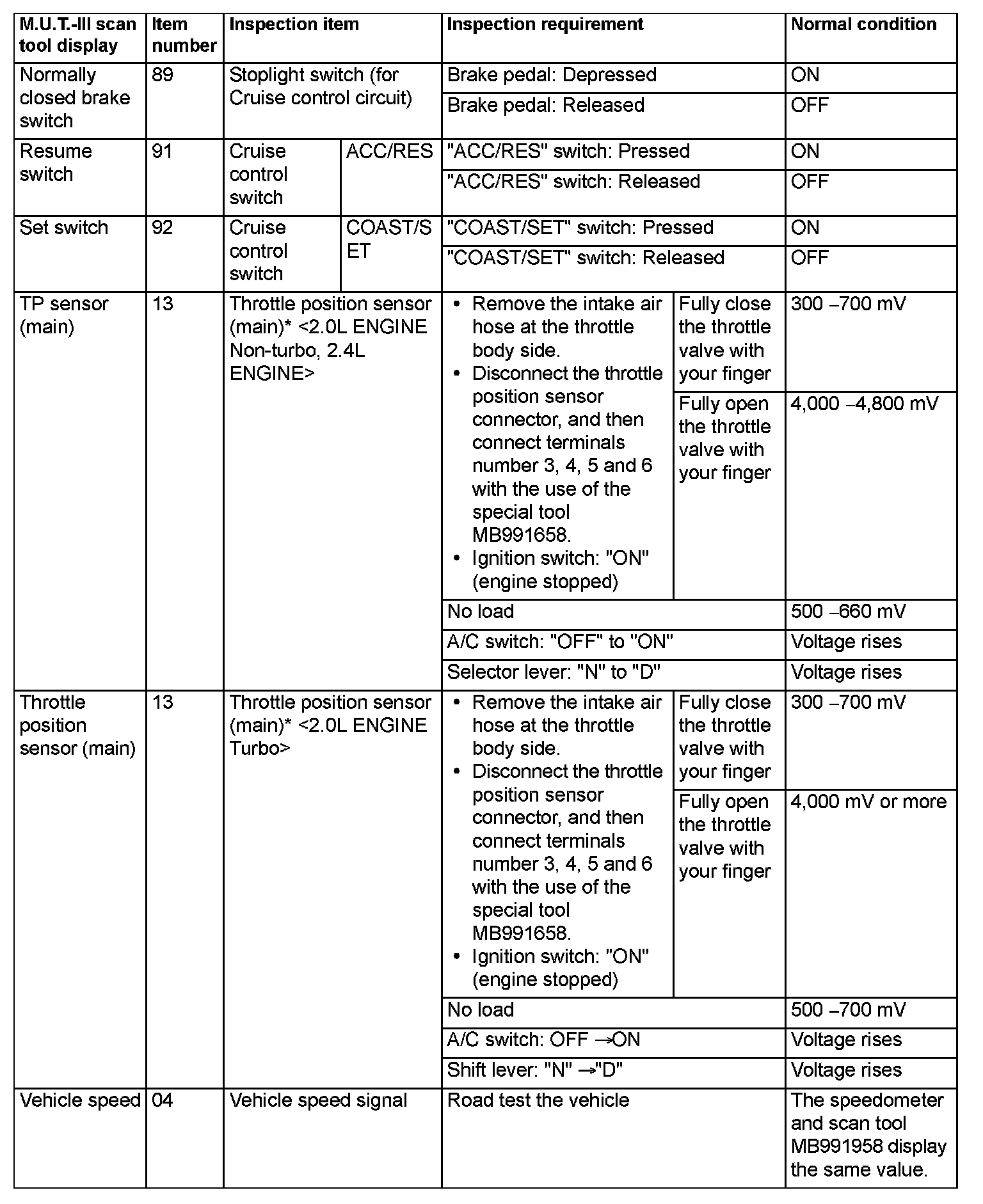

Data List Reference Table (Part 1):

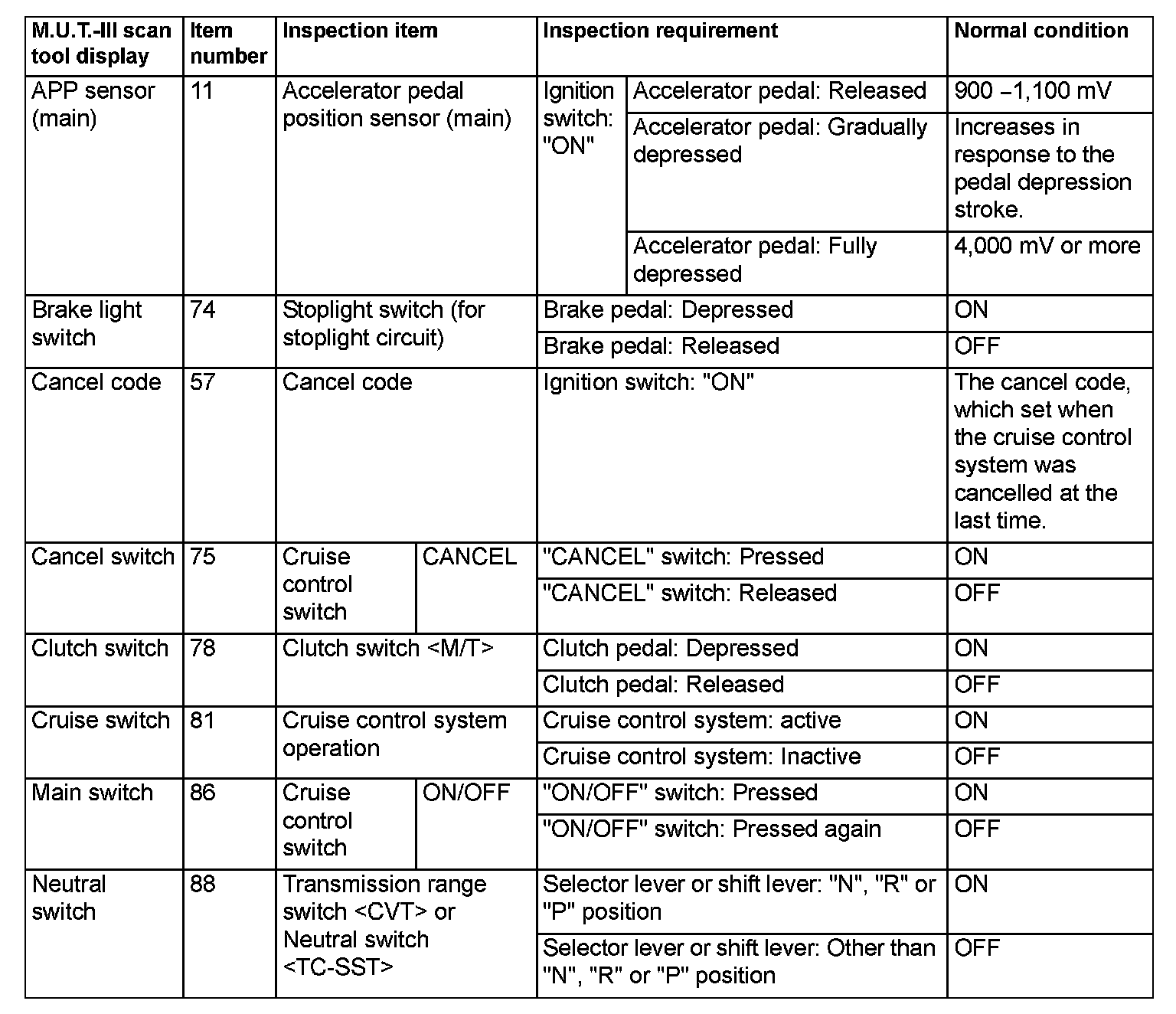

Data List Reference Table (Part 2):
