Continuously Variable Transmission/Transaxle, CVT

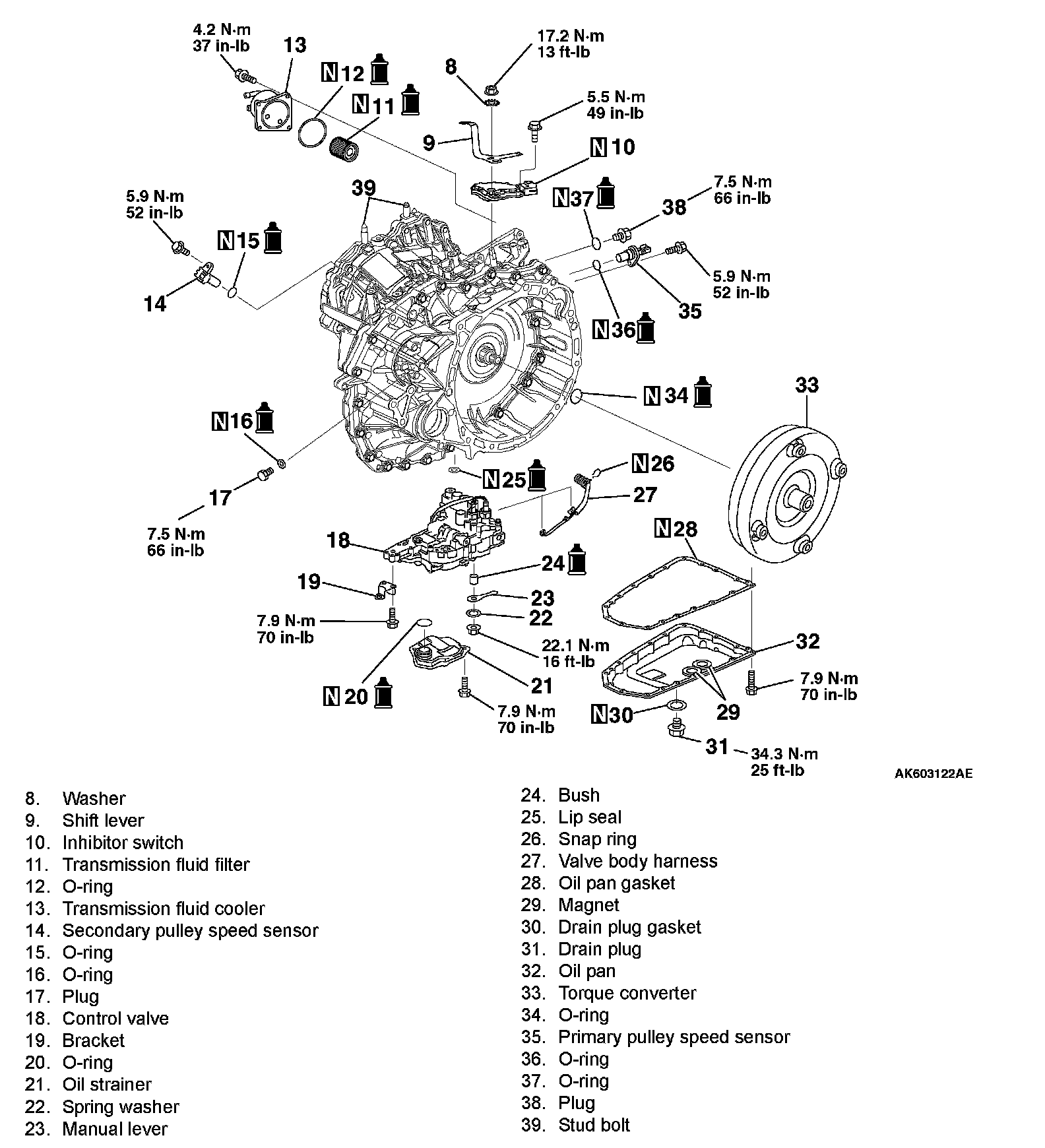

Disassembly Steps 1-7:



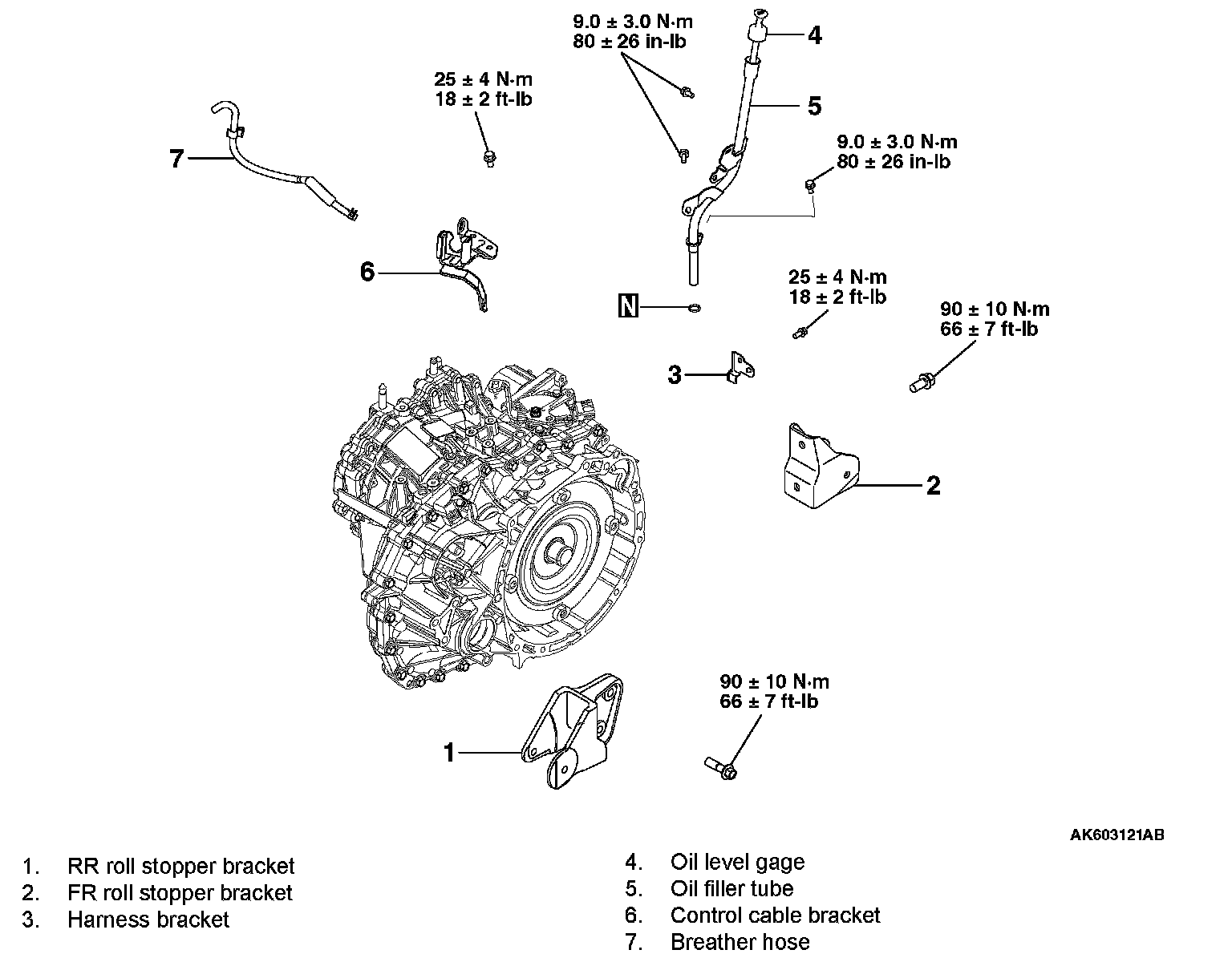

Disassembly Steps 8-39:

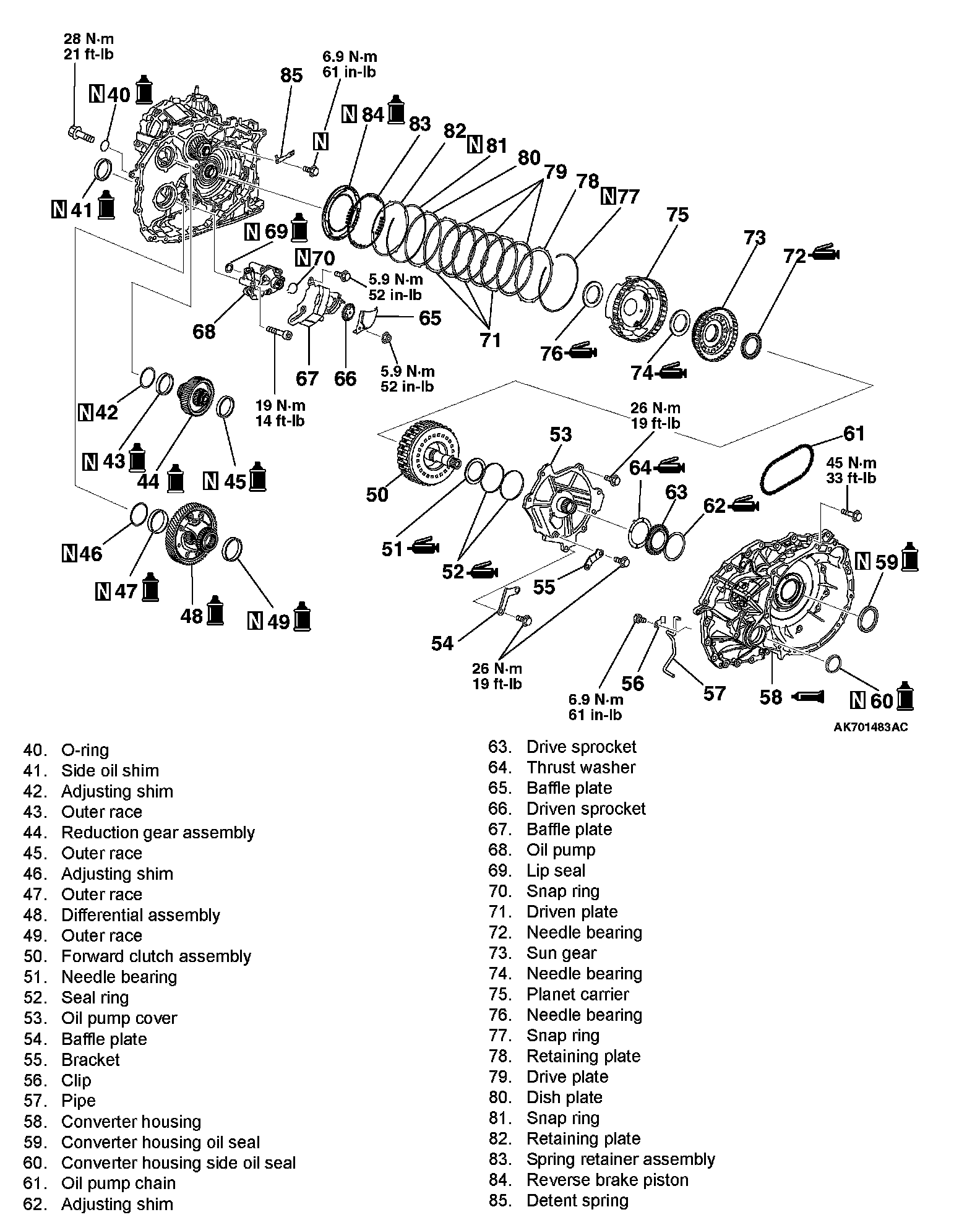

Disassembly Steps 40-85:
