Air Flow Meter/Sensor: Service and Repair

AIR CLEANER

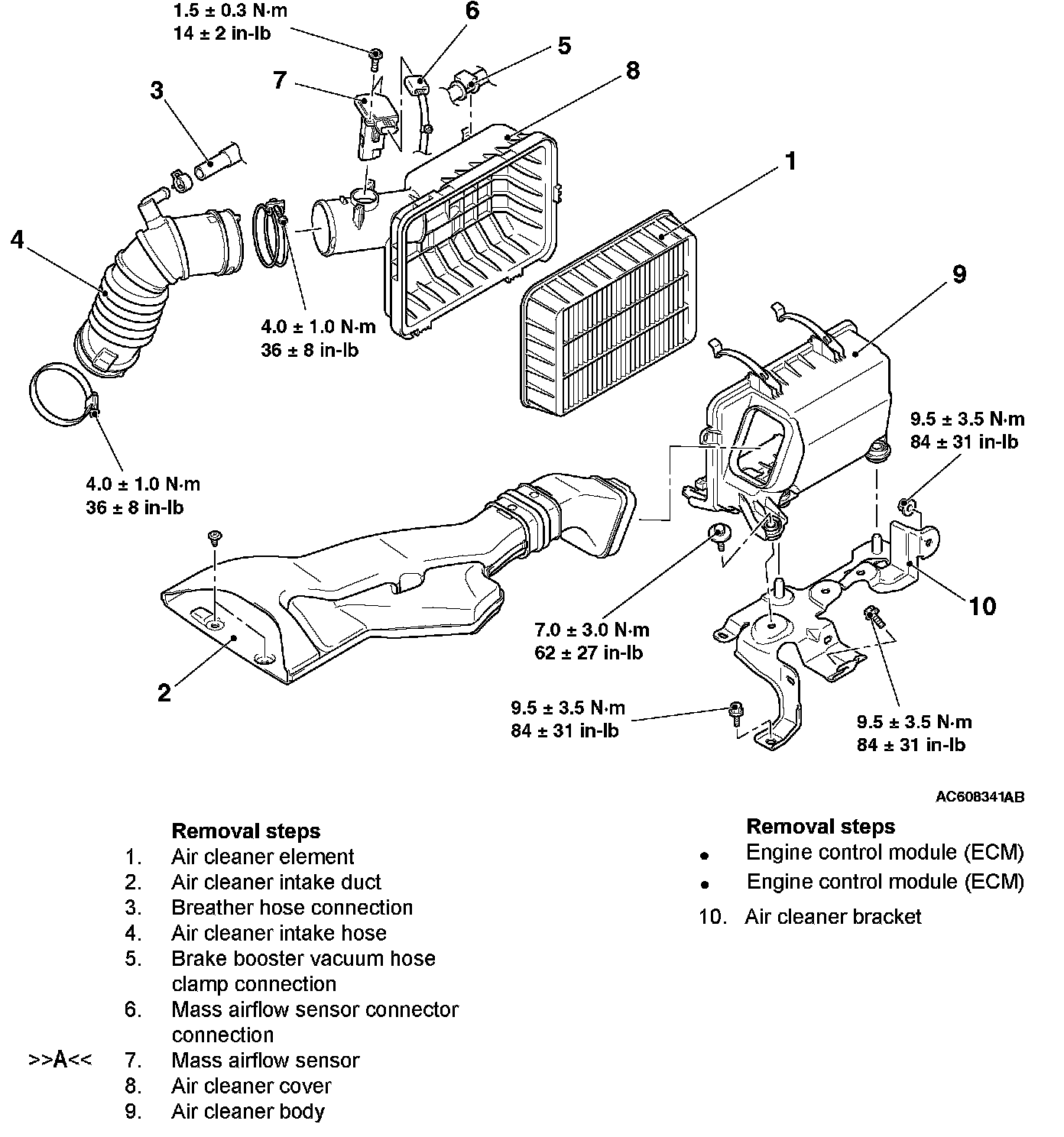

REMOVAL AND INSTALLATION [2.0L ENGINE NON-TURBO, 2.4L ENGINE]

Removal Steps 1-10:

INSTALLATION SERVICE POINT

]]A[[ MASS AIR FLOW SENSOR INSTALLATION

CAUTION: Do not over-tighten. If the mass air flow sensor mounting screw is over-tightened, the air cleaner support thread can be damaged.
