Fail-Safe Function Reference Table

FAIL-SAFE FUNCTION REFERENCE TABLE

When the main sensor malfunctions are detected by the diagnostic test mode, the vehicle is controlled by means of the following defaults.

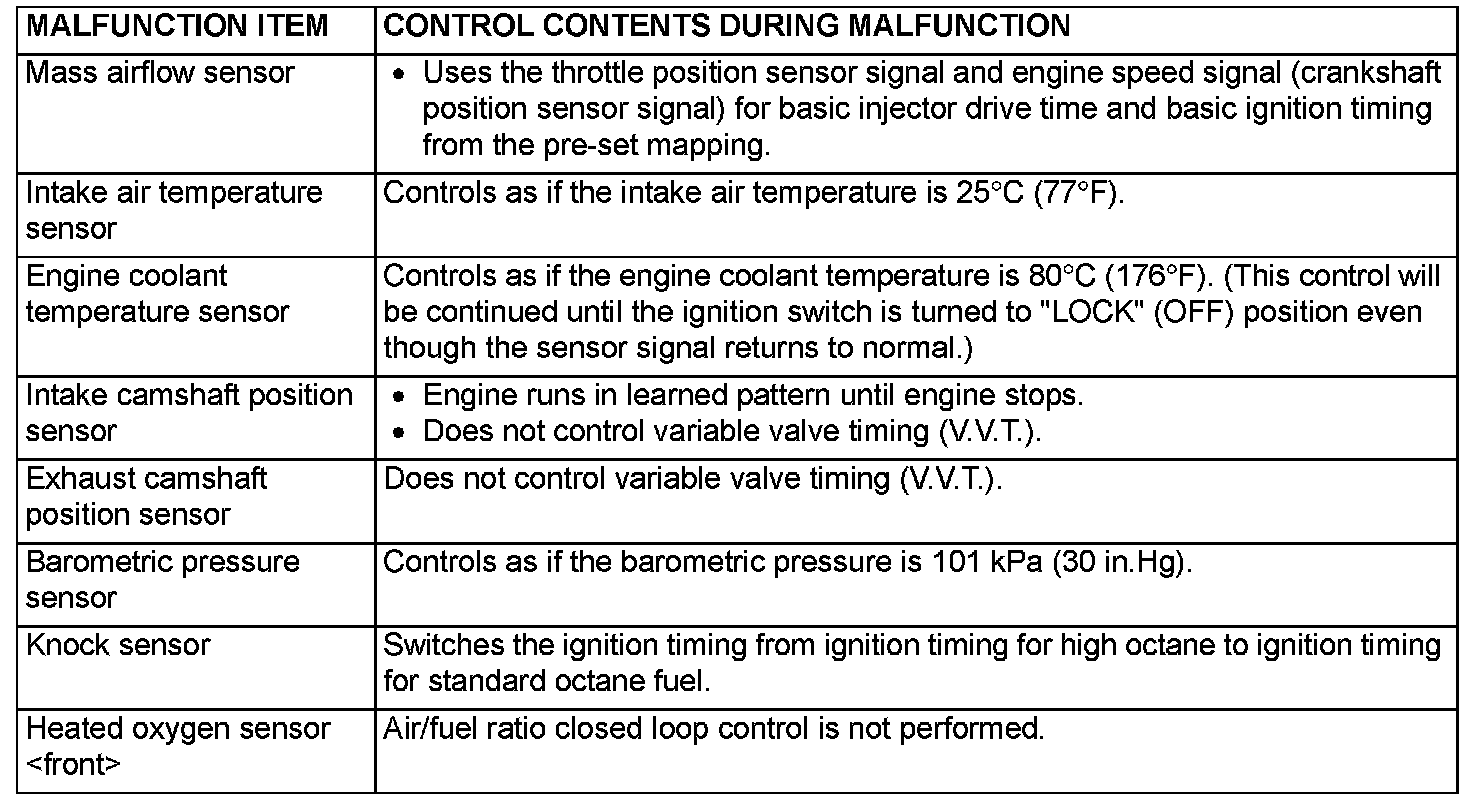

Fail-Safe Function Reference Table (Part 1):

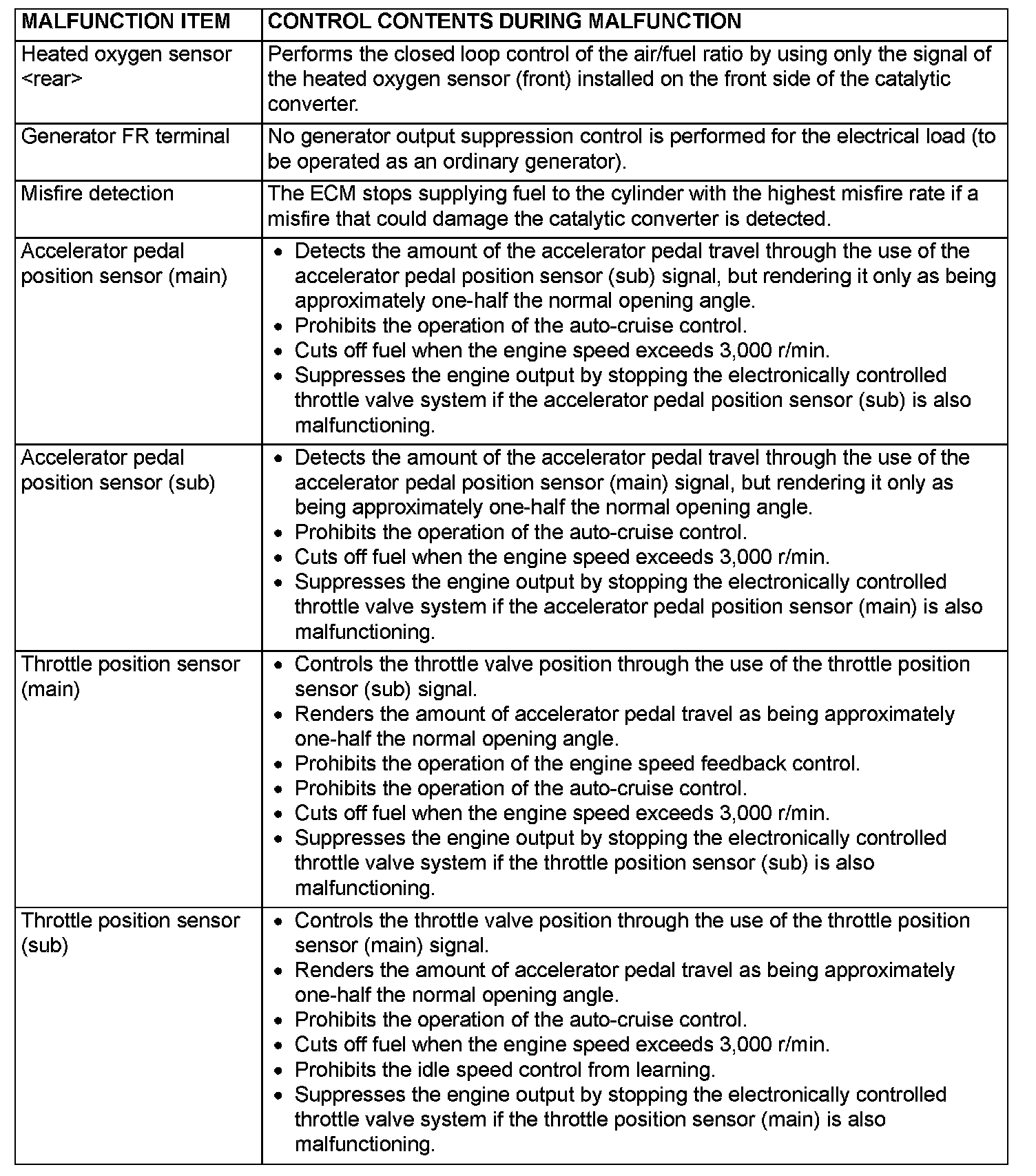

Fail-Safe Function Reference Table (Part 2):

Fail-Safe Function Reference Table (Part 3):
