Service Specifications
This document updated per manufacturer TSB# 09-23-004.

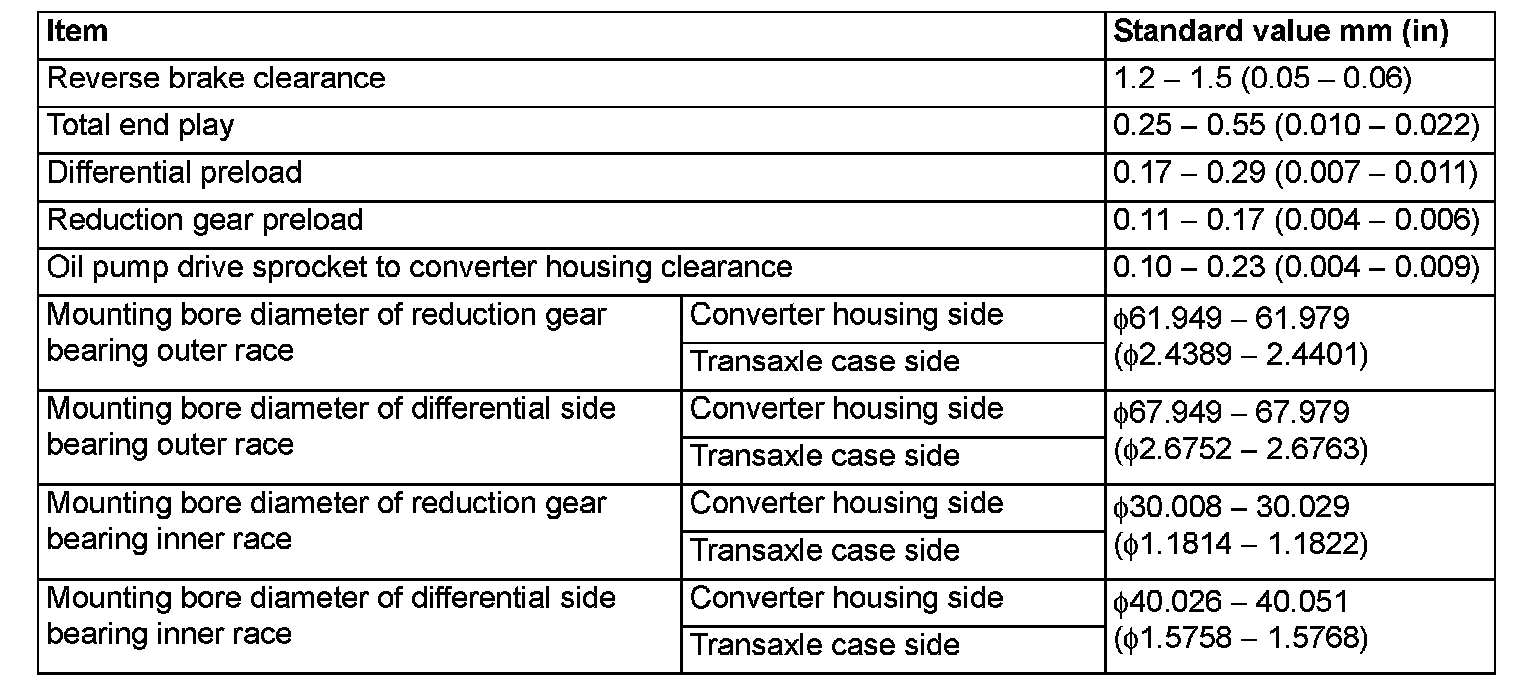

SERVICE SPECIFICATIONS
Updated For TSB-09-23-004:
