Learning Procedure For CVT Hydraulic Control

LEARNING PROCEDURE FOR CVT HYDRAULIC CONTROL

AIM
After initialization, the TCM does not have any learned value. This may degrade the shifting operation quality. The learning procedure is described below.

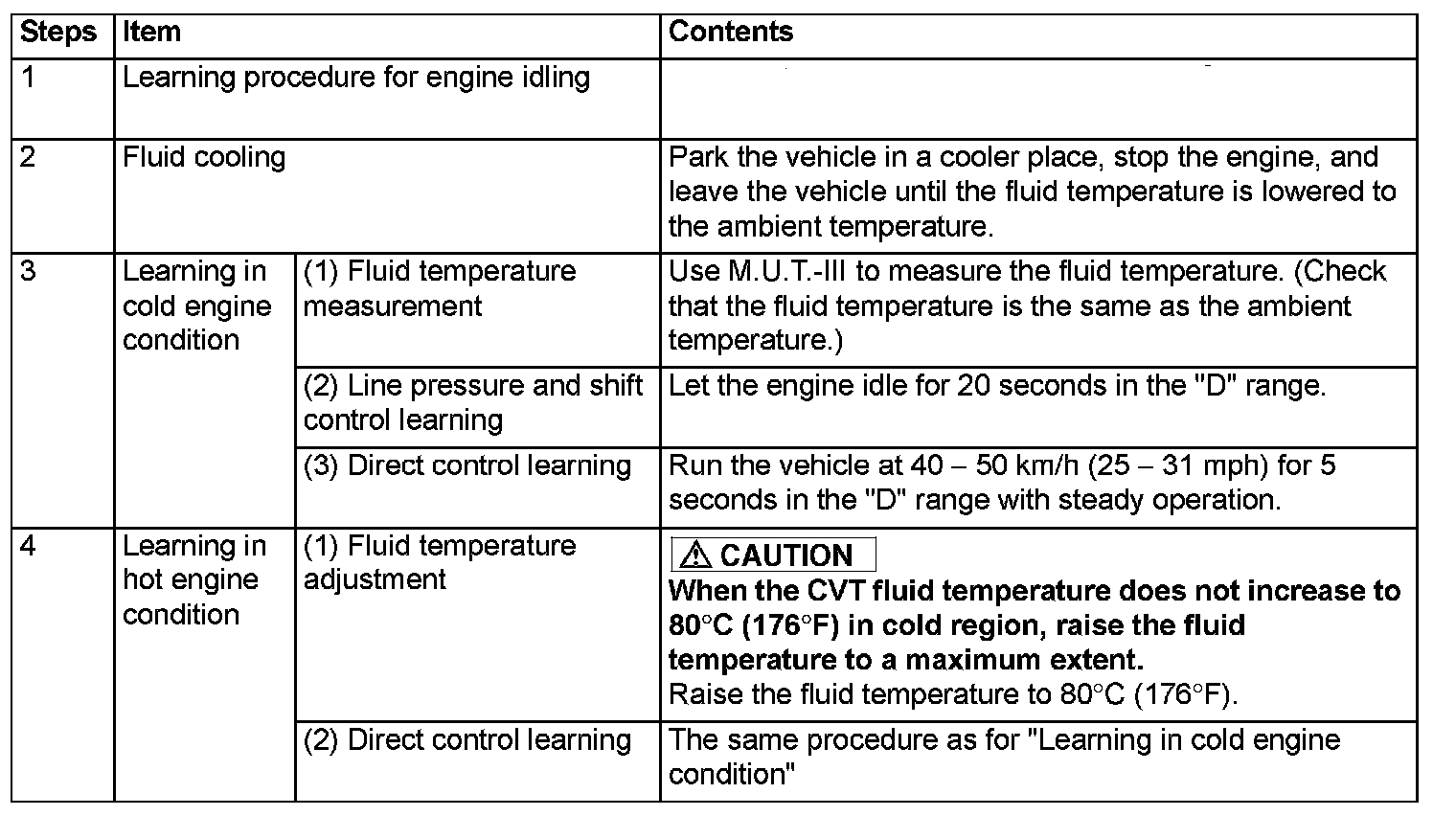

LEARNING PROCEDURES
