Removal And Installation: Notes

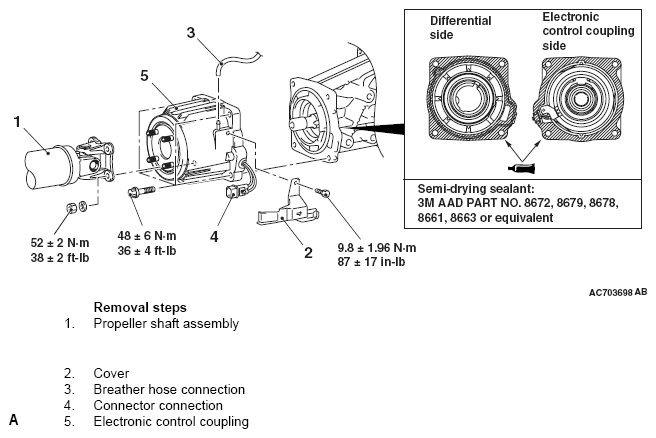

Fig 1: Electronic Control Coupling Replacement Components With Torque Specifications
G05432295Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
