DTC P1723: Abnormality In Speed Sensor System Function: Notes

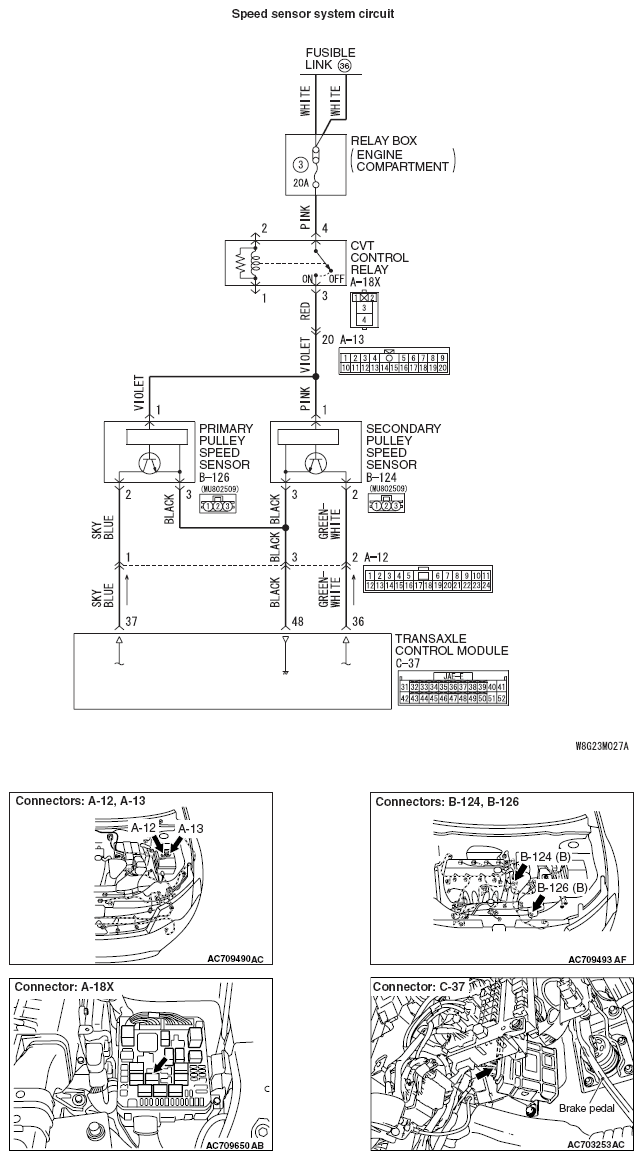

Fig 1: Speed Sensor System Circuit Diagram
G05431319Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
