OEM Component Locations: Grounding

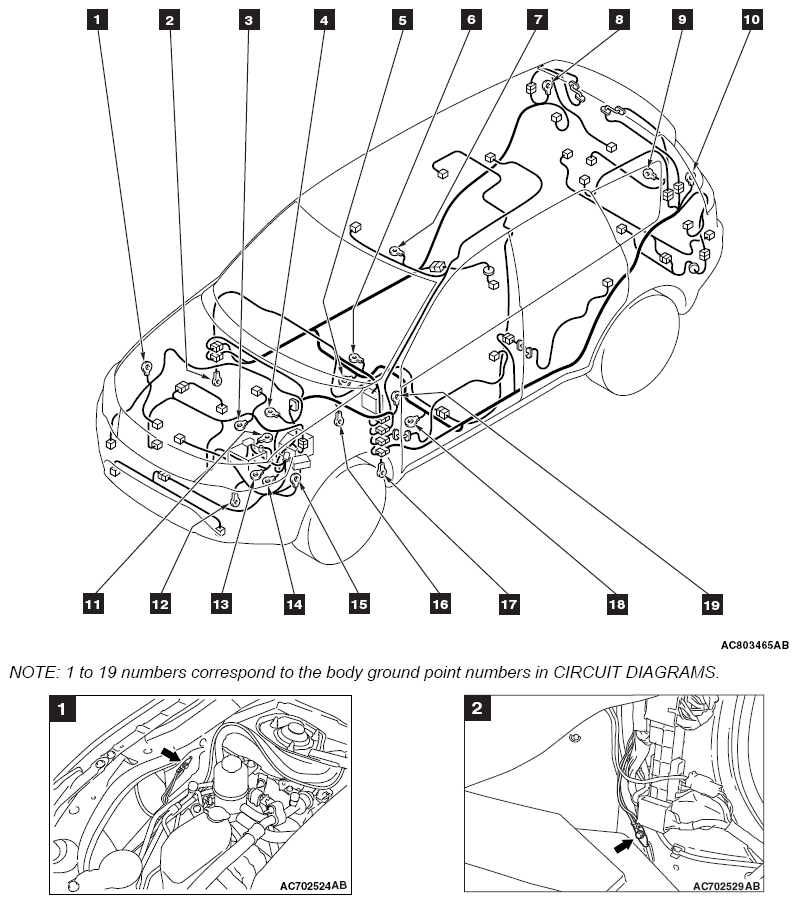

Fig 1: Wiring Harness And Ground Points Location (1 Of 3)
G07547961Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

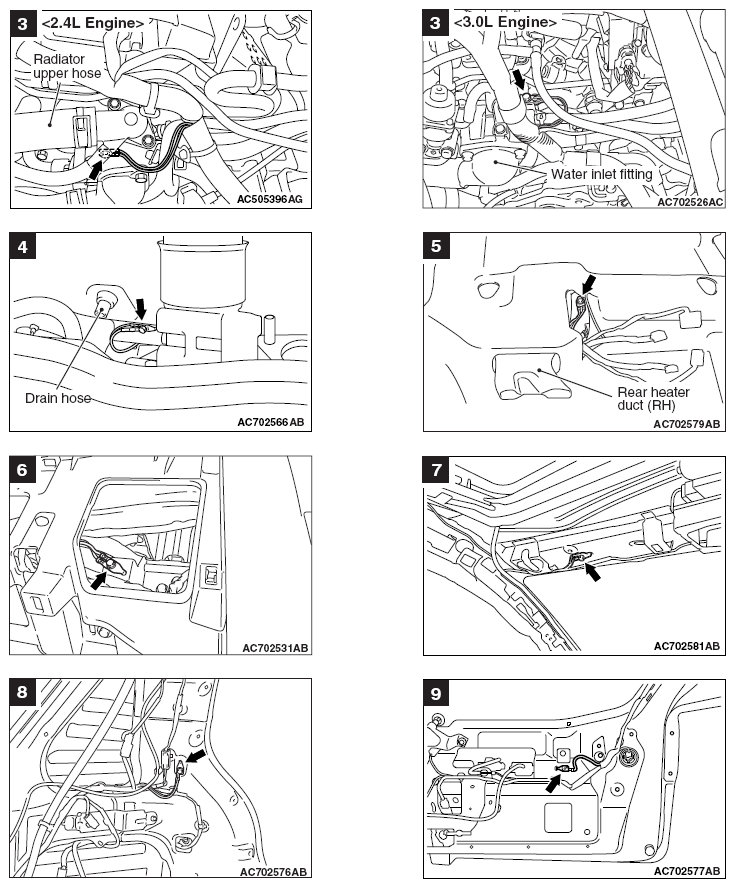

Fig 2: Wiring Harness And Ground Points Location (2 Of 3)
G07547962Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

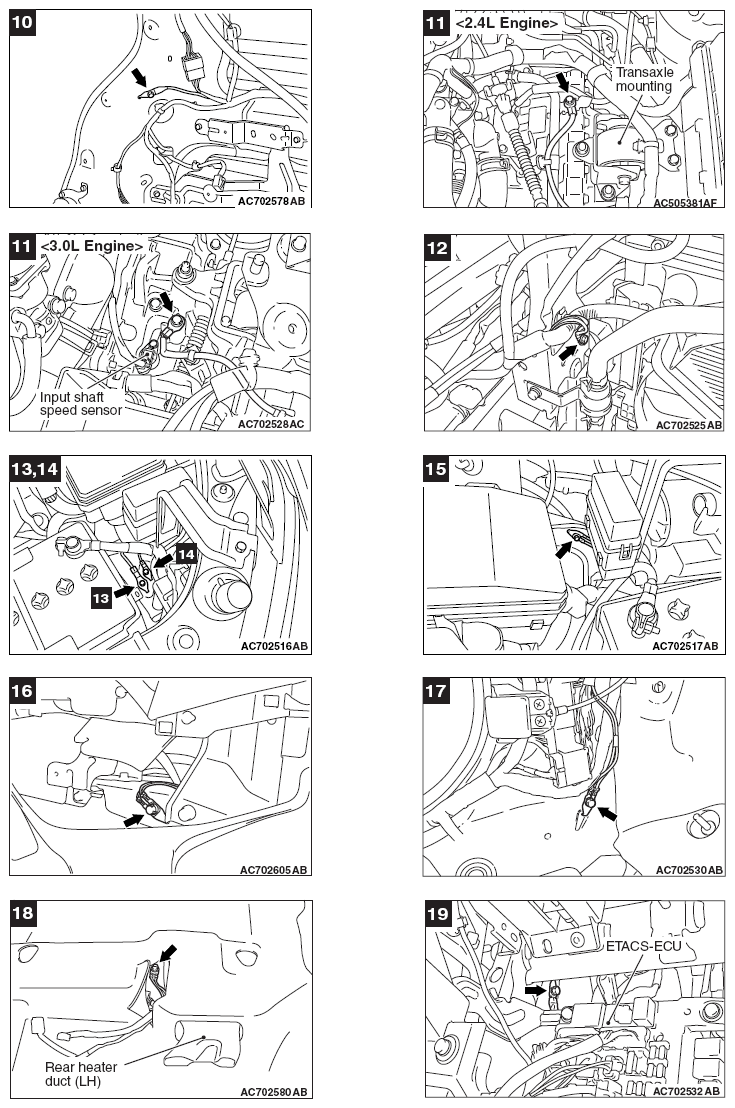

Fig 3: Wiring Harness And Ground Points Location (3 Of 3)
G07547963Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
