42RLE

GENERAL SPECIFICATIONS





GEAR RATIOS





BEARING PRELOAD (Drag Torque)





CLUTCH PACK





INPUT SHAFT





OIL PUMP CLEARANCES





GEAR TRAIN MEASUREMENTS

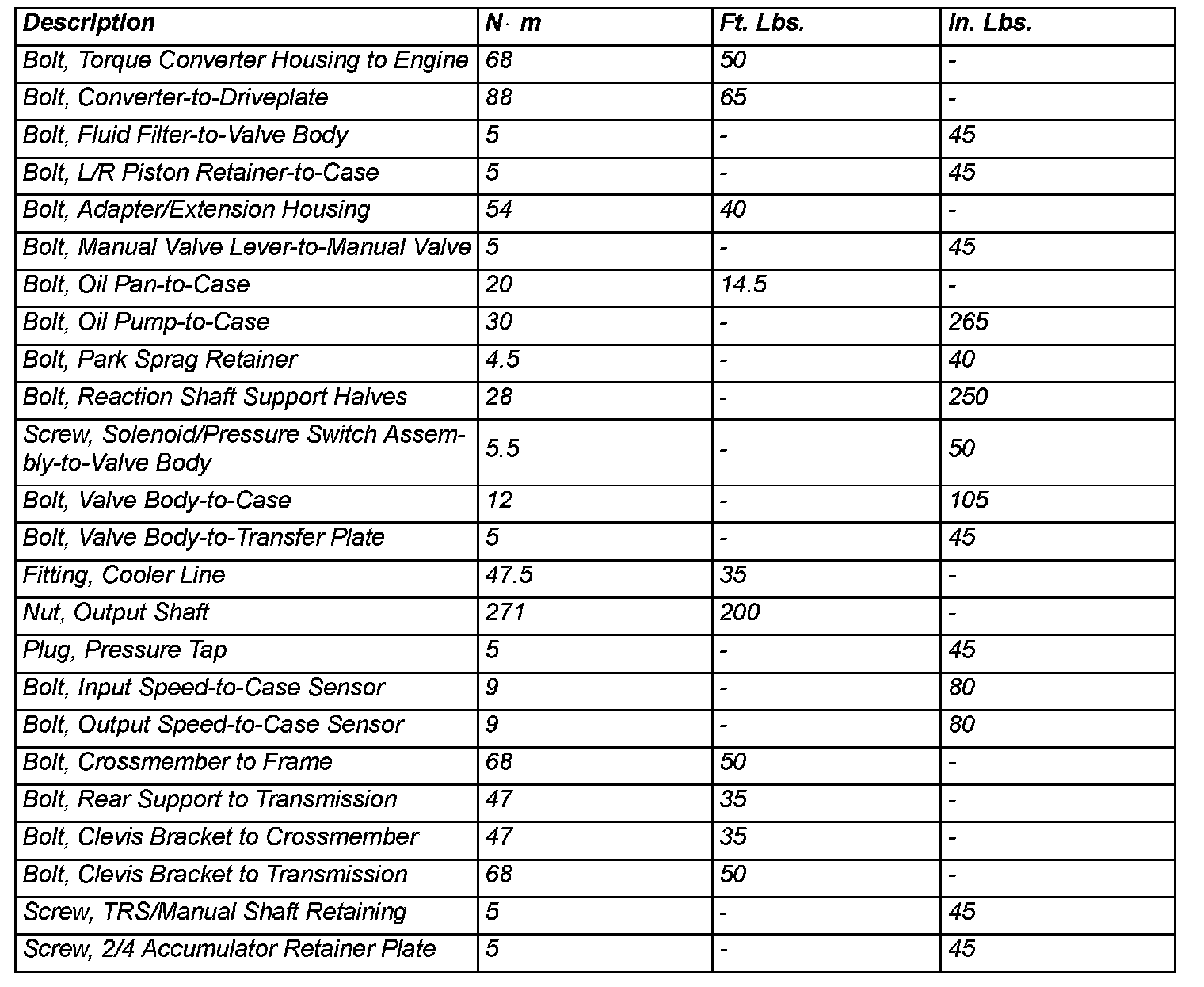

TORQUE SPECIFICATIONS
