Power Window Switch: Locations

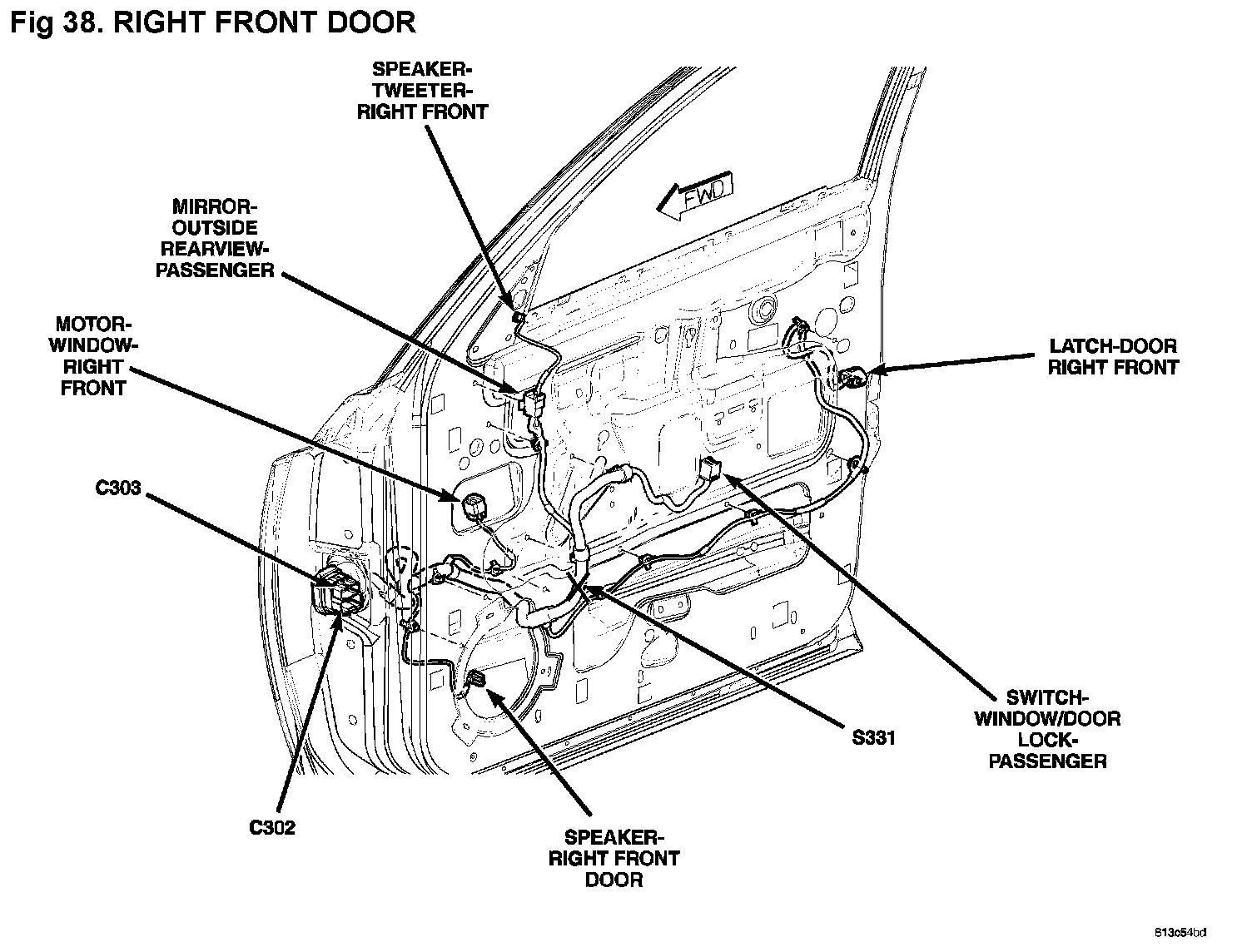

Fig. 38 Right Front Door:

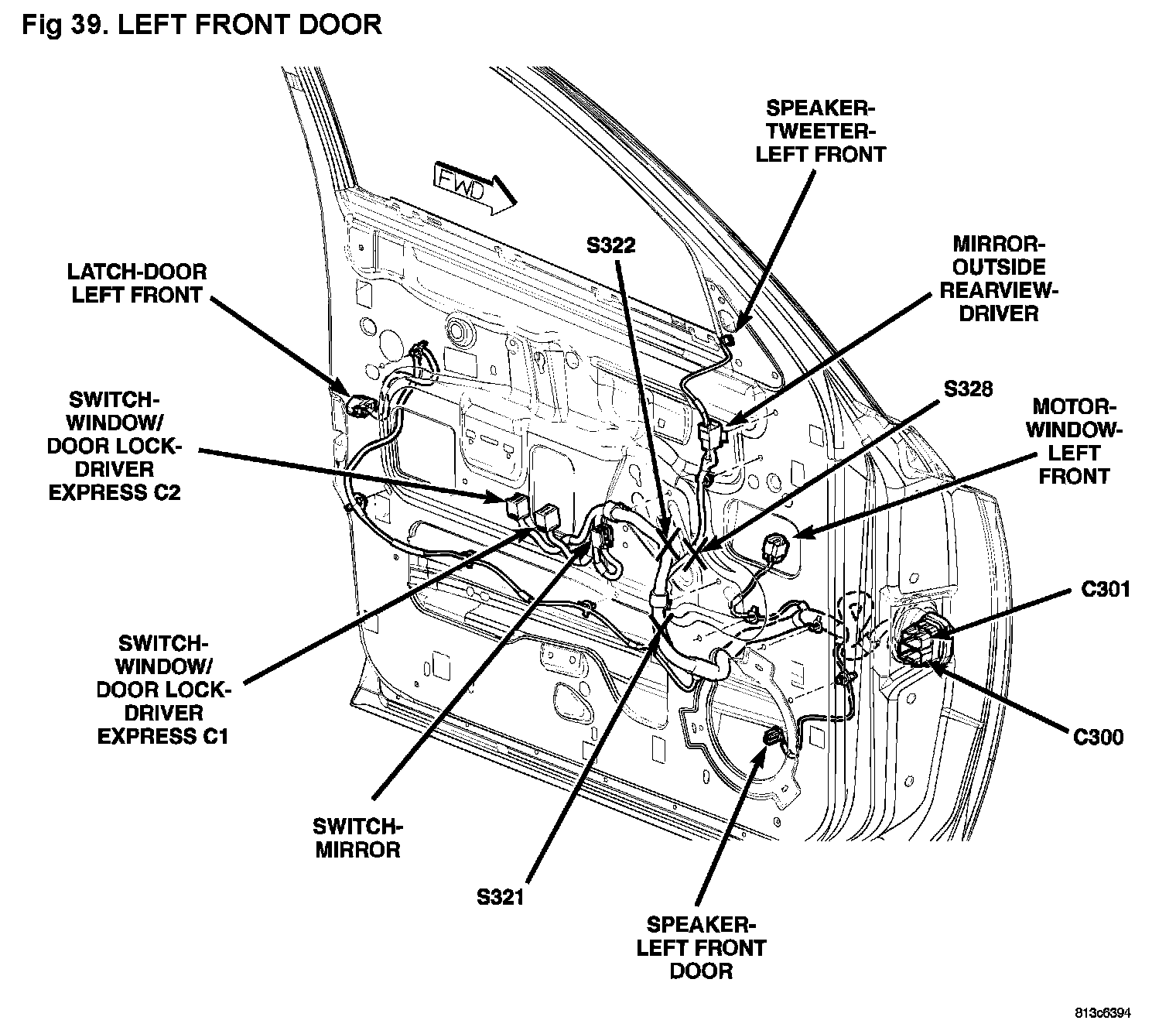

Fig. 39 Left Front Door:

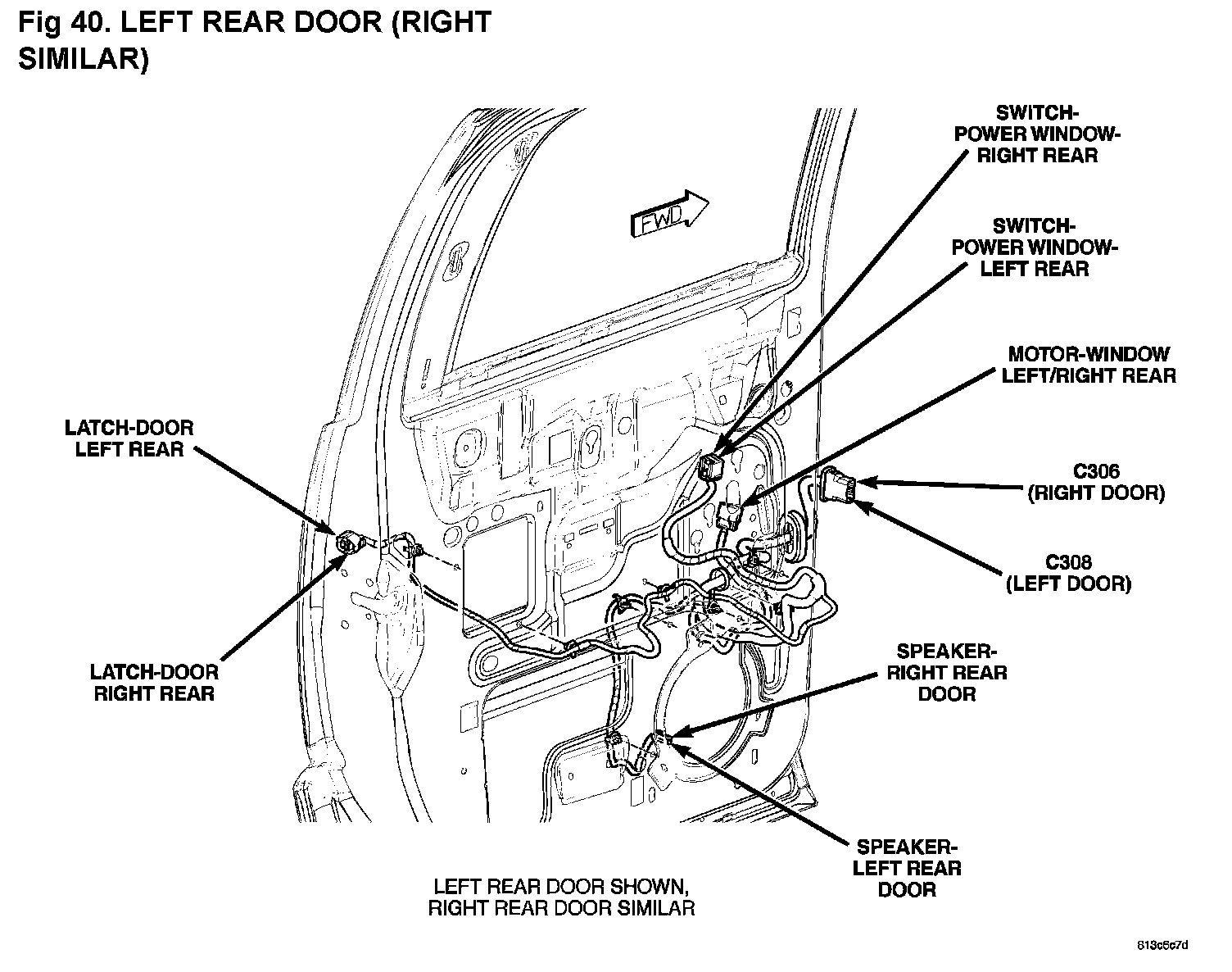

Fig. 40 Left Rear Door (Right Similar):
