Data List Reference Table [Eclipse Spyder]

DATA LIST REFERENCE TABLE

The following items can be read by the scan tool from the convertible top control module input data.

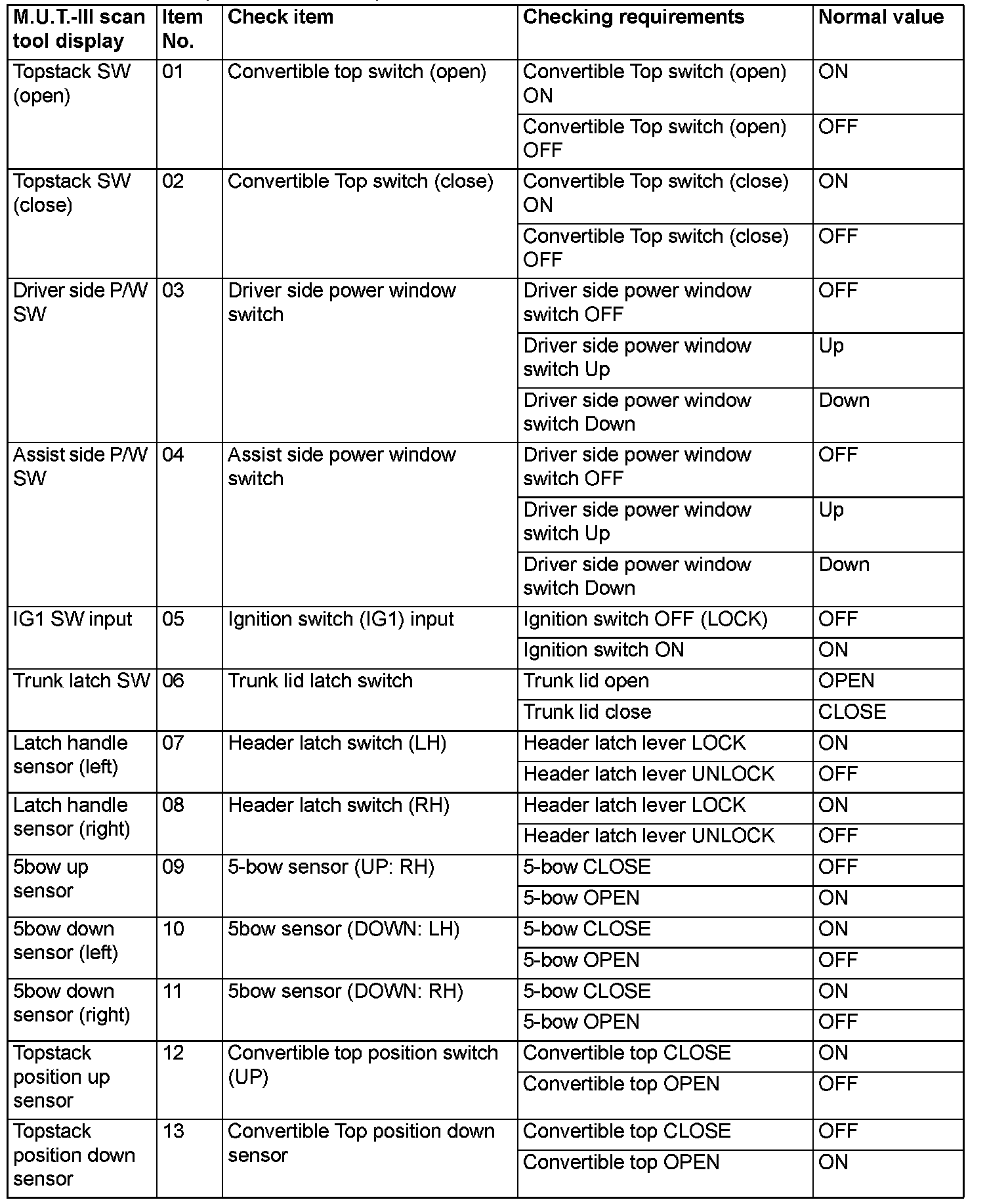

Data List Reference Table (Part 1):

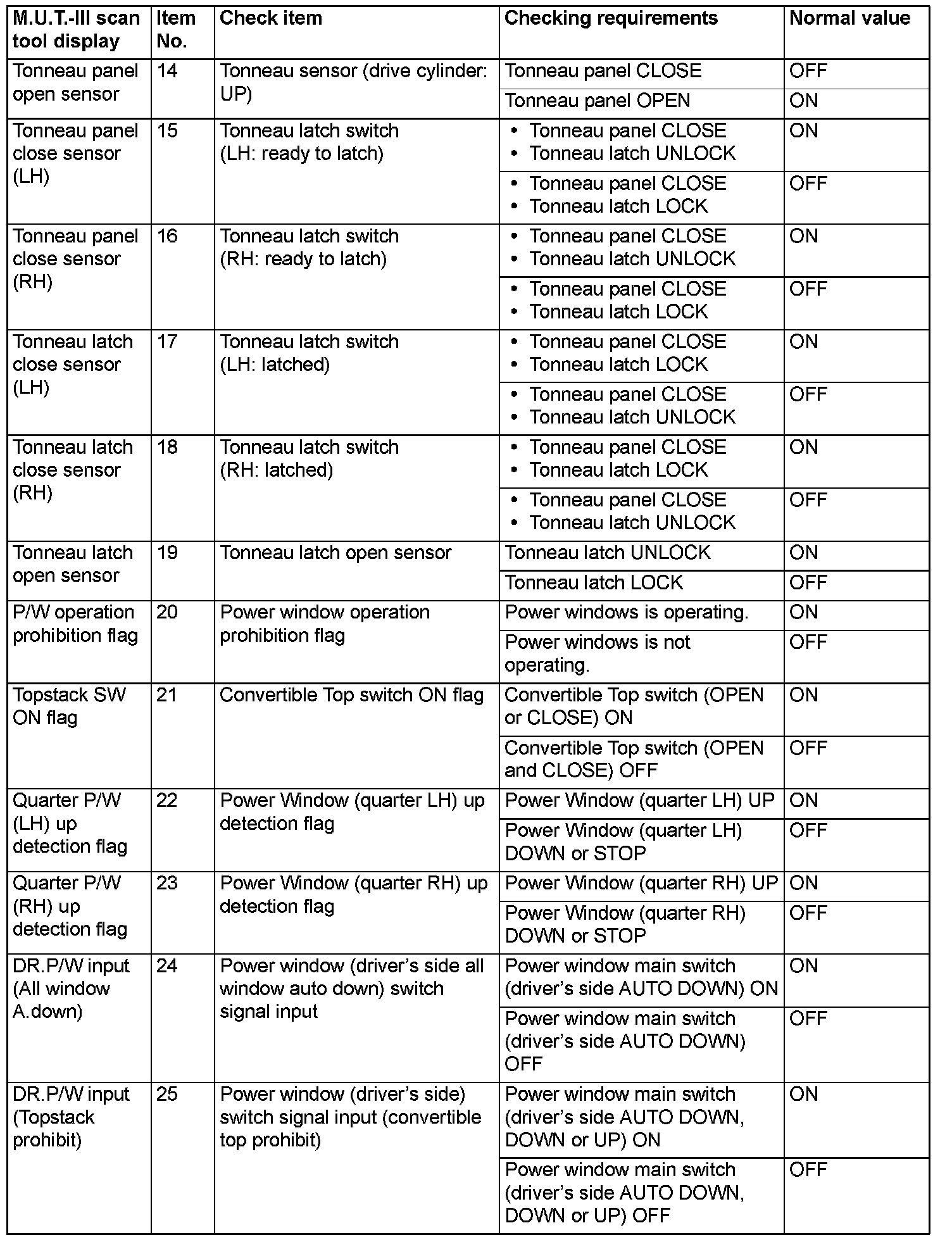

Data List Reference Table (Part 2):

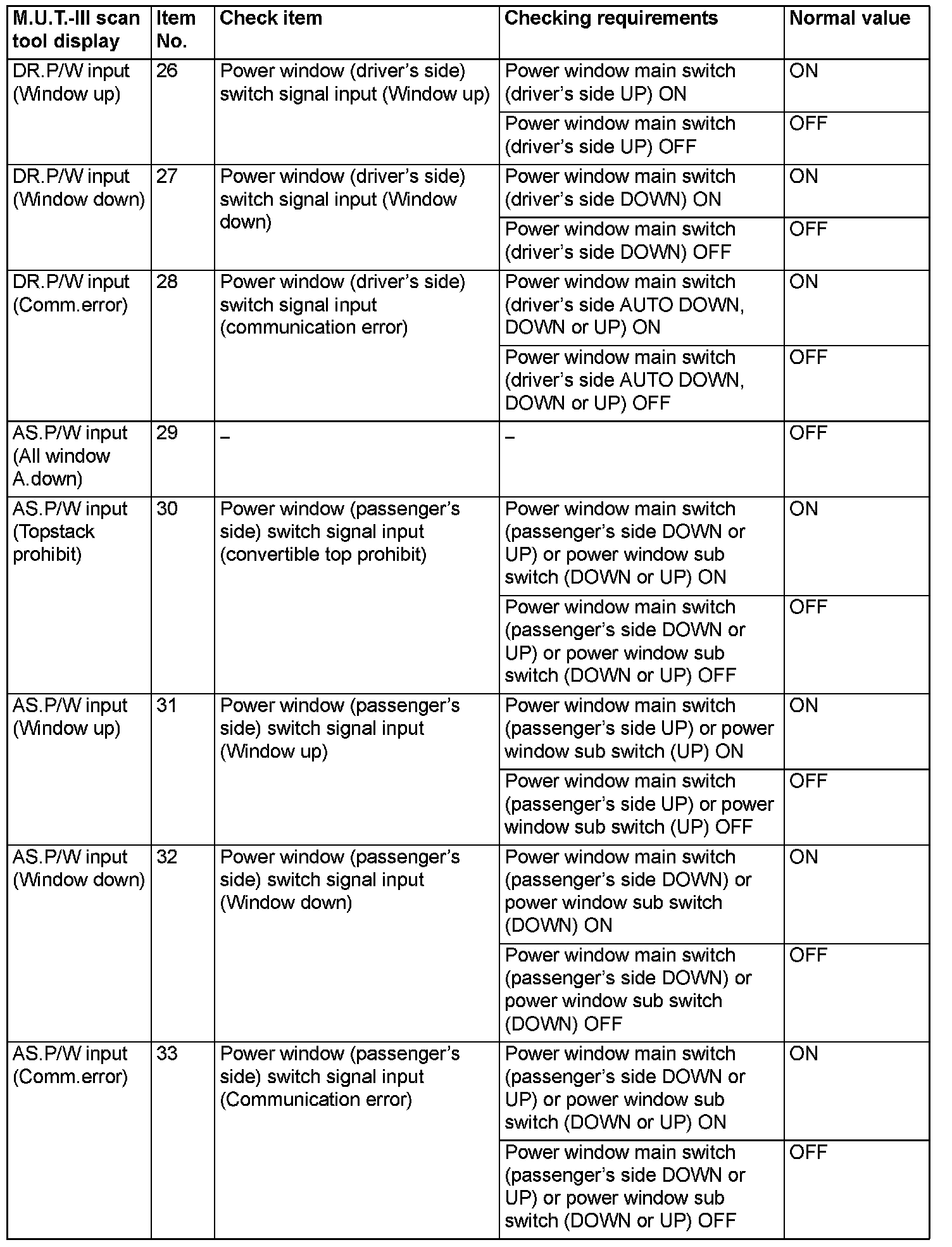

Data List Reference Table (Part 3):

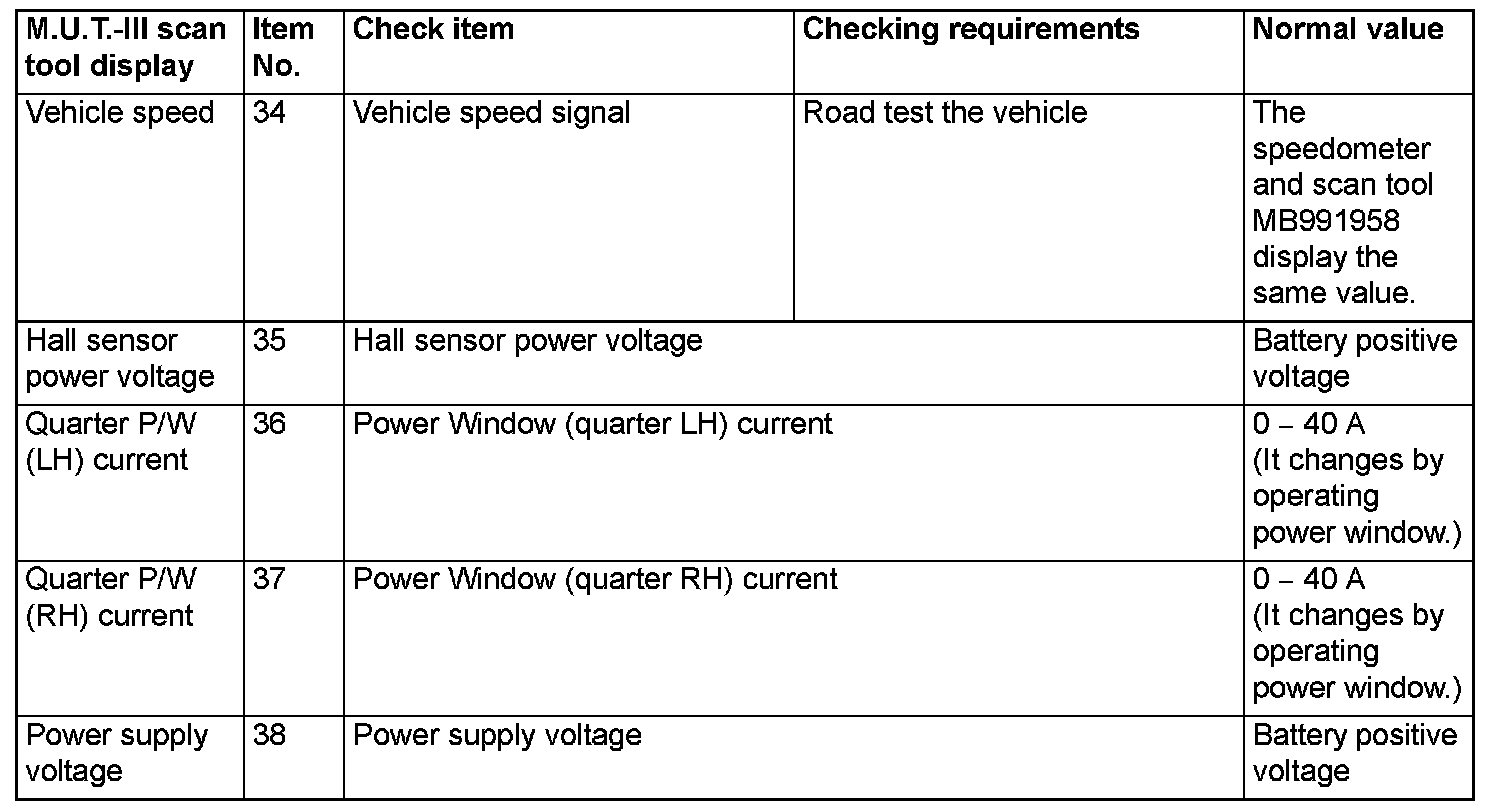

Data List Reference Table (Part 4):
