Freeze Frame Data

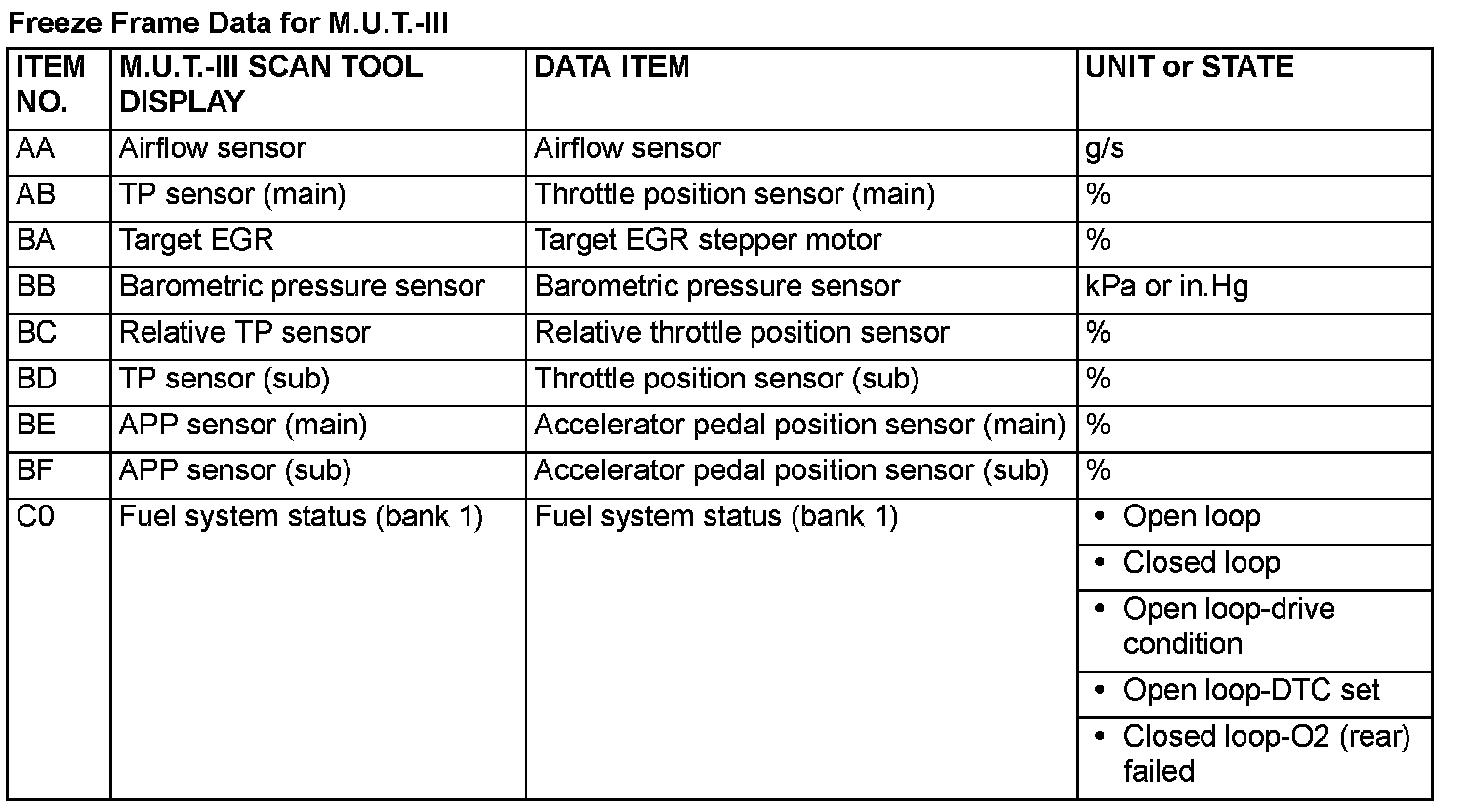

Freeze Frame Data For M.U.T.-III

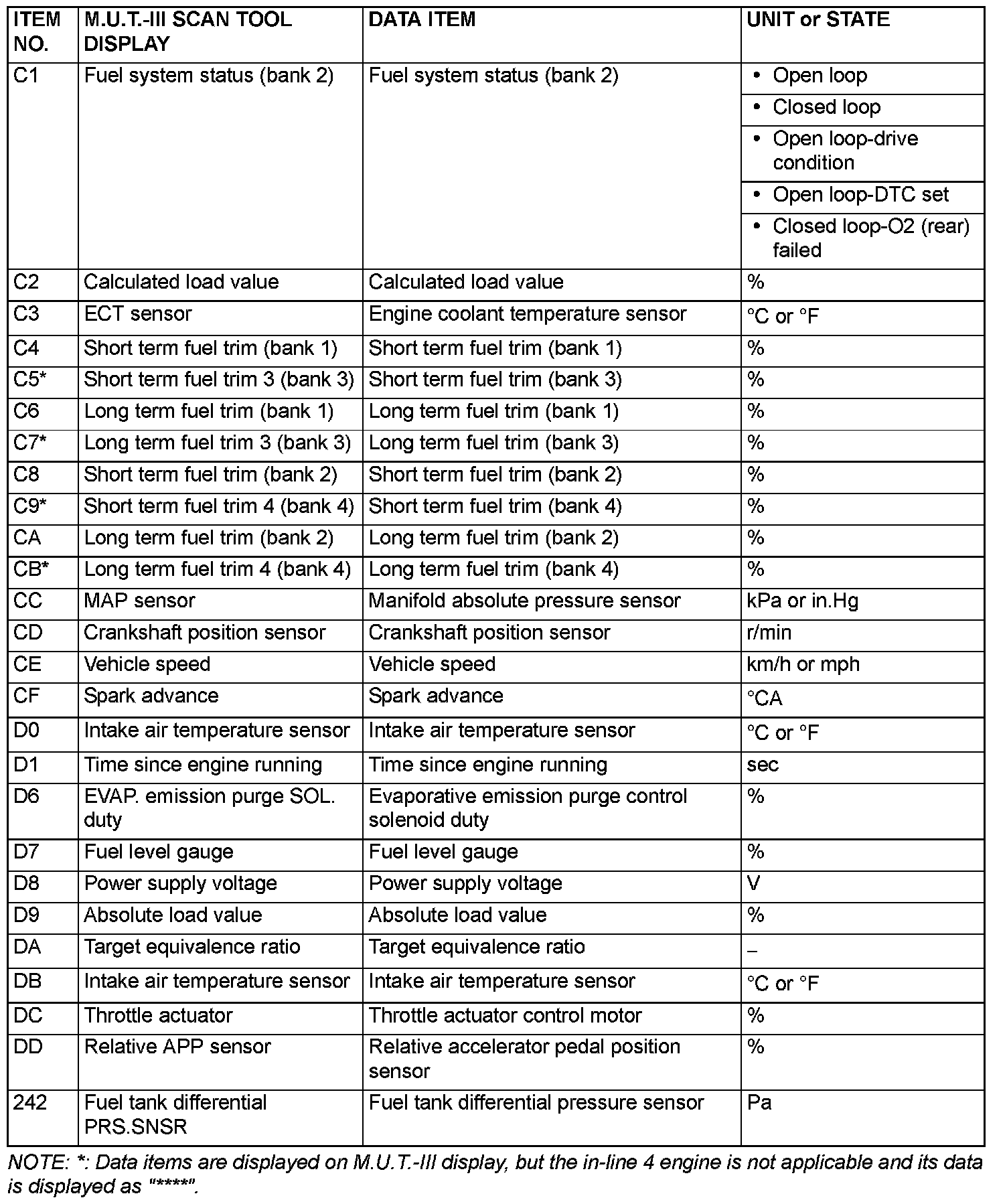

Freeze Frame Data for M.U.T.-III (Part 1):




Freeze Frame Data for M.U.T.-III (Part 2):

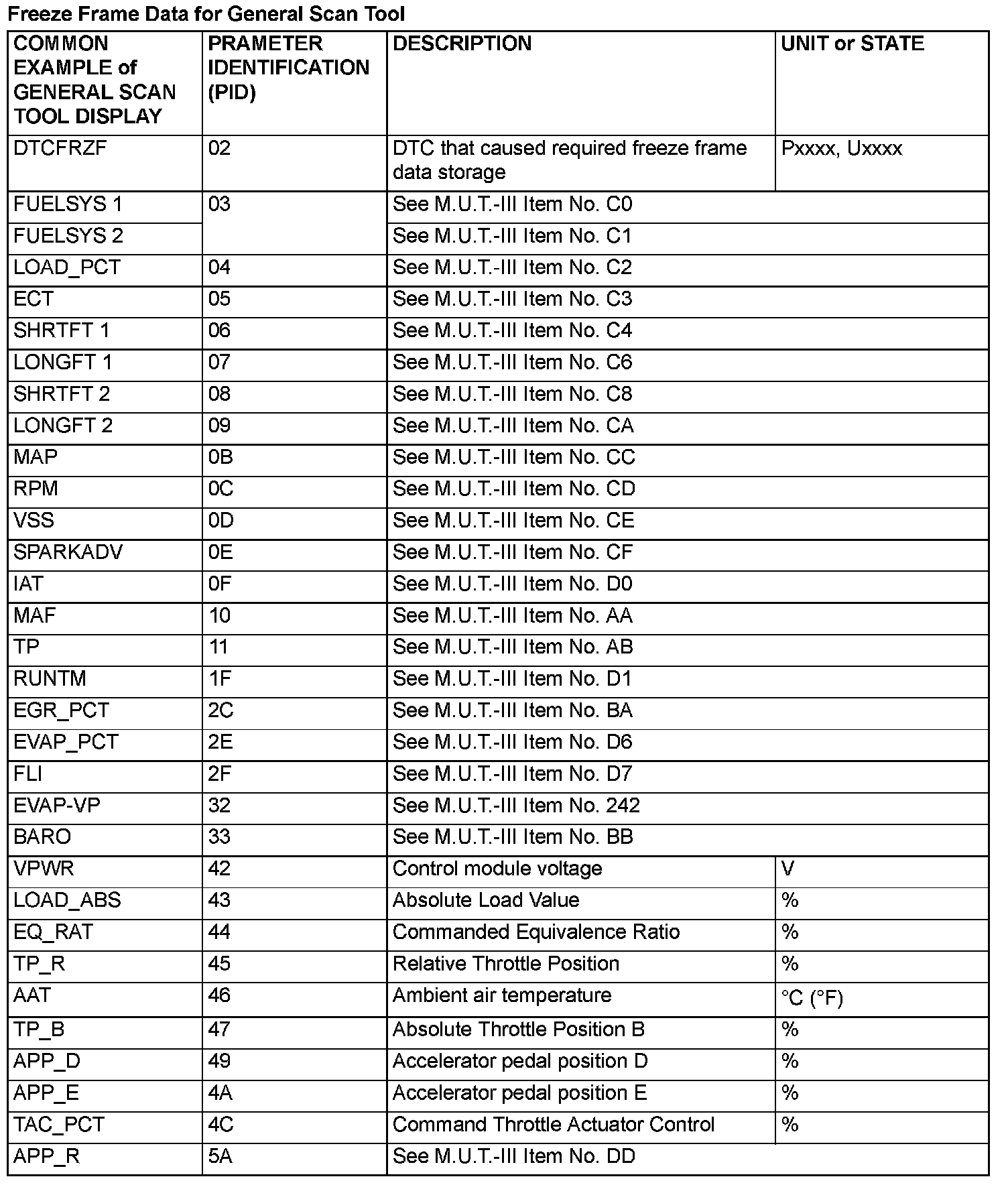

Freeze Frame Data for General Scan Tool


Freeze Frame Data for General Scan Tool:
