Data List Reference Table

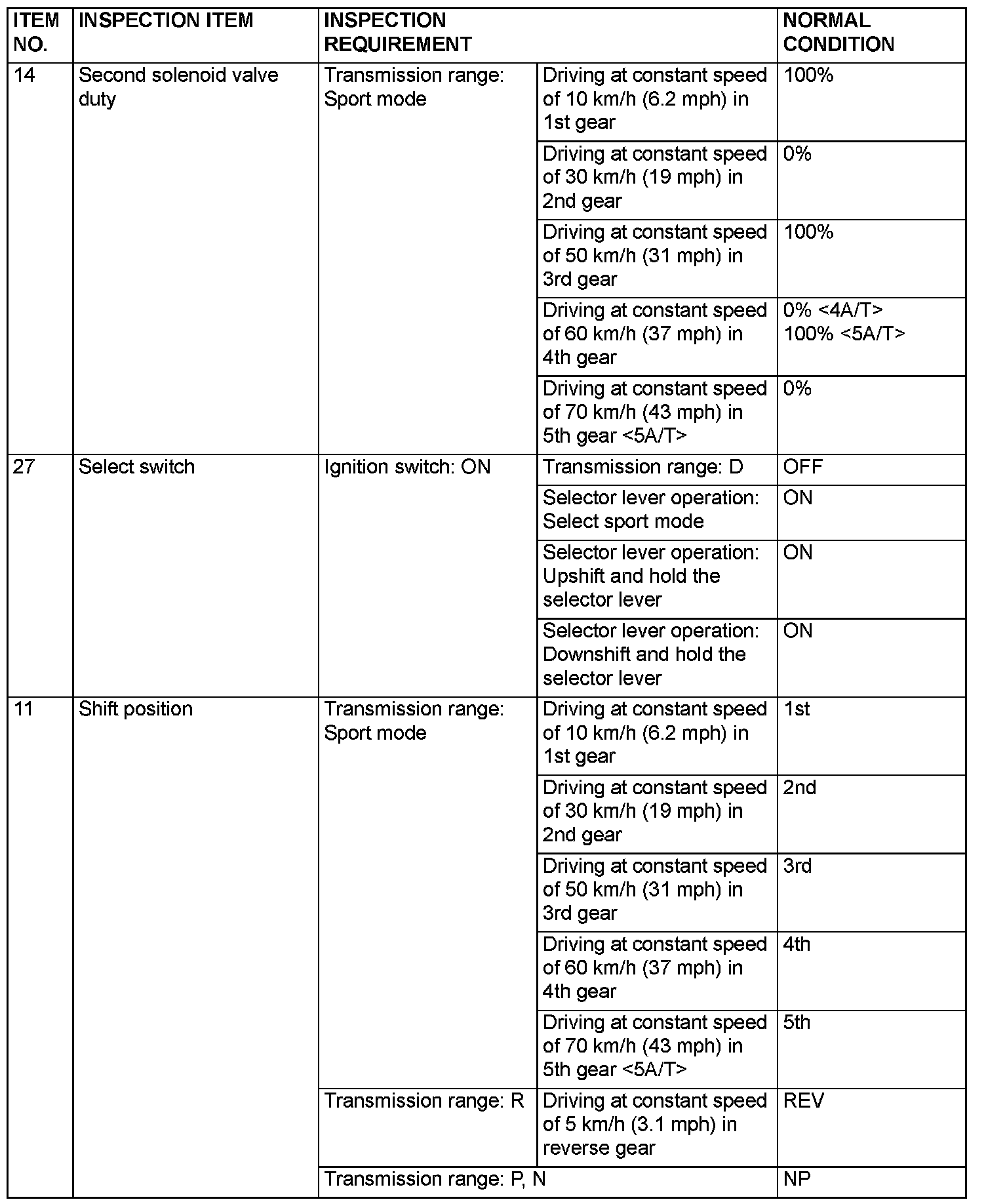

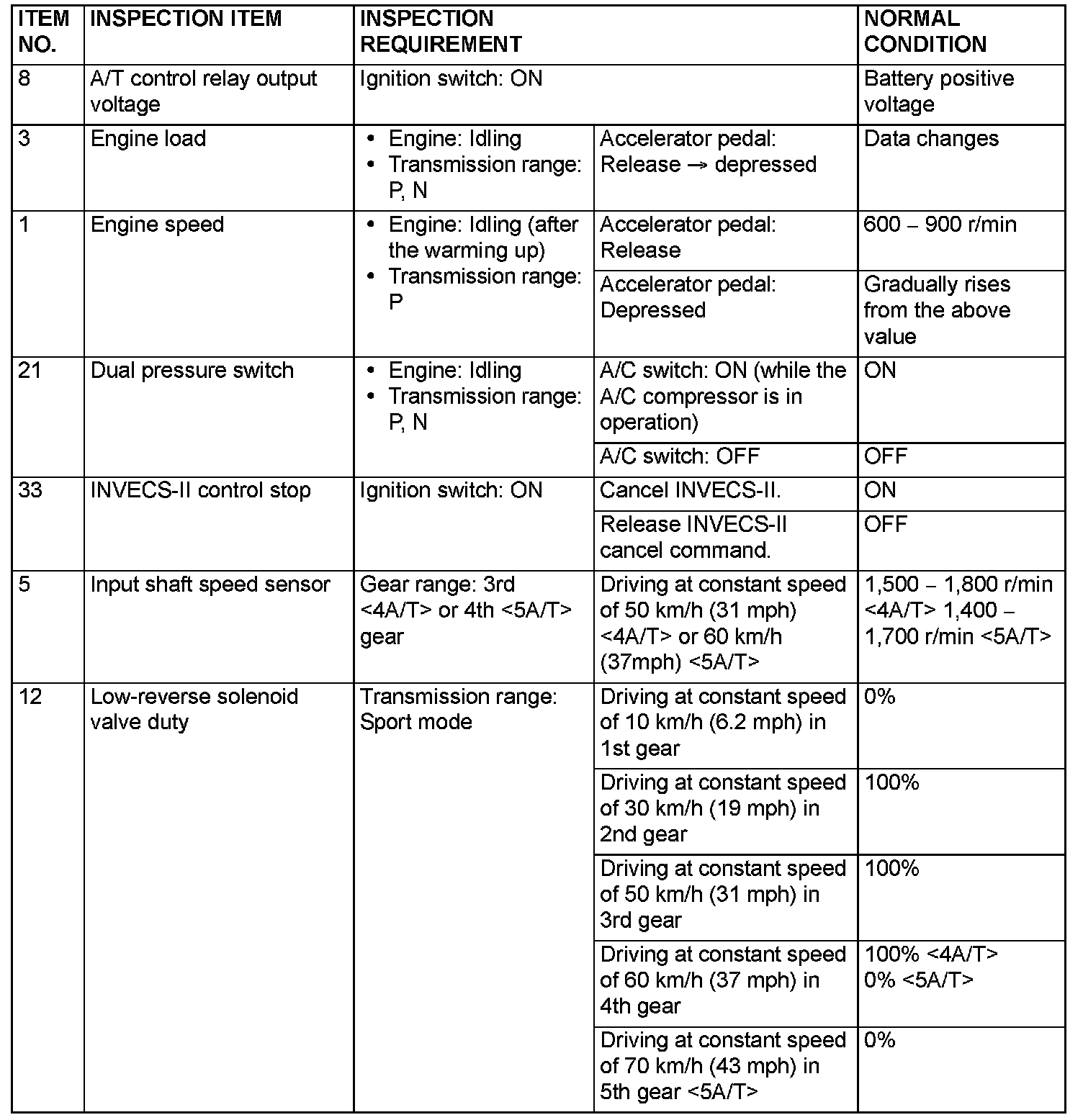

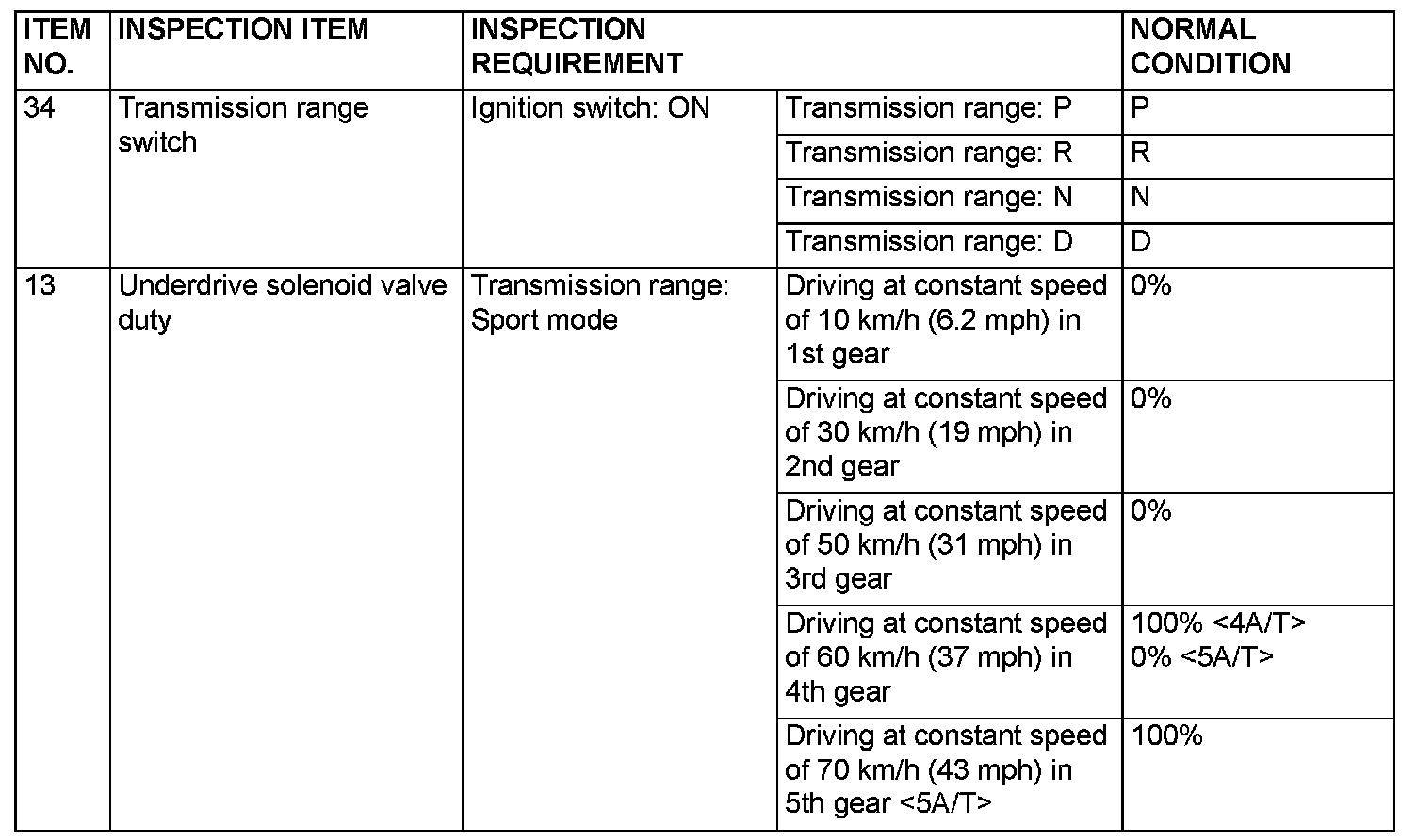

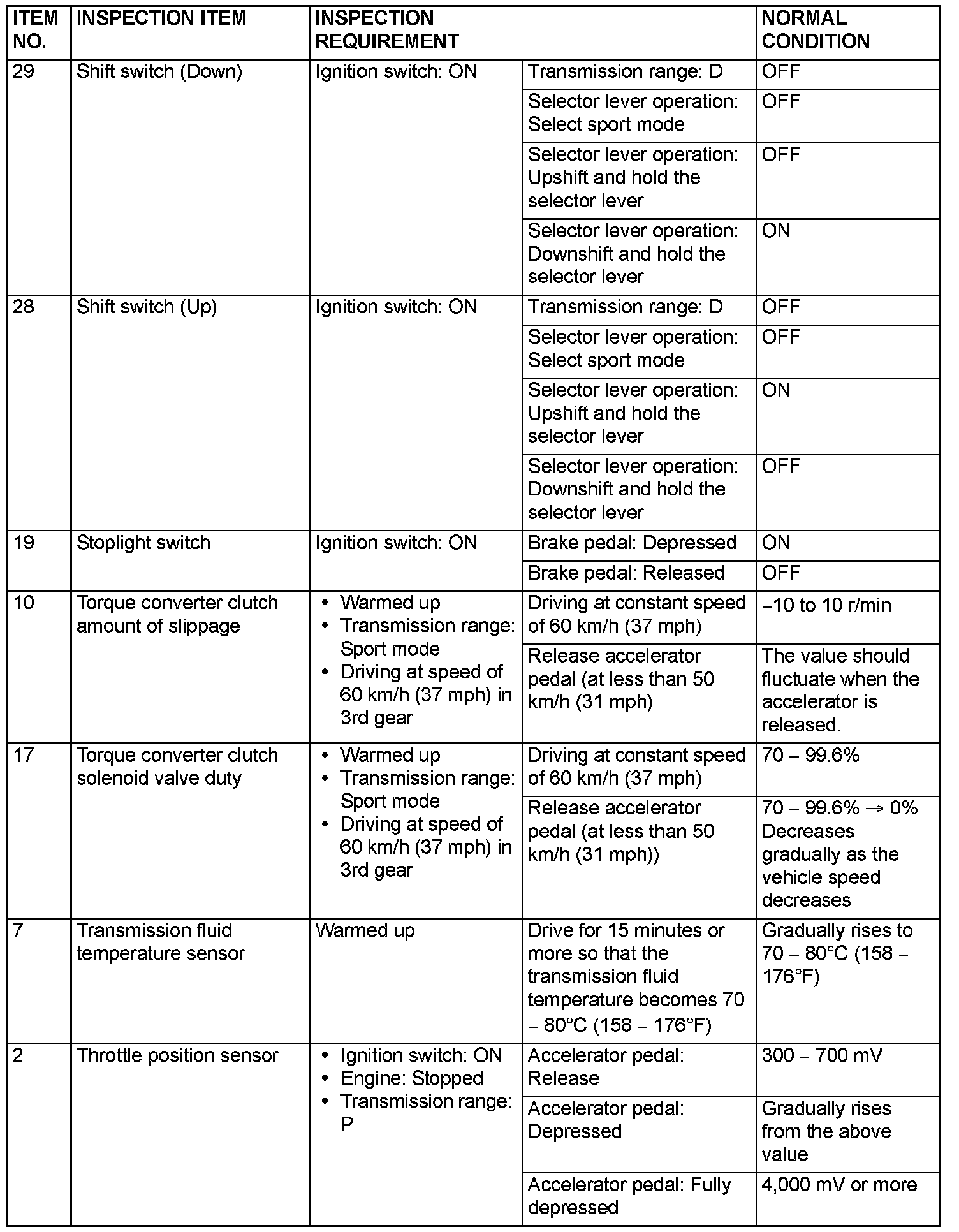

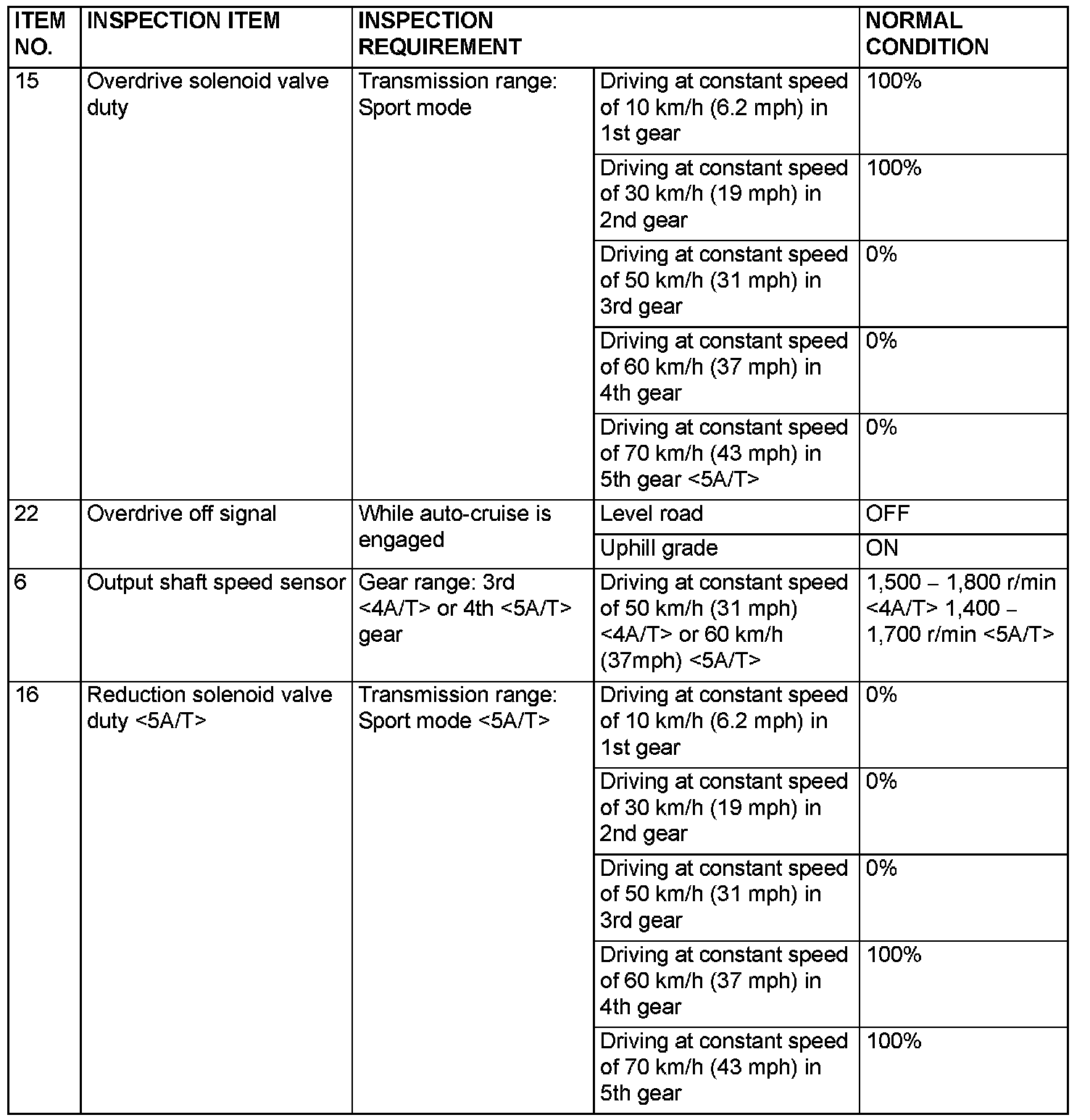

DATA LIST REFERENCE TABLE

Part 1:




Part 2:




Part 3:




Part 4:




Part 5:
