General Specification

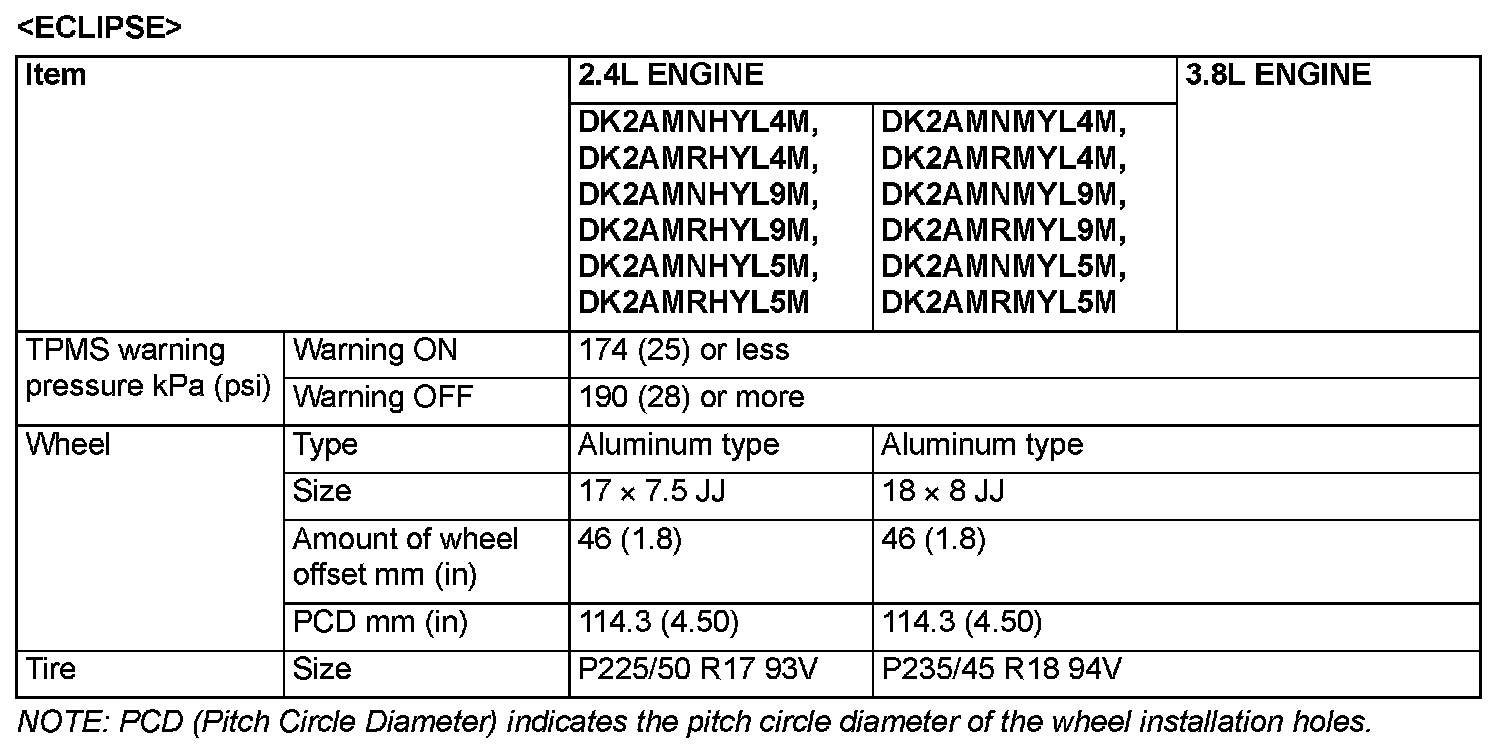

GENERAL SPECIFICATION
Road wheel and road tire
[ECLIPSE]
[ECLIPSE SPIDER]
Spare wheel and spare tire
