Removal And Installation <3.8L Engine>: Notes

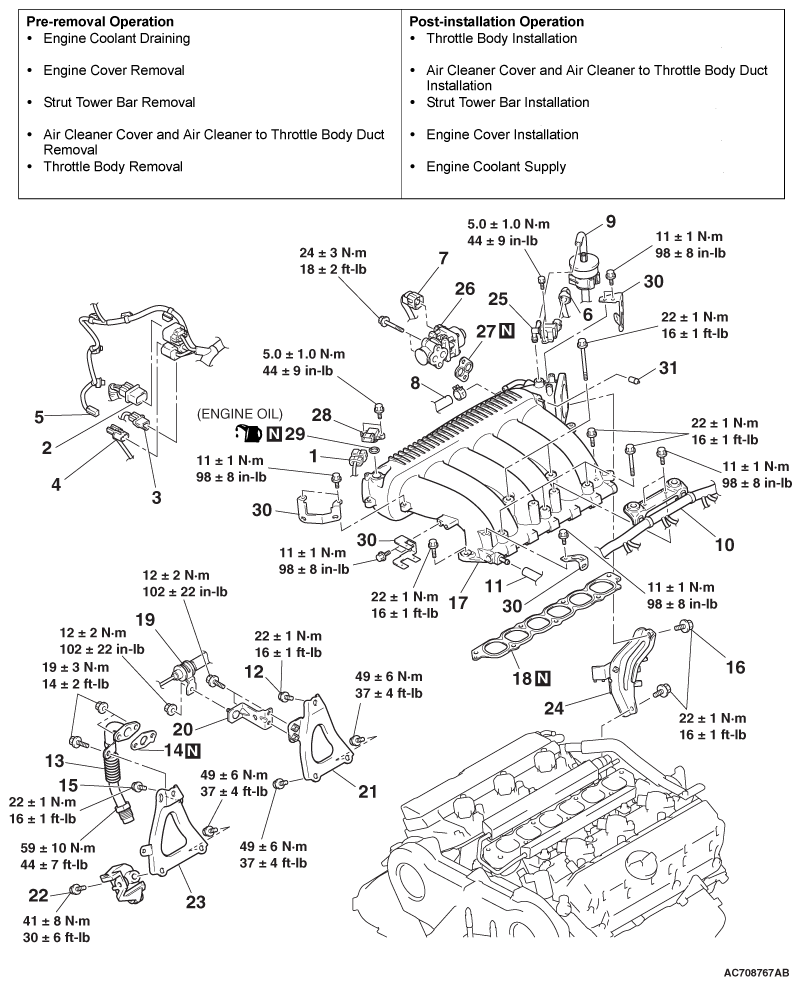

Fig 1: Exploded View Of Intake Manifold Plenum (3.8L Engine) With Torque Specifications
G06717523Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

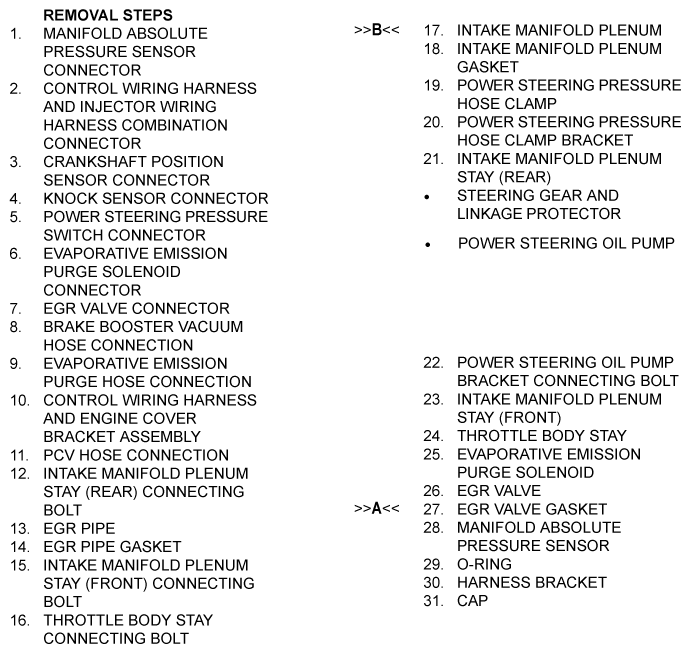

Fig 2: Intake Manifold Plenum Legends (3.8L Engine)
G06717524Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
