Removal And Installation: Notes

CAUTION:

Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING <Except RALLIART> or DRIVER'S AIR BAG MODULE AND CLOCK SPRING <RALLIART> <Vehicles with WCM>.
After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point (Refer to STEERING WHEEL SENSOR CALIBRATION ). <Vehicles with WCM and ASC>

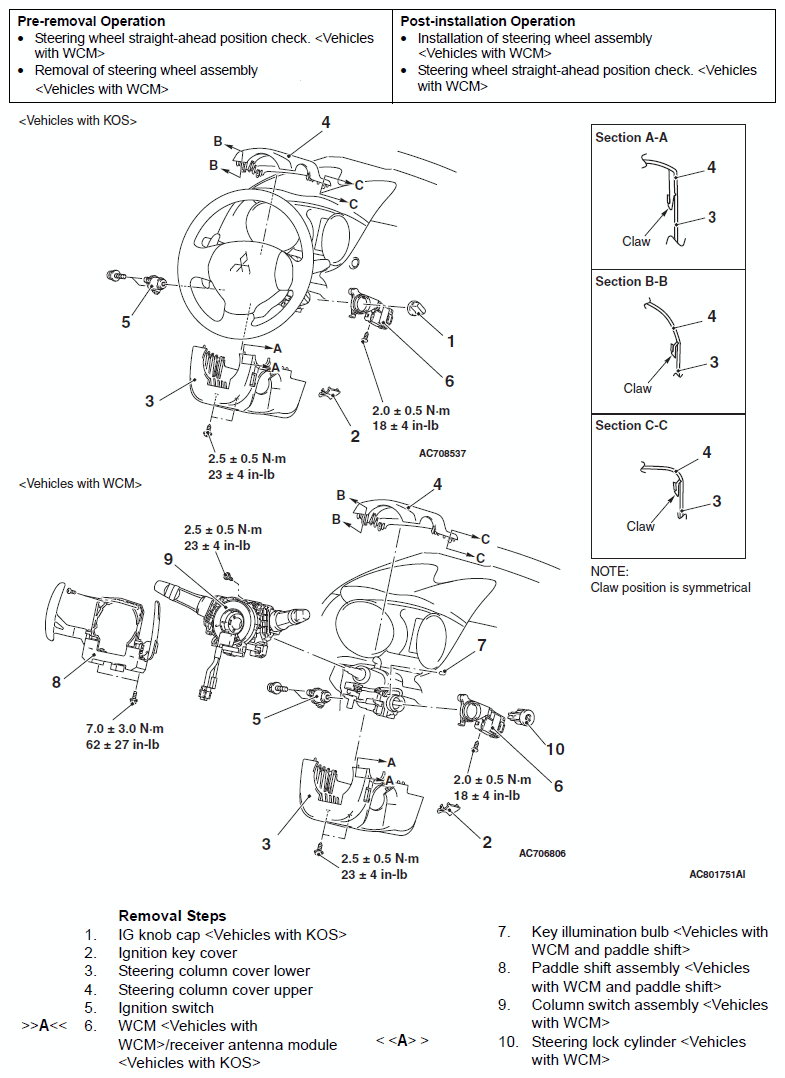

Fig 1: Exploded View Of Steering Wheel Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
