Removal And Installation: Notes

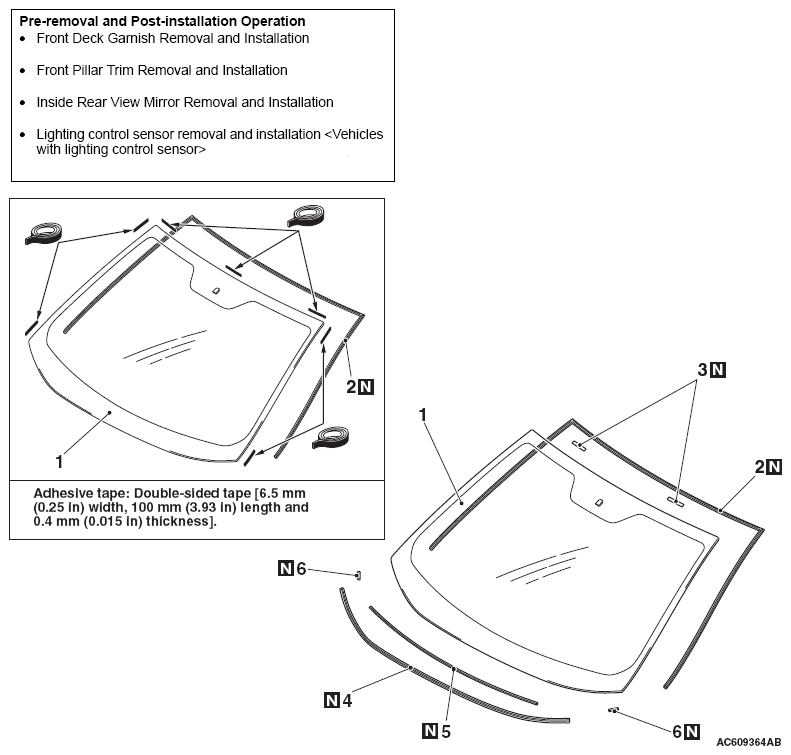

Fig 1: Identifying Windshield Components (1 Of 2)
G06673070Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

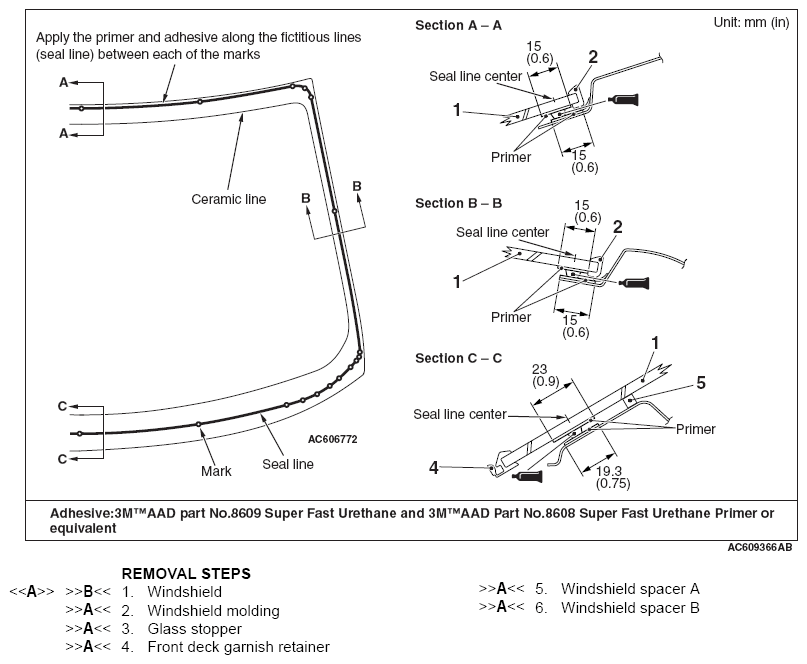

Fig 2: Identifying Windshield Components (2 Of 2)
G06673071Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
