Home >> Mitsubishi >> 2010 >> Lancer ES, Standard >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior -- Lancer >> Floor Console Assembly >> Removal And Installation >> Notes
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Removal And Installation: Notes

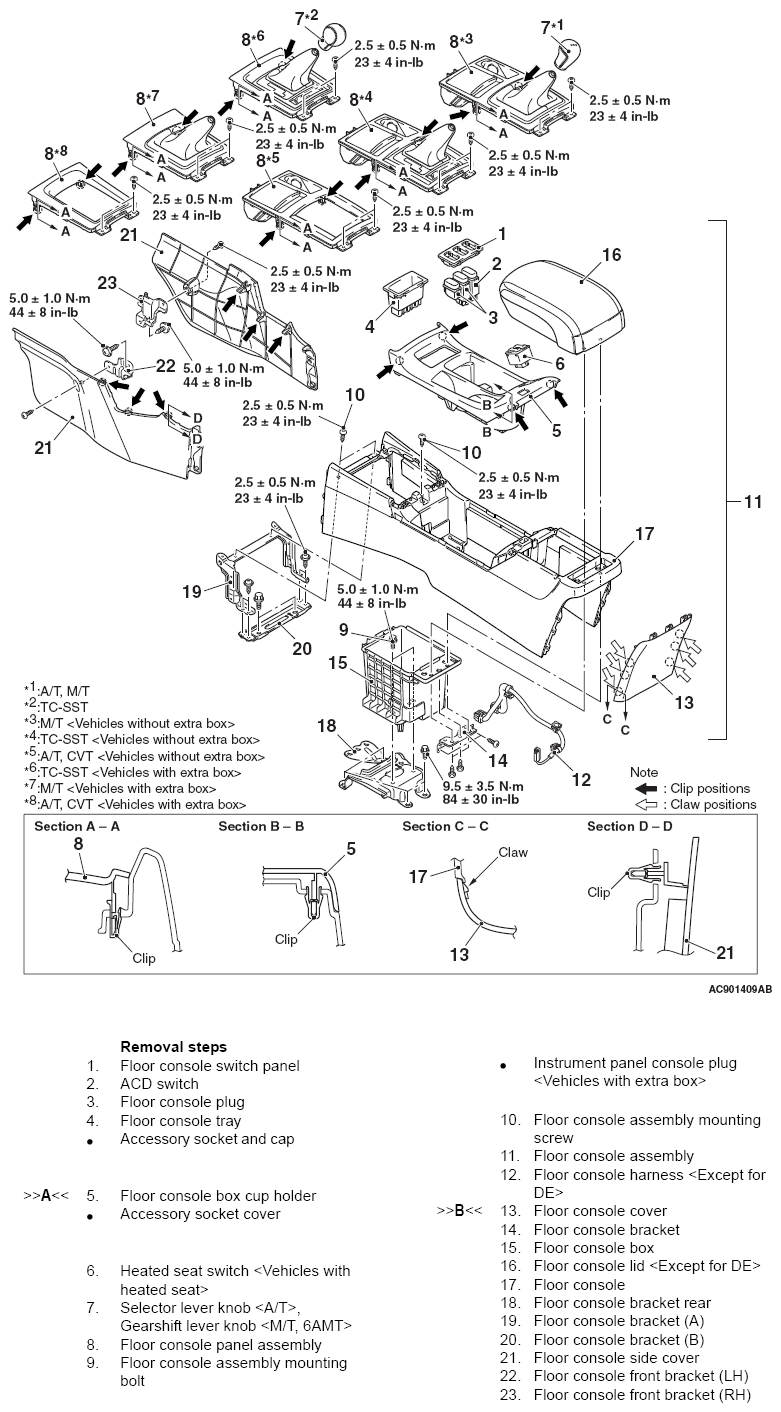

Fig 1: Floor Console Assembly Replacement Components With Torque Specifications
G06673273Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
