Disassembly And Assembly: Notes

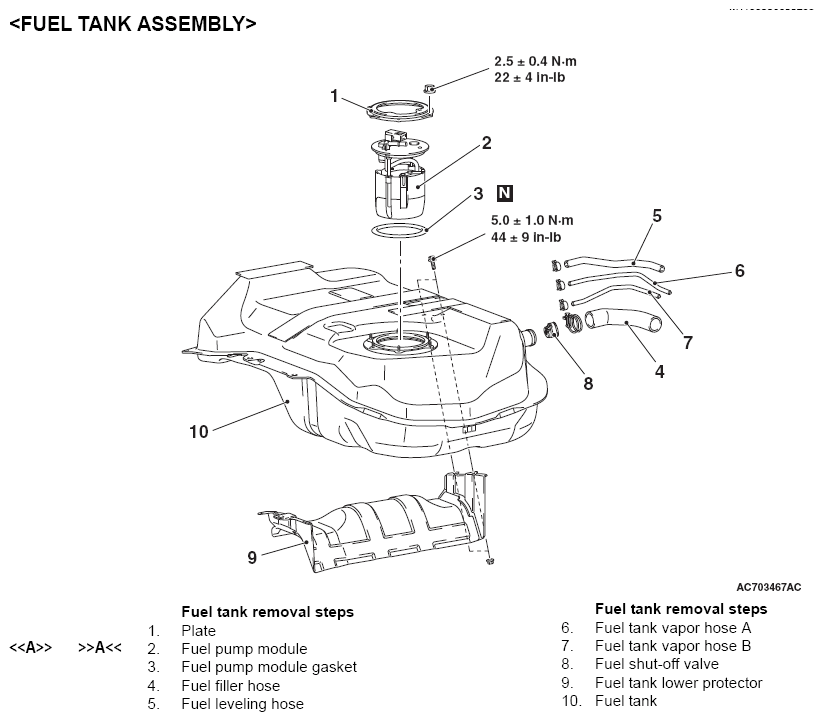

Fig 1: Fuel Tank Replacement Components With Torque Specifications
G06481480Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

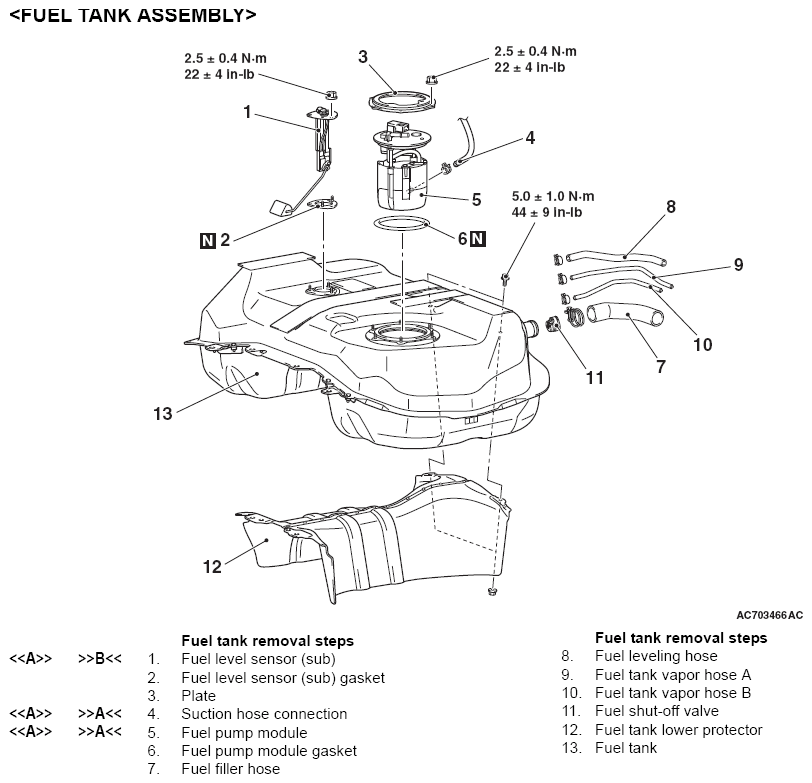

Fig 1: Disassembled View Of Fuel Tank Assembly With Torque Specifications
G06481493Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
