Crankshaft Position Sensor: Service and Repair

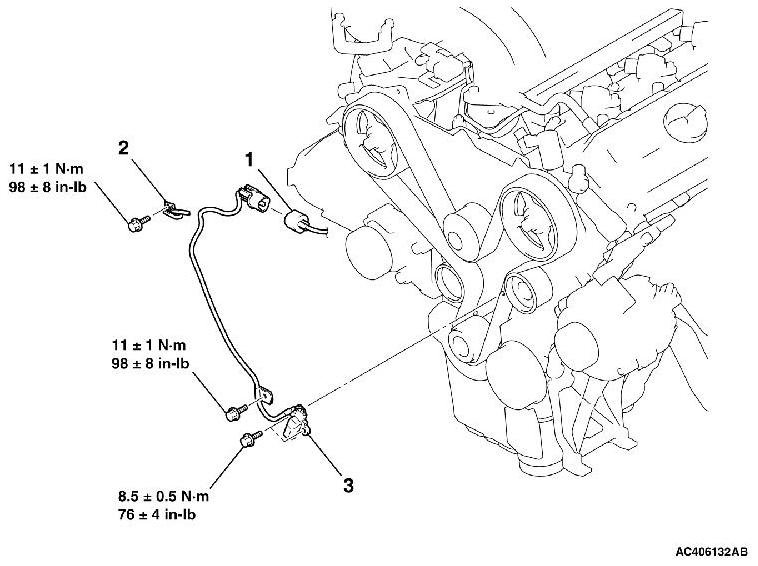

REMOVAL AND INSTALLATION [3.8L ENGINE]









INSTALLATION SERVICE POINTS

]]A[[ CRANKSHAFT POSITION SENSOR INSTALLATION

1. Install the crankshaft position sensor to the cylinder block front case.

2. Tighten the crankshaft position sensor mounting bolts by hand.

3. Tighten the crankshaft position sensor mounting bolts to the specified torque.
Tightening torque: 8.5± 0.5Nm (76± 4 in-lb)


]]B[[ CLIP INSTALLATION

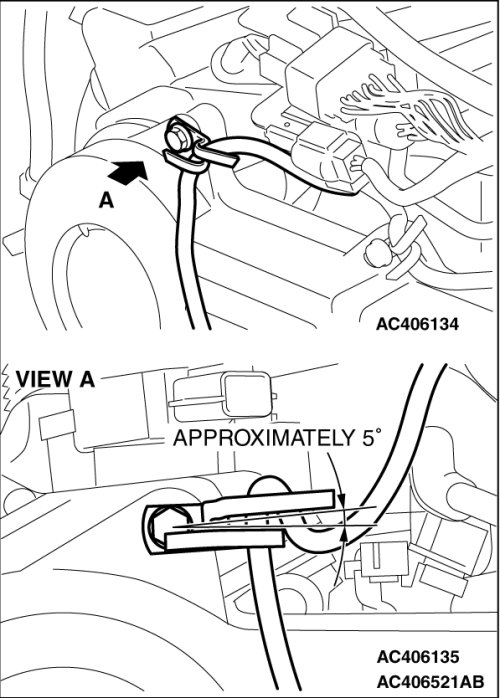

1. Install the clip to the the timing belt front upper cover as shown.
2. Tighten the clip mounting bolt to the specified torque.
Tightening torque: 11± 1Nm (98± 8 in-lb)
