Immobilizer System: Operation

With the ignition switch "ON" position, the immobilizer system operates as follows.

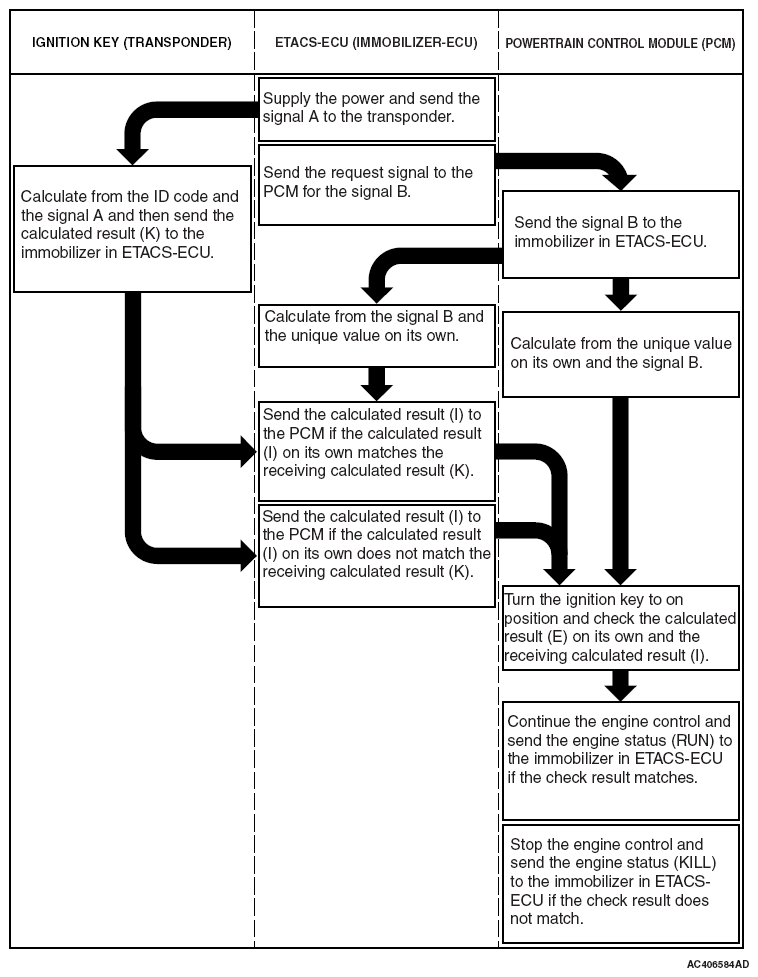

Fig 1: Ignition Switch Operation Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
