Resistance And Continuity Between Harness-Side Connector Terminals

Required Special Tool:

MB991952: ABS Check Harness

1. Disconnect the connector A-32, and connect the special tool ABS Check Harness (MB991952) to the wiring harness-side connector.
   NOTE: Do not connect the special tool ABS Check Harness (MB991952) to the TCL/ASC-ECU.
2. Measure the resistance and continuity between the terminals indicated in the table below.

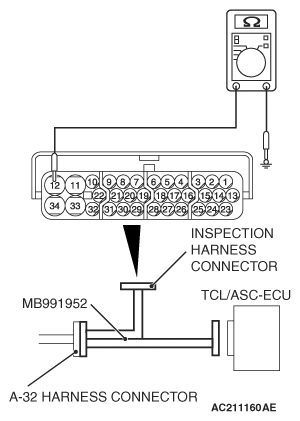

   Fig 1: Measuring Resistance And Continuity Between Terminals

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   CONNECTOR SPECIFICATIONS



   CONNECTOR TERMINAL NO.	SIGNAL	NORMAL CONDITION
   22 - 31	Front-left wheel speed sensor	1.24 - 1.64 kΩ
   21 - 30	Front-right wheel speed sensor	1.24 - 1.64 kΩ
   6 - 7	Rear-left wheel speed sensor	1.24 - 1.64 kΩ
   8 - 9	Rear-right wheel speed sensor	1.24 - 1.64 kΩ
   12 - body ground	Ground	Continuity exists (2 Ω or less)
   34 - body ground	Ground	Continuity exists (2 Ω or less)
