Fuel Pump Module
NOTE:
For the removal and installation procedures, refer to the
FUEL PUMP MODULE REPLACEMENT PROCEDURE
in (Refer to ).

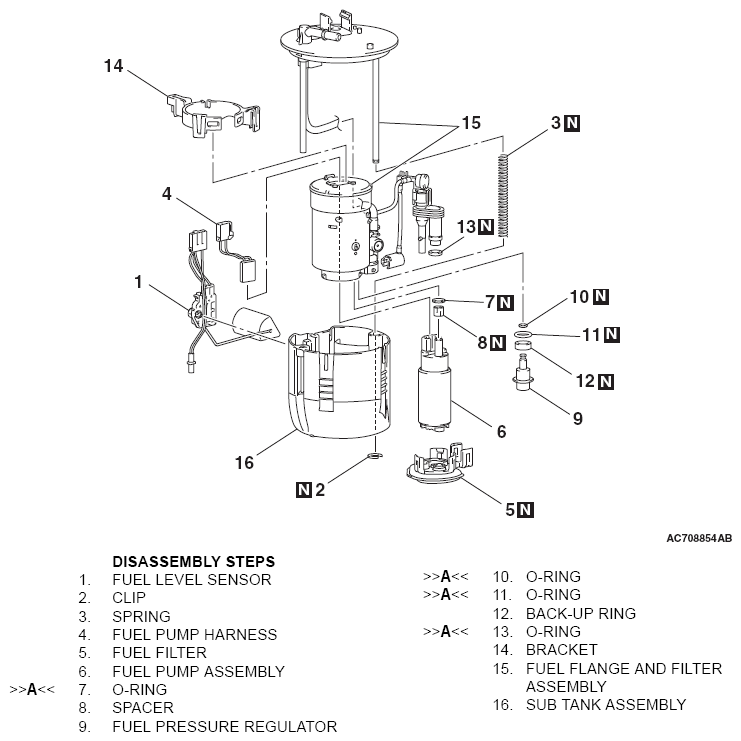

Fig 1: Disassembly/Assembly Of Fuel Pump Module Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
