Rectangular Waterproof Connector

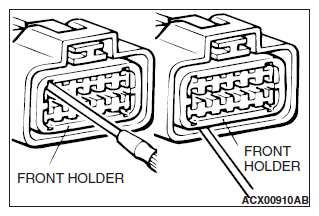

  1. Disengage the front holder with a screwdriver and remove it.
    Fig 1: Disengaging Front Holder Using Screwdriver
    G06698873Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Insert the tip of a screwdriver [0.8 mm (0.03 inch) width] into the connector as shown in the figure, push it lightly to raise the housing lance, and pull out the terminal.
    Fig 2: Inserting Tip Of Screwdriver In To Connector
    G06698874Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Press the contact point to the male terminal down by holding a screwdriver [1.4 mm (0.06 inch) width] as shown in the figure. Lightly squeeze the outer edge so the flats are parallel with the bottom.
    Fig 3: Pressing Contact Point To Male Terminal
    G06698875Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
