Removal And Installation: Notes

WARNING:
  • Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and Air Bag Module and Clock Spring.
  • When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to ON-VEHICLE SERVICE .)
CAUTION: Do not impact the seat. If the impact (falling etc.) is applied on the seat with occupant classification sensor, the occupant classification sensor transmitting error may be occurred.)

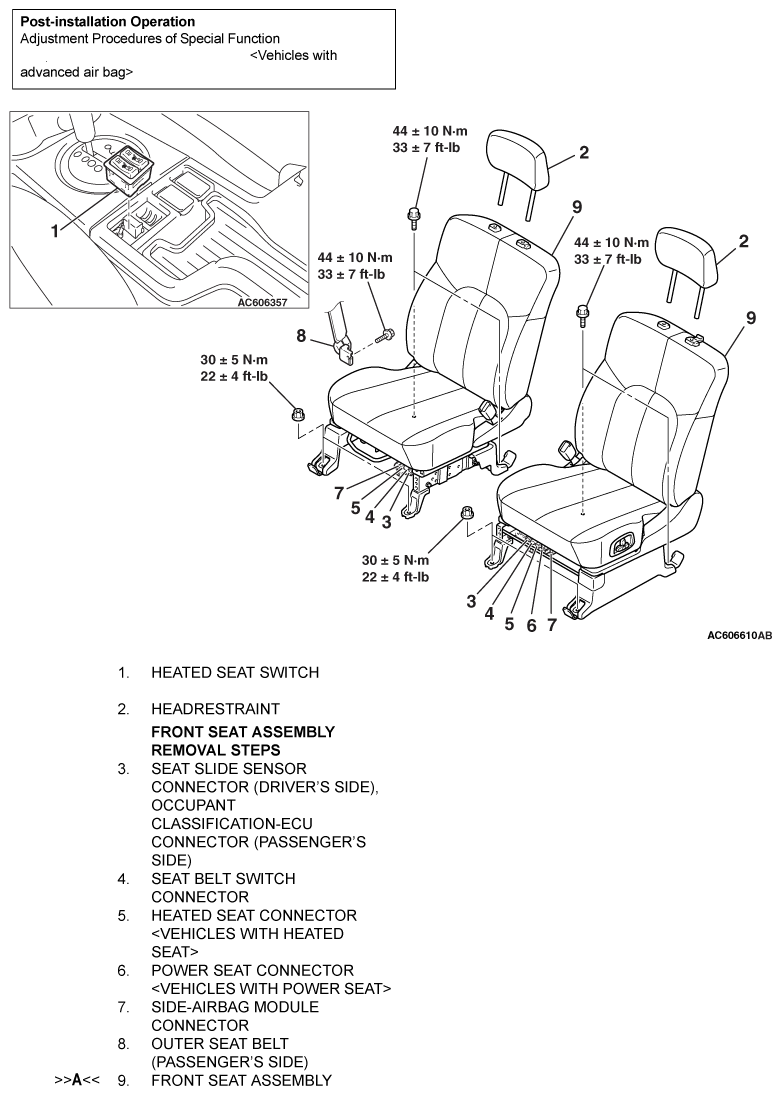

Fig 1: Front Seat Assembly Removal And Installation With Torque Specifications
G06700317Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
