Disassembly And Assembly: Disassembly

CAUTION:

Because the automatic transaxle is manufactured from high-precision parts, care must be taken not to scratch or damage these parts during disassembly and assembly.
The working area should be covered with a rubber mat to keep it clean at all times.
Do not wear any cloth gloves and do not use any shop towels during disassembly. Use only nylon cloth, paper towels or any other lint-free material.
Parts which have been disassembled should all be cleaned. Metal parts can be cleaned with normal detergent, but they should be dried completely using compressed air.
Clutch discs, plastic thrust plates and rubber parts should be cleaned with automatic transmission fluid (ATF).
If the transaxle body has been damaged, disassemble and clean the cooler system.

Remove the transfer and O-ring <W4A5A>
Use a dial gauge to measure the input shaft end play.
Remove the torque converter.
Remove each bracket.
Remove the dipstick.
Remove the eye bolt, gaskets and the oil cooler feed tube.

Fig 1: Measuring Input Shaft End Play
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

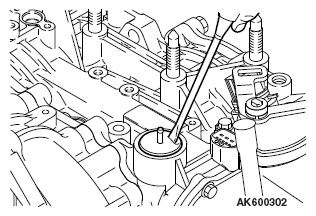

Remove the air breather by inserting a screw driver into the air breather and prying it up.

Fig 2: Removing Air Breather
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the input shaft speed sensor and output shaft speed sensor.

Fig 3: Removing Input Shaft Speed Sensor And Output Shaft Speed Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: The manual control lever tightening nut must be removed before removing the valve body. If the valve body is removed before the nut, the park/neutral position switch will be damaged.
Loosen the manual control lever tightening nut, and then remove the manual control lever, and the park/neutral position switch.

Fig 4: Removing Manual Control Lever
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the valve body cover.

Fig 5: Removing Valve Body Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the manual control shaft detent.

Fig 6: Removing Manual Control Shaft Detent
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

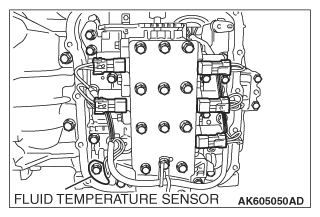

Disconnect the solenoid valve harness from the valve body by undoing the fluid temperature sensor and all the connectors.

Fig 7: Fluid Temperature Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION:
- Make sure that the manual control lever and the park/neutral position switch are removed. See step 8.
- Do not remove the bolts (four pieces) shown in the illustration.
Remove the valve body mounting bolts (twenty seven pieces).

Fig 8: Removing Valve Body Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Do not lose the two steel balls.
Remove the valve body and the two steel balls.

Fig 9: Removing Valve Body
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the snap ring from the connector and then push the connector into the transaxle case and remove the solenoid valve harness.

Fig 10: Removing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the strainer and the second brake retainer oil seal.

Fig 11: Removing Strainer And Second Brake Retainer Oil Seal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Remove each accumulator piston and spring.

NUMBER REFERENCE

NUMBER	NAME
1	For low-reverse brake
2	For underdrive clutch
3	For second brake
4	For overdrive clutch

Fig 12: Removing Accumulator Piston And Spring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

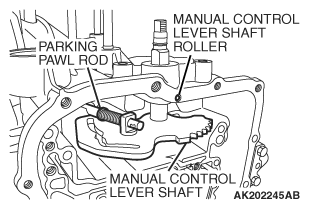

Remove the manual control lever shaft roller.
Remove the manual control lever shaft and the parking pawl rod.

Fig 13: Removing Manual Control Lever Shaft Roller
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the torque converter housing mounting bolts (18 pieces), and then remove the torque converter housing.
Remove the differential bearing outer race and spacer from the torque converter housing.

Fig 14: Removing Torque Converter Housing Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the O-rings (two pieces).

Fig 15: Removing O-rings
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the differential.
Remove the differential bearing outer race from the transaxle case.

Fig 16: Removing Differential
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the oil filter.

Fig 17: Removing Oil Filter
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

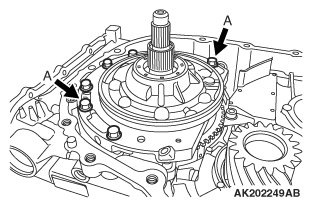

Remove the oil pump mounting bolts (six pieces).
Install special tool MD998333 in hole "A."

Fig 18: Removing Oil Pump Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

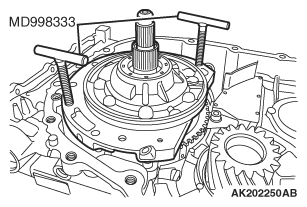

Turn special tools MD998333 to remove the oil pump.
Remove the oil pump gasket.

Fig 19: Removing Oil Pump
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove thrust washer number 1.

Fig 20: Thrust Washer Number 1
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Holding the input shaft, remove the underdrive clutch and input shaft.

Fig 21: Removing Underdrive Clutch And Input Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

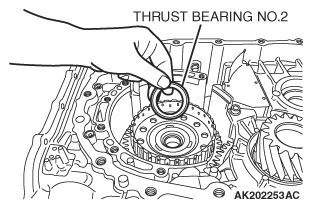

Remove thrust bearing number 2.

Fig 22: Thrust Bearing Number 2
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the underdrive clutch hub.

Fig 23: Removing Underdrive Clutch Hub
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the rear cover.
Remove thrust race number 8.
Remove the seal rings (four pieces).
Remove the input shaft rear bearing.

Fig 24: Rear Cover, Seal Rings And Input Shaft Rear Bearing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the O-rings (three pieces).

Fig 25: Removing O-rings
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

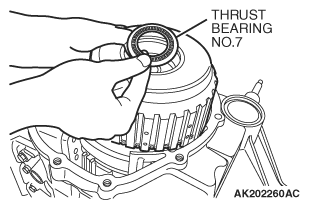

Remove the reverse and overdrive clutch and thrust bearing number 7.

Fig 26: Overdrive Clutch And Thrust Bearing Number 7
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

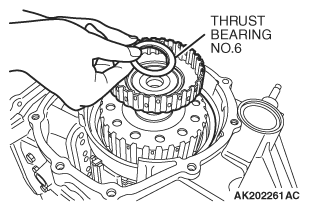

Remove overdrive clutch hub and thrust bearing number 6.

Fig 27: Removing Overdrive Clutch Hub And Thrust Bearing Number 6
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

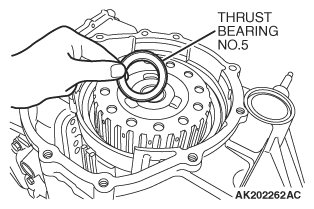

Remove thrust bearing number 5.

Fig 28: Thrust Bearing Number 5
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the planetary reverse sun gear.

Fig 29: Removing Planetary Reverse Sun Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the snap ring.

Fig 30: Removing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the second brake piston and the return spring.

Fig 31: Removing Second Brake Piston And Return Spring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

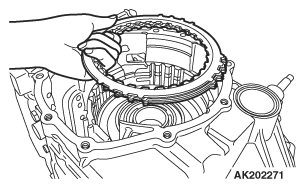

Remove the pressure plate, brake discs and brake plates.

Fig 32: Removing Pressure Plate Second Brake Discs And Second Brake Plates
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the planetary carrier assembly.

Fig 33: Removing Planetary Carrier Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the snap ring.

Fig 34: Removing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the reaction plate and the brake disc.

Fig 35: Removing Reaction Plate
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

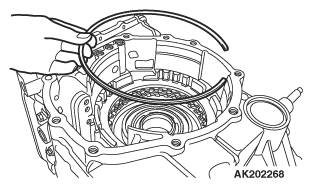

Remove the snap ring.

Fig 36: Removing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

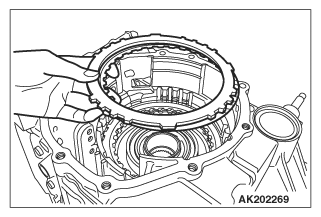

Remove the brake plates (five pieces), brake discs (six pieces) and pressure plate.

Fig 37: Removing Brake Plates
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

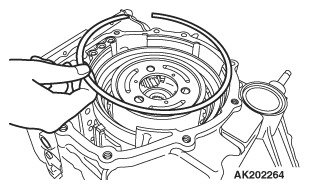

Remove the wave spring.

Fig 38: Removing Wave Spring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

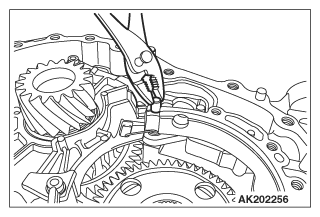

Remove the parking pawl shaft, and then remove the spacer and spring.

Fig 39: Removing Parking Pawl Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

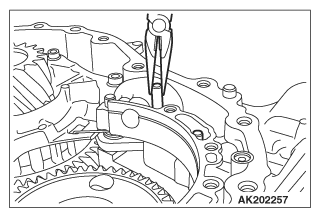

Remove the two parking roller support shafts, and then remove the parking roller support.

Fig 40: Removing Parking Roller Support Shafts And Parking Roller Support
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the one-way clutch inner race and low-reverse brake piston as follows:
1. Using special tools MD998338 and MD998924, compress the one-way clutch inner race.
  NOTE: This illustration shows F4A5A.
2. Remove the snap ring.
3. Remove the special tools.
4. Remove the one-way clutch inner race, O-ring, spring retainer, return spring and low-reverse brake piston.

  Fig 41: Removing One-Way Clutch Inner Race, O-ring, Spring Retainer, Return Spring And Low-Reverse Brake Piston
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the four transfer drive gear bearing mounting bolts.
Then, turn the gear 1/8 turn (45 degree angle) and remove the remaining bolts.

Fig 42: Removing Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

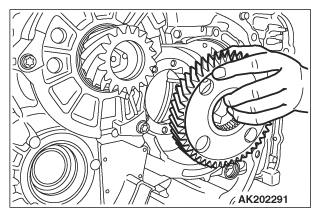

Remove the transfer drive gear.

Fig 43: Removing Transfer Drive Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

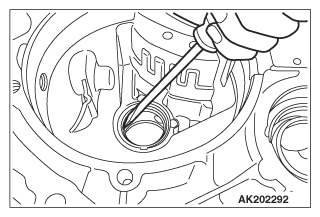

Remove the cap by inserting a screw driver into the center of the cap and prying it up.

Fig 44: Removing Cap With Screw Driver
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

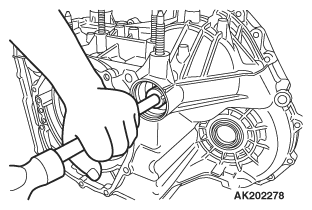

Using a chisel, remove the staked nut from the output shaft.

Fig 45: Removing Staked Nut
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: The locking nut is reverse threaded.
Use special tools MB991625 and MB990607 to remove the output shaft locking nut.

Fig 46: Removing Output Shaft Jam Nut
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the output shaft mounting bolts.

Fig 47: Removing Output Shaft Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tap on the rear end of the output shaft to remove the output shaft, taper roller bearing and collar.

Fig 48: Removing Output Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the outer race and the spacer.
Remove the snap ring.

Fig 49: Removing Outer Race And Spacer
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
