Disassembly And Assembly: Notes

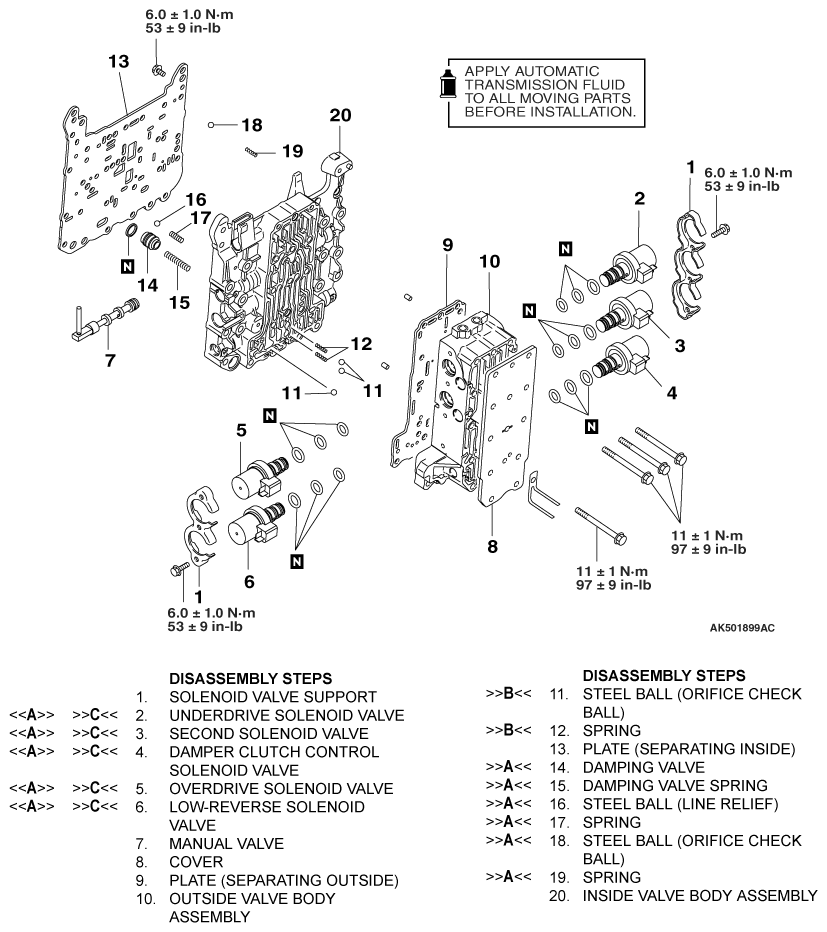

Fig 1: Valve Body Components With Torque Specifications (1 Of 3)
G06699652Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

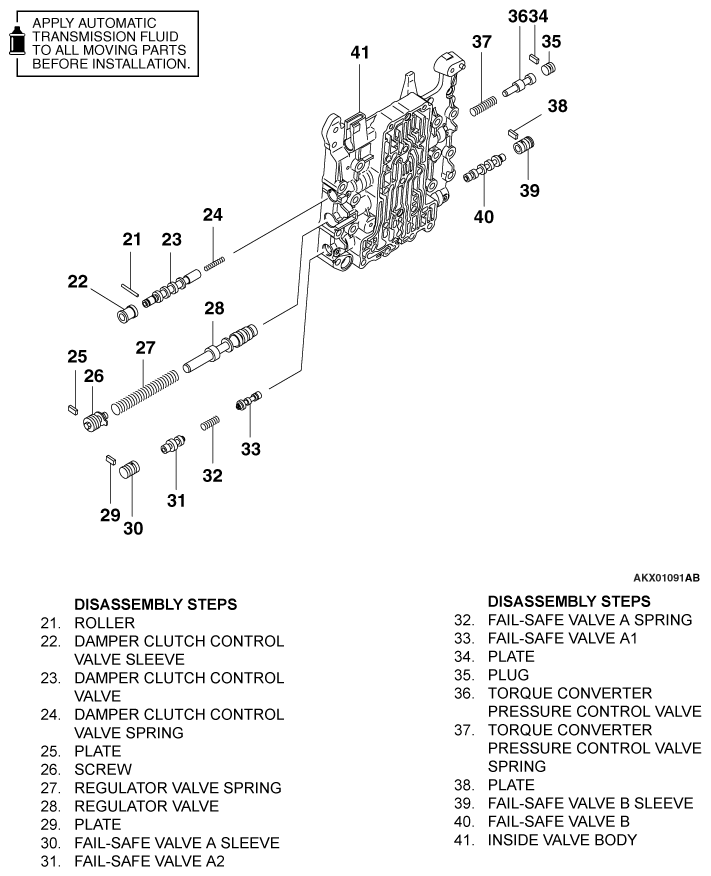

Fig 2: Valve Body Components (2 Of 3)
G06699653Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

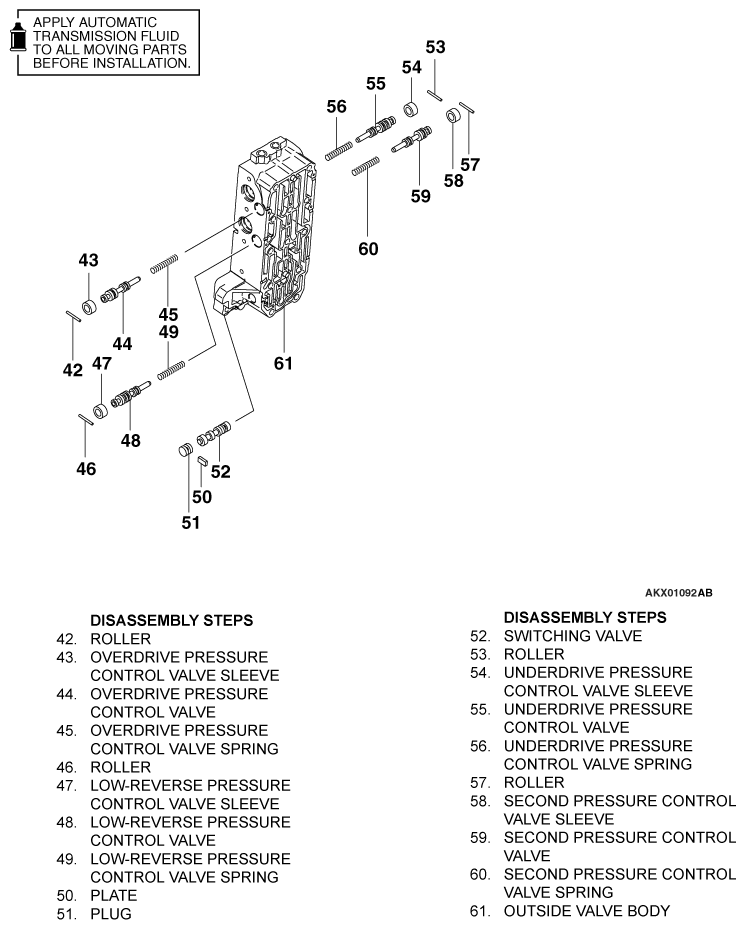

Fig 3: Valve Body Components (3 Of 3)
G06699654Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
