Removal And Installation: Notes

WARNING: When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to ON-VEHICLE SERVICE .)

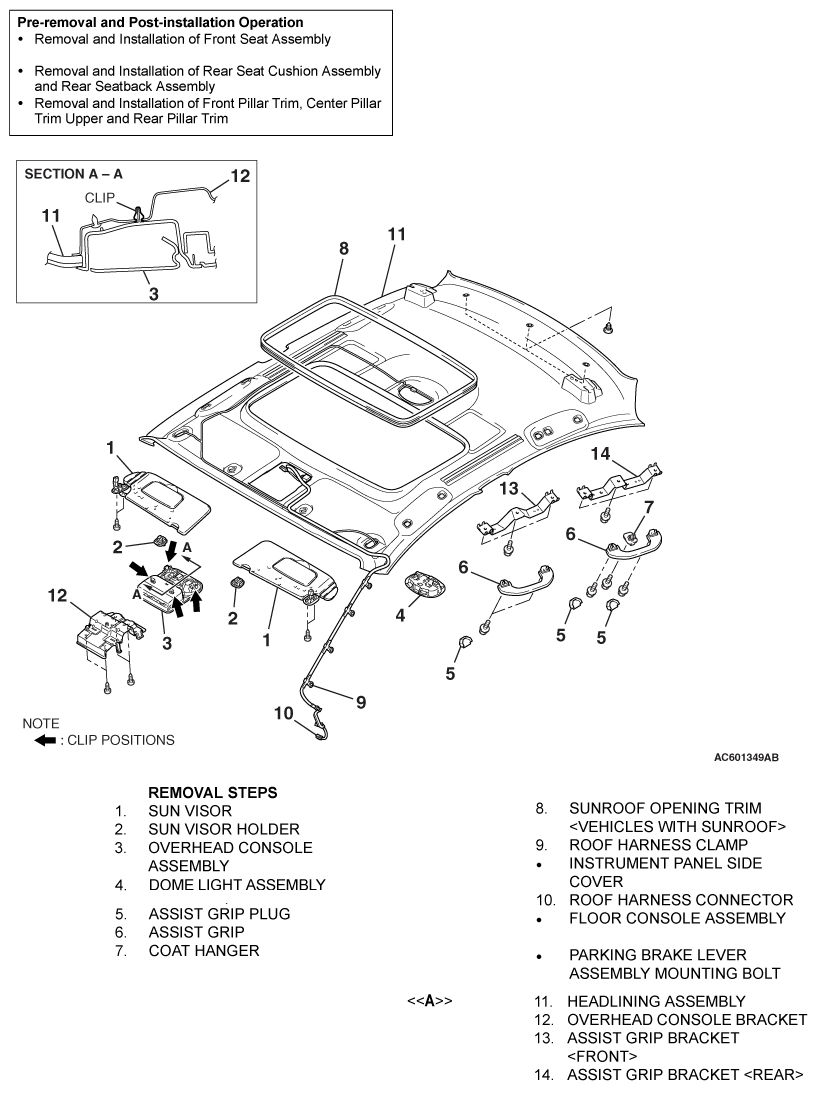

Fig 1: Headlining Assembly Components
G06710689Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
