Removal And Installation: Notes

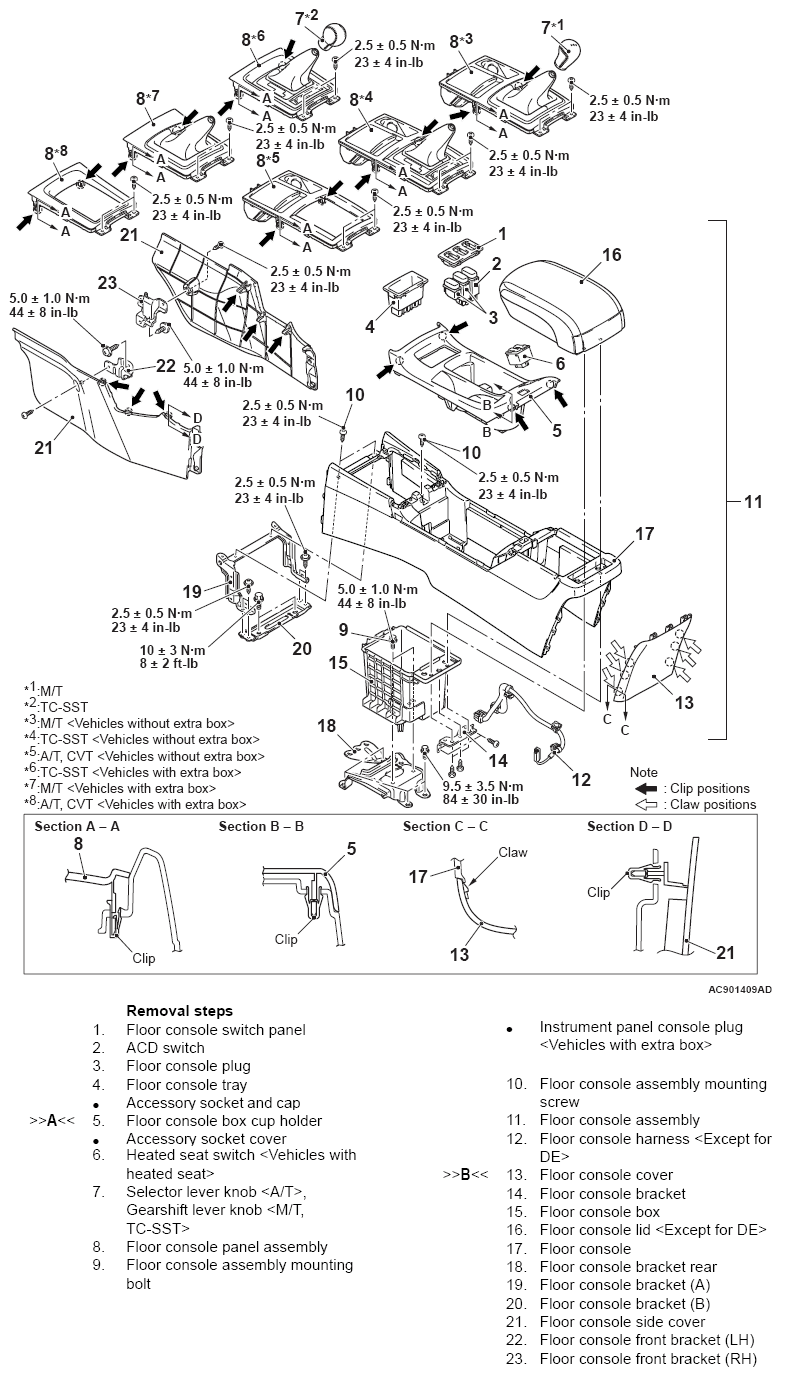

Fig 1: Removing/Installing Floor Console Assembly Components With Torque Specifications
G07033119Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
