Disassembly and Reassembly

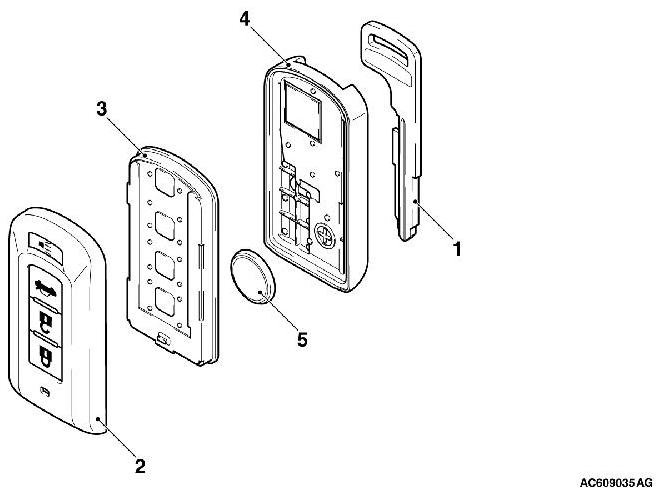

DISASSEMBLY AND ASSEMBLY













DISASSEMBLY SERVICE POINTS

[[A]]
EMERGENCY KEY REMOVAL

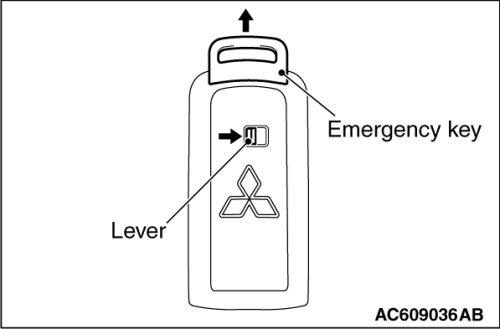

With the lever being pressed in the arrow direction of the illustration, pull out the emergency key from the keyless operation key and remove it.

[[B]]
UPPER COVER REMOVAL

CAUTION:
Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.

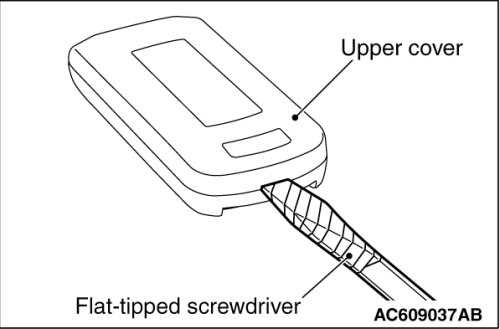

Place a flat-tipped screwdriver wrapped with protective tape as shown in the figure, and lever the keyless operation key to remove.

ASSEMBLY SERVICE POINT

]]A[[
BATTERY INSTALLATION

CAUTION:
Do not allow water or dust to enter the inside of the transmitter assembly when it is open. Also, do not touch the precision electronic device.

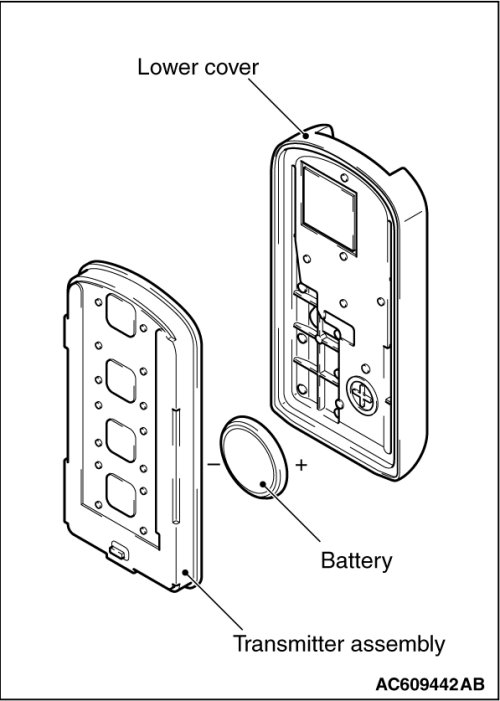

Install a new battery with the positive side facing toward the lower cover.
Replacement battery: Coin-type lithium battery CR2032
