Removal and Replacement

REMOVAL AND INSTALLATION

CAUTION:

- When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value Initialization Procedure for Learning Value in MFI Engine .)
- Do not drop or hit the knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.













INSTALLATION SERVICE POINT

]]A[[ KNOCK SENSOR INSTALLATION

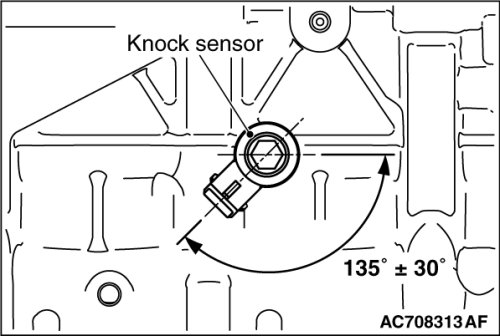

Set the connector of the knock sensor to the position shown in the figure, and tighten it to the specified torque.

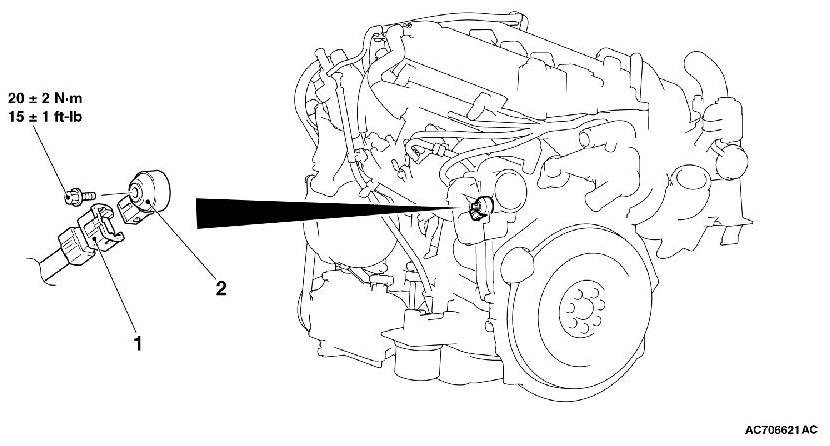

Tightening torque: 20± 2Nm (15± 1 ft-lb)
