Wireless Control Module (WCM)
Wireless Control Module (WCM)
CONSTRUCTION DIAGRAM

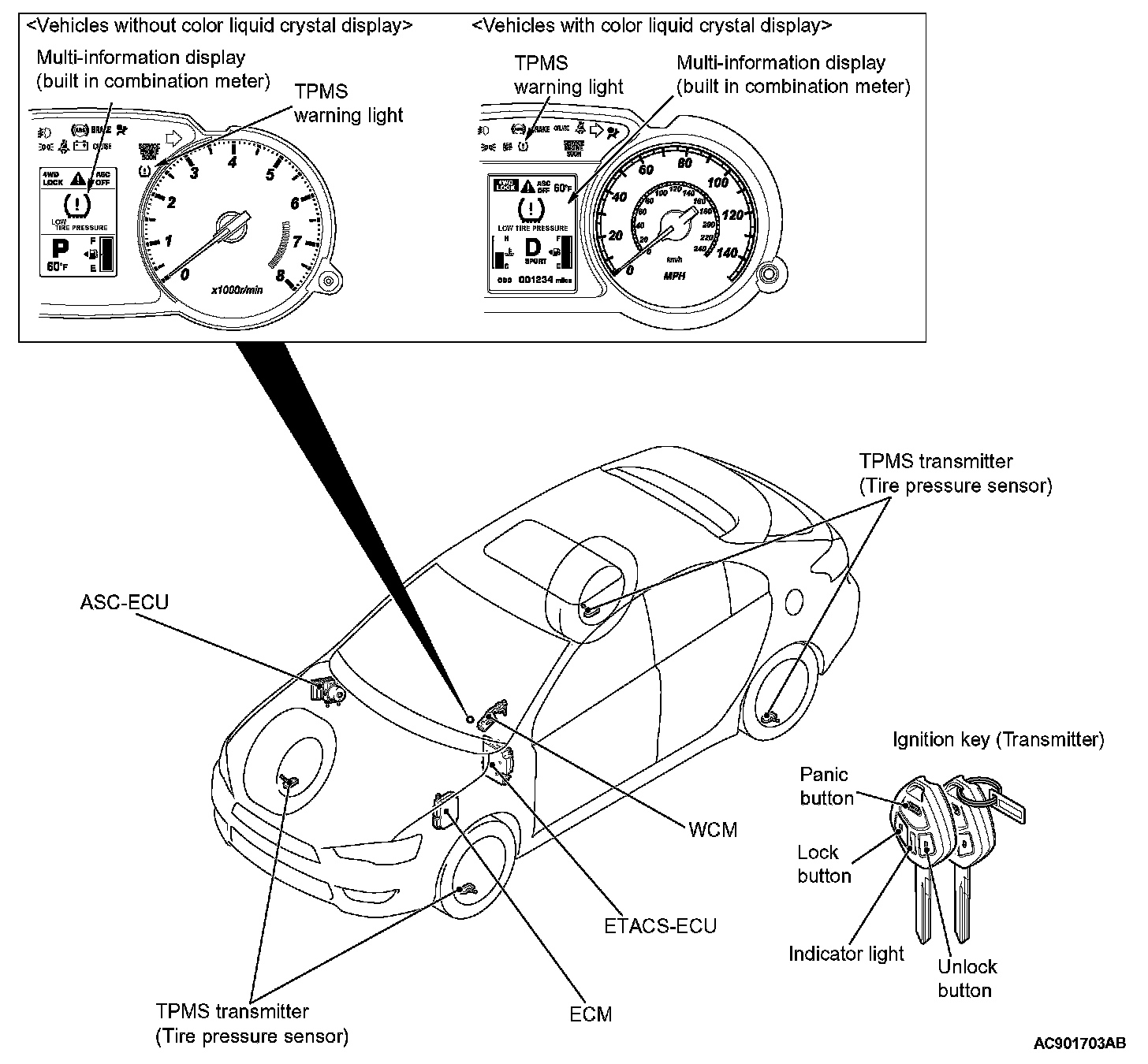

[LANCER]

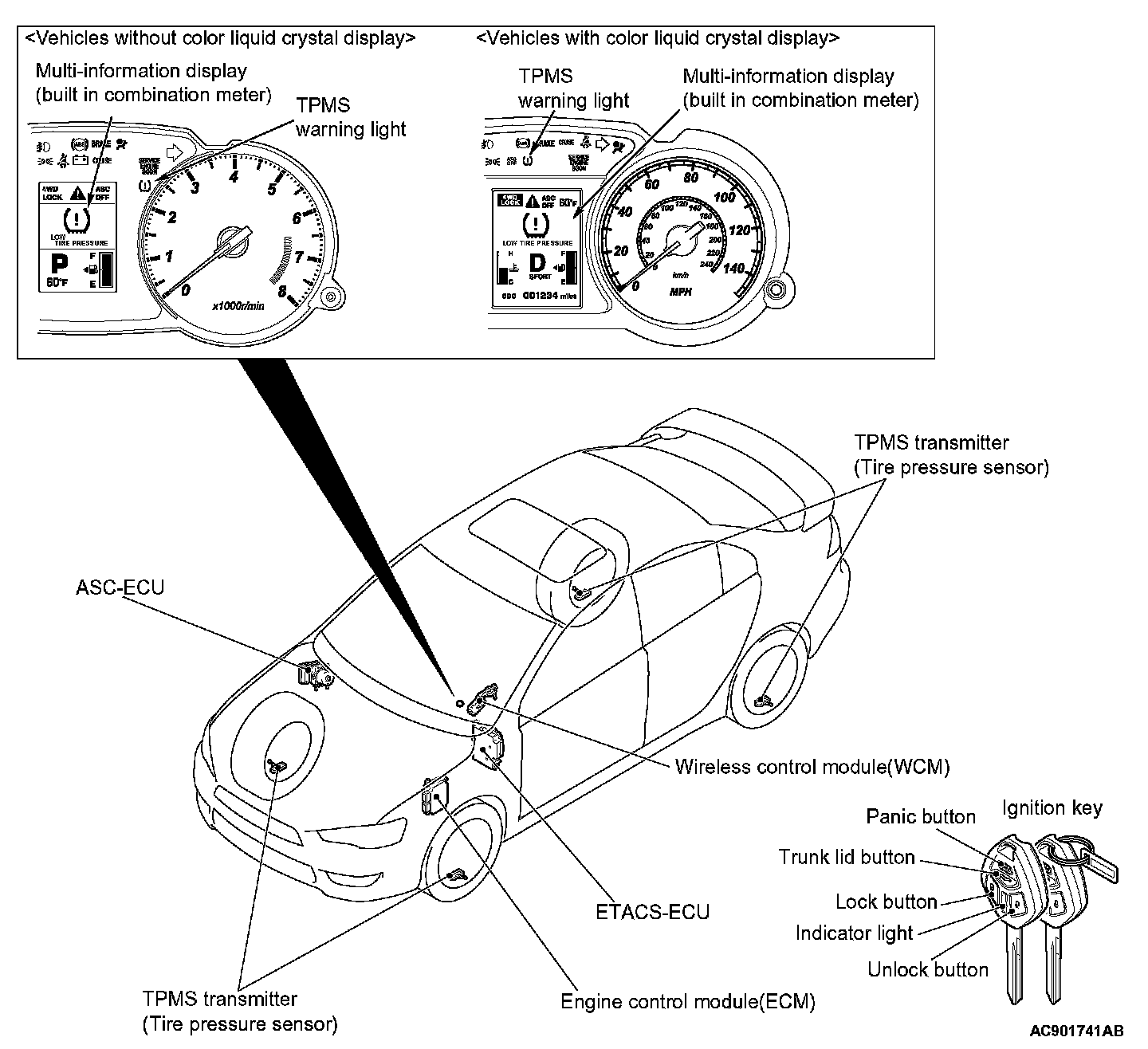

[LANCER SPORTBACK]
