Disassembly And Assembly <2.4L Engine>: Notes

CAUTION:

Be careful not to damage the ABS rotor, which is attached to the BJ outer race during disassembly and reassembly.
Never disassemble the BJ assembly except when replacing the BJ boot.

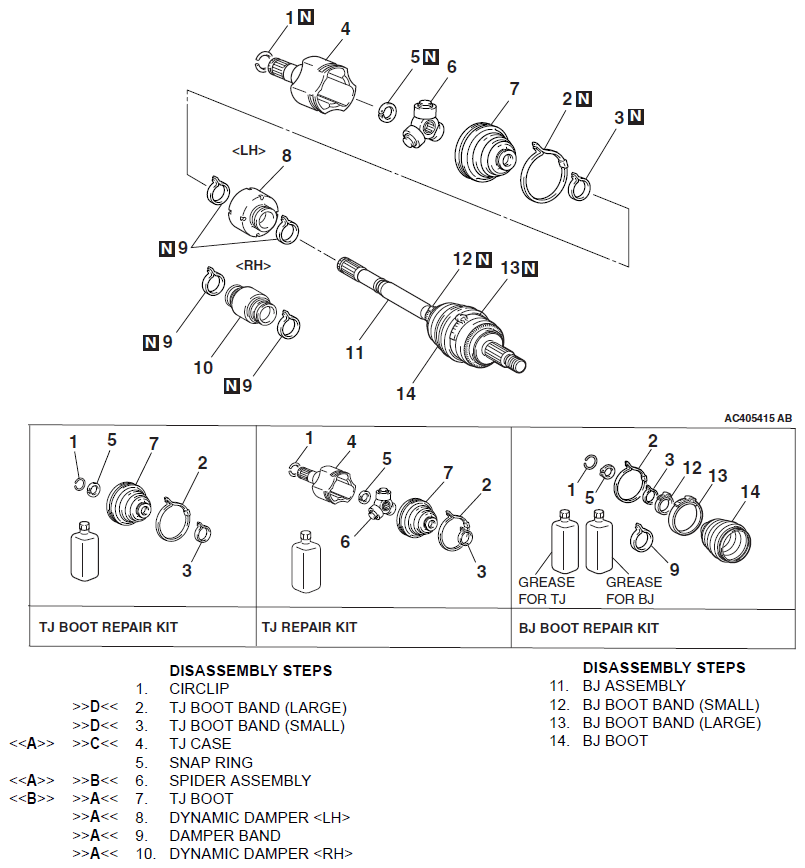

Fig 1: Disassembly/Assembly Of Driveshaft Assembly Components - 2.4L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: For BJ boot removal and installation, refer to BJ/EBJ BOOT REPLACEMENT .
