Removal And Installation: Notes

CAUTION:
  • Do not strike the ABS rotors installed to the BJ or EBJ outer race of driveshaft assembly against other parts when removing or installing the driveshaft assembly. Otherwise the ABS rotors will be damaged.
  • Be careful not to strike the pole piece at the tip of the front wheel speed sensor with tools during servicing work.

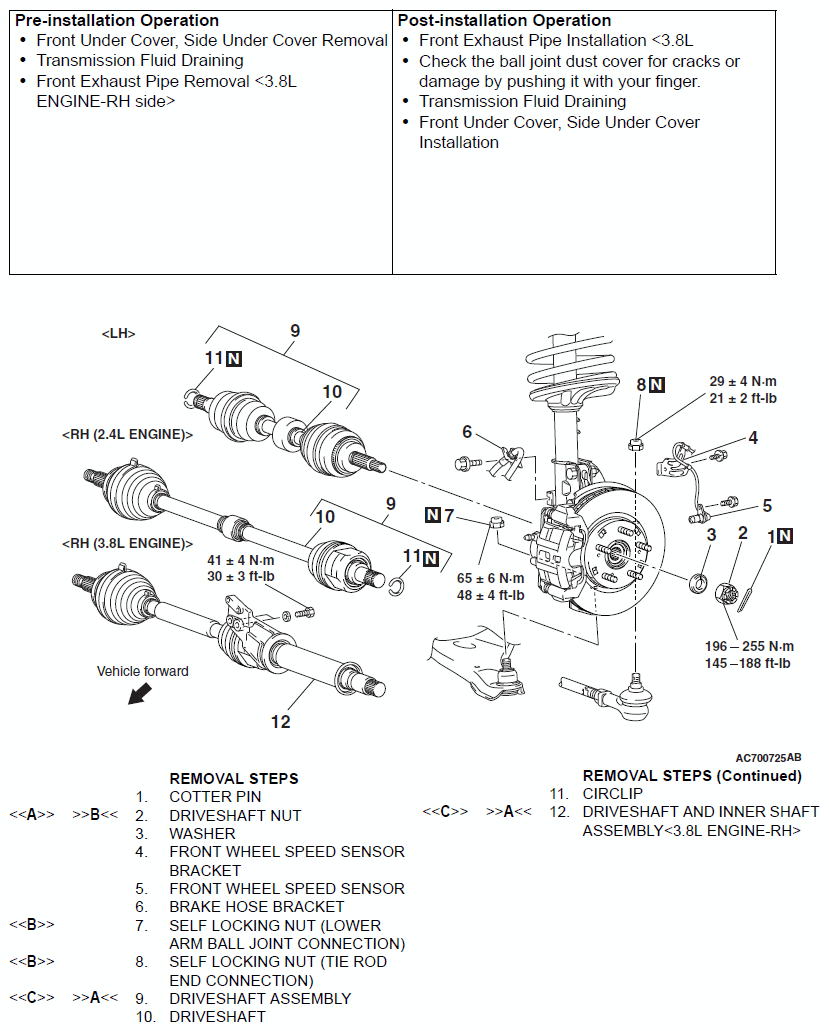

    Fig 1: Removal/Installation Ofentifying Driveshaft Assembly Components With Torque Specifications
    G06692113Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
