Eclipse GS, Automatic Trans
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior Trim
>>
Floor Console Assembly
>>
Removal And Installation
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Removal And Installation

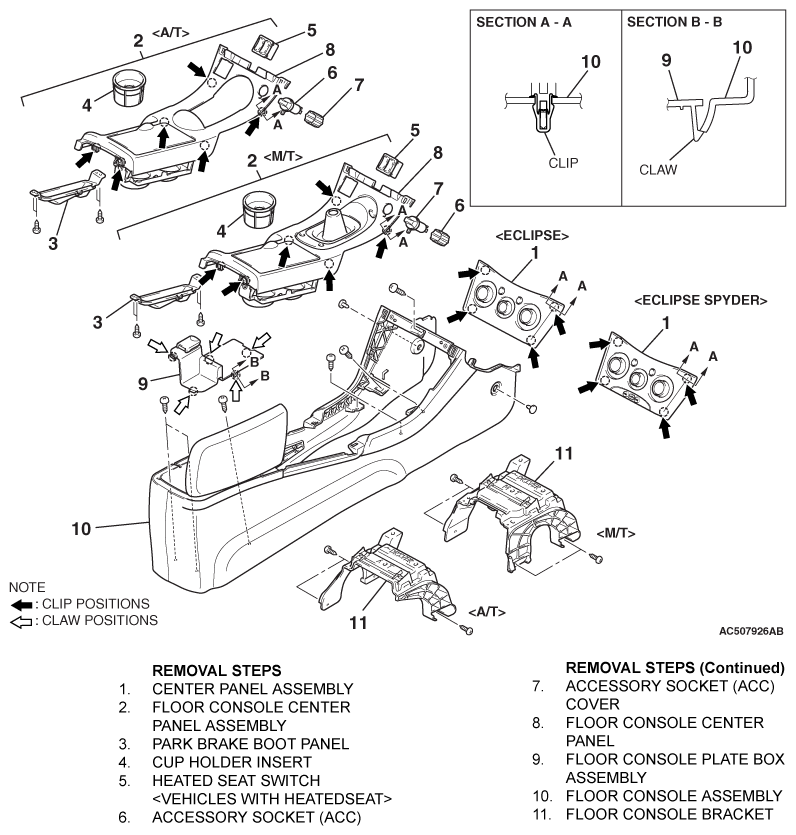

Fig 1: Identifying Floor Console Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
