Removal And Installation

WARNING: This page is about a different variant/trim than selected.

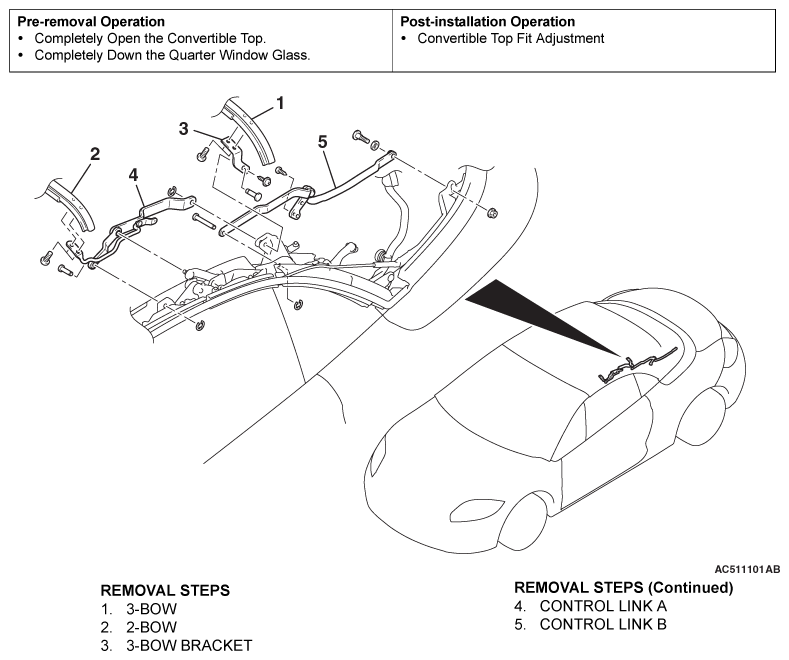

Fig 1: Removal/Installation Of Topstack Control Link Assembly
G06686645Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
