Disassembly And Assembly: Notes

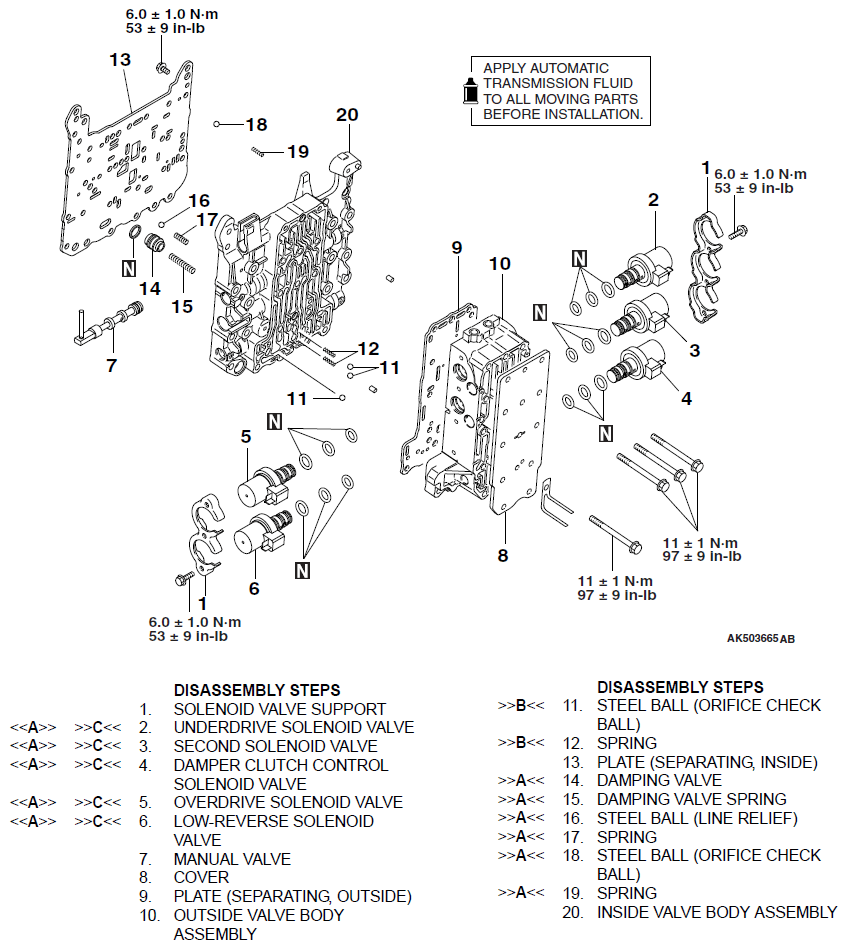

Fig 1: Disassembly/Assembly Of Valve Body Components With Torque Specification (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

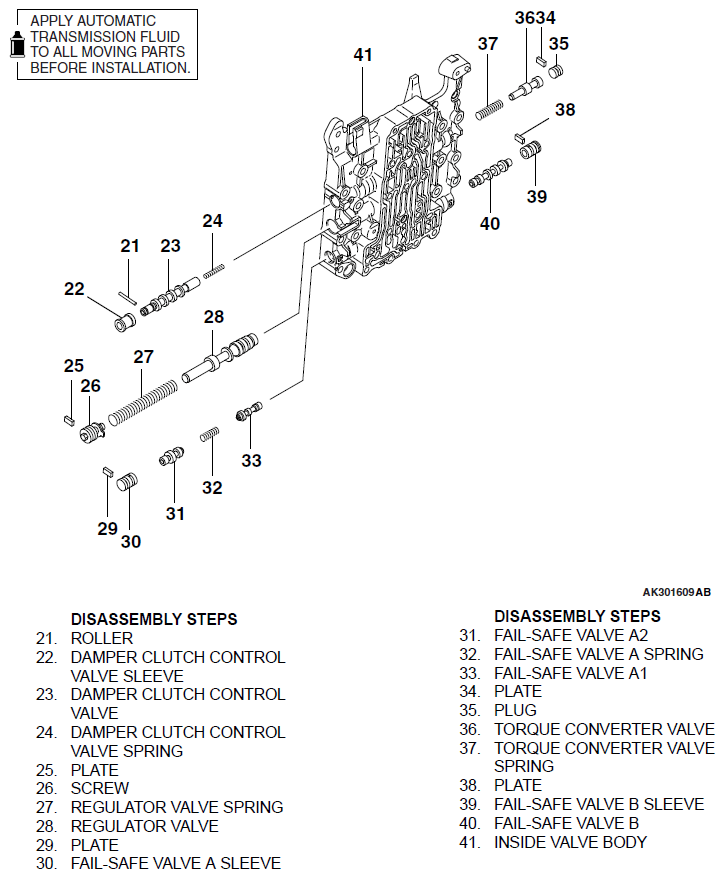

Fig 2: Disassembly/Assembly Of Identifying Valve Body Components With Torque Specification (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

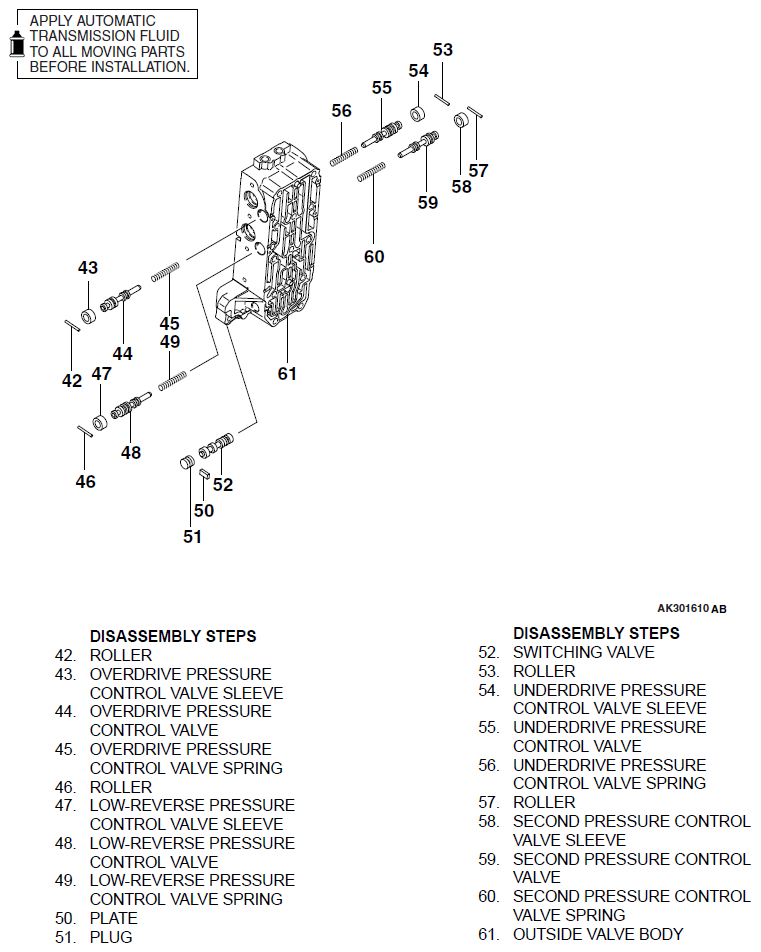

Fig 3: Disassembly/Assembly Of Valve Body Components With Torque Specification (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
