Fuel Pump Module

NOTE: For the removal and installation procedures, refer to the FUEL PUMP MODULE REPLACEMENT PROCEDURE  in On-Vehicle Service.

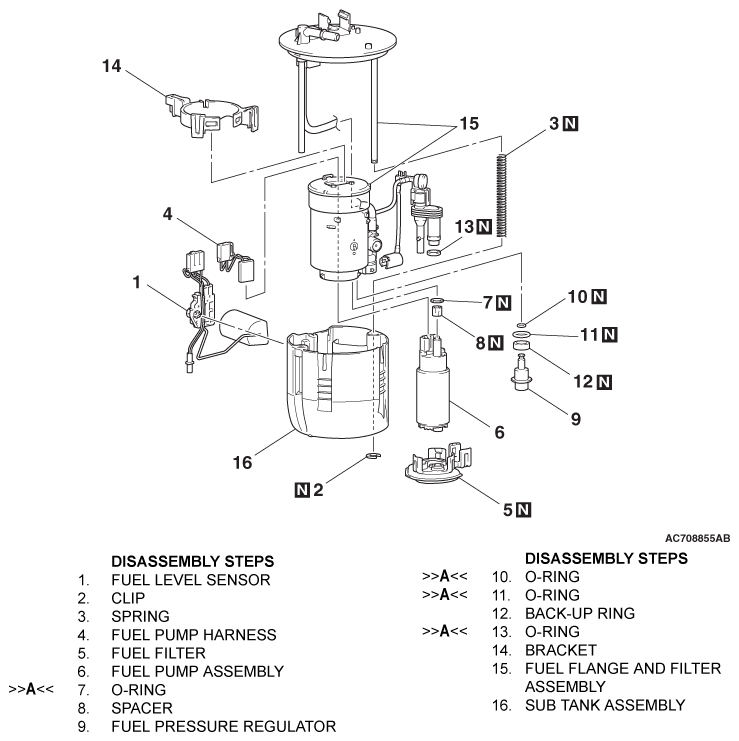

Fig 1: Exploded View Of Fuel Pump Module
G06717022Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
