PCM Connector End View

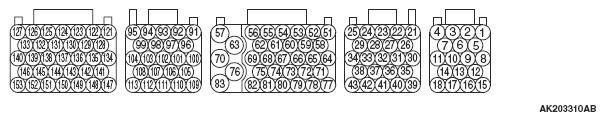

Fig 1: PCM Connector End View
G05099652Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

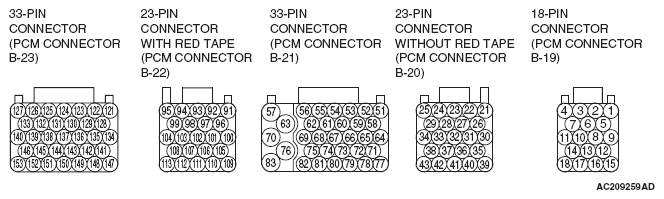

Fig 1: PCM Connector End View
G05102582Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
