INSPECTION PROCEDURE 1: Communication Between Scan Tool And The TCL/ASC-ECU Is Not Possible.: Notes

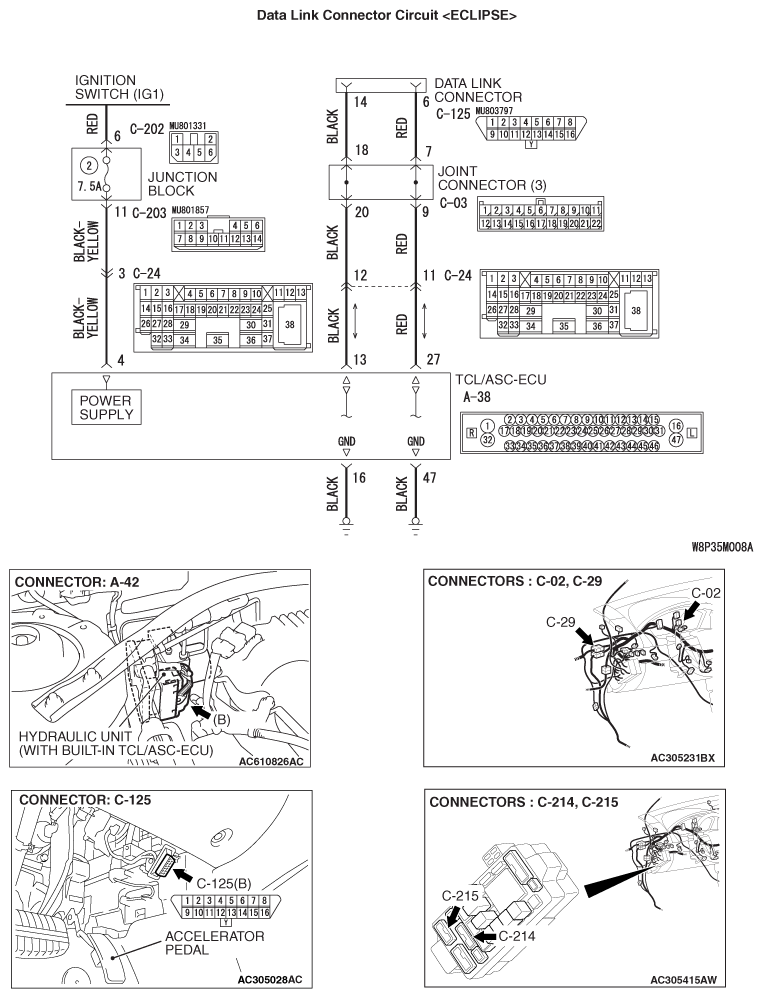

Fig 1: Data Link Connector Circuit (Eclipse)
G06710580Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
