Removal And Installation: Notes

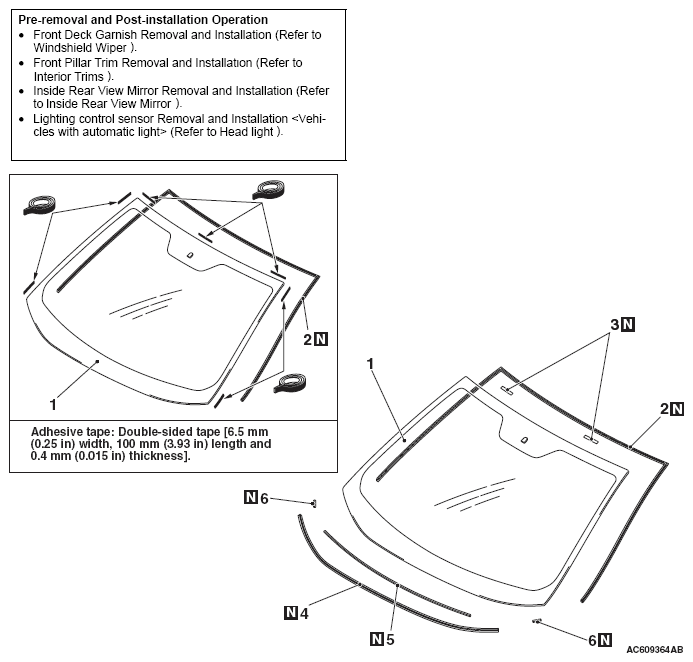

Fig 1: Applying Windshield Tape
G05394844Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

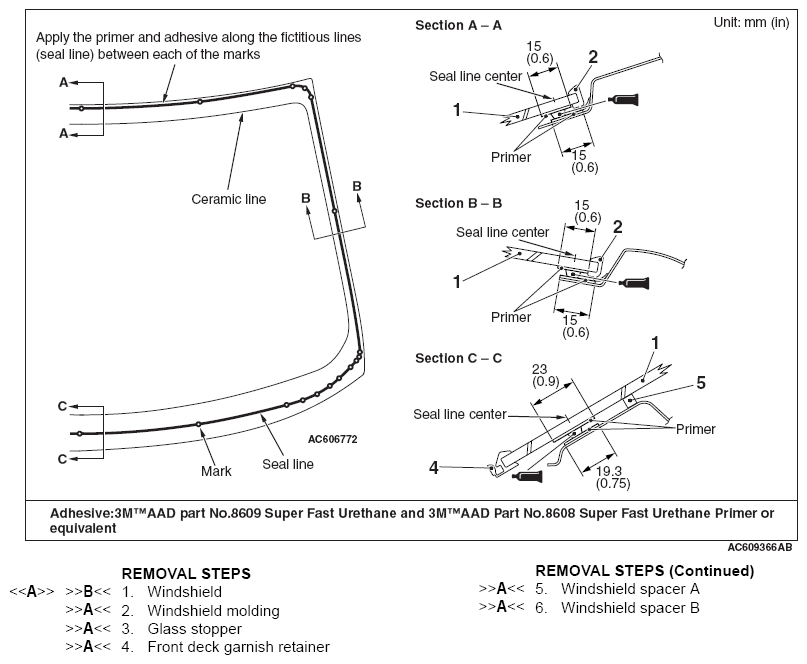

Fig 2: Applying Primer To Windshield
G06677820Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
