Disassembly And Assembly: Notes

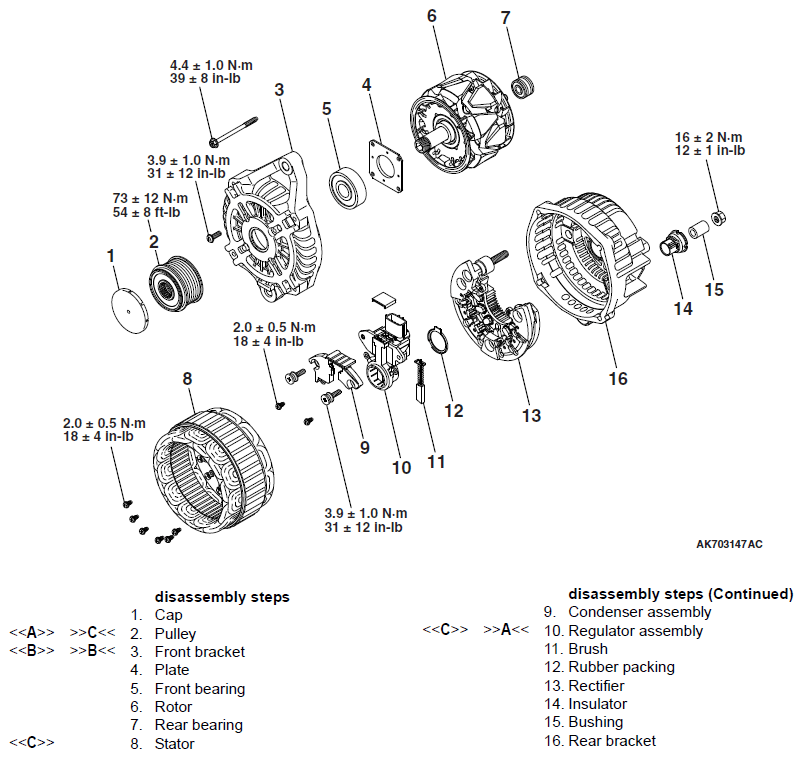

Fig 1: Exploded View Of Generator Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

• MB992226: Serration Socket
