Starter Relay Check

STARTER RELAY CHECK

Battery voltage Terminal No. to be connected to tester Continuity test result
Not applied 4 - 3 Open circuit
Connect terminal No. 2 and battery (+) terminal.
Connect terminal No. 1 and battery (-) terminal.		 Continuity (Less than 2 ohms)

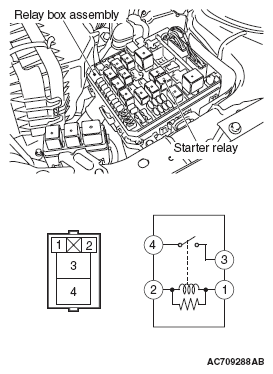

Fig 1: Identifying Starter Relay
G05393728Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
