Disassembly And Assembly: Notes

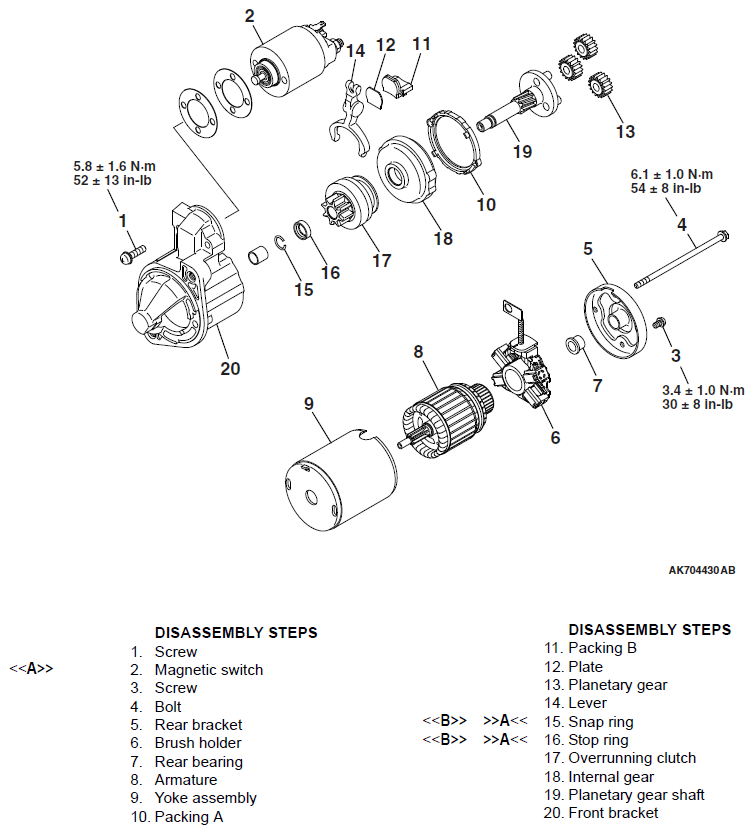

Fig 1: Starter Motor Replacement Components With Torque Specifications
G06676742Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
